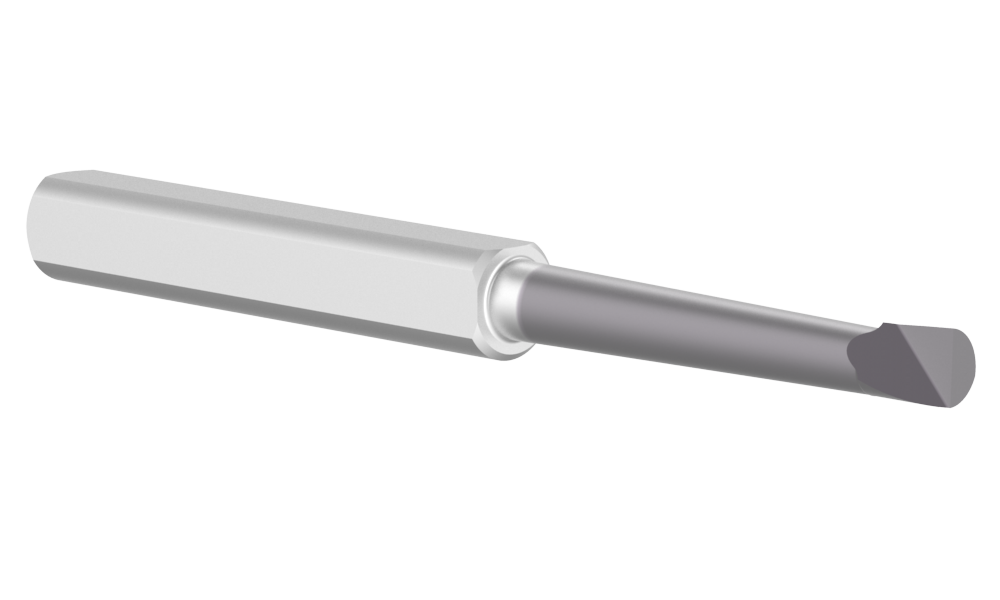

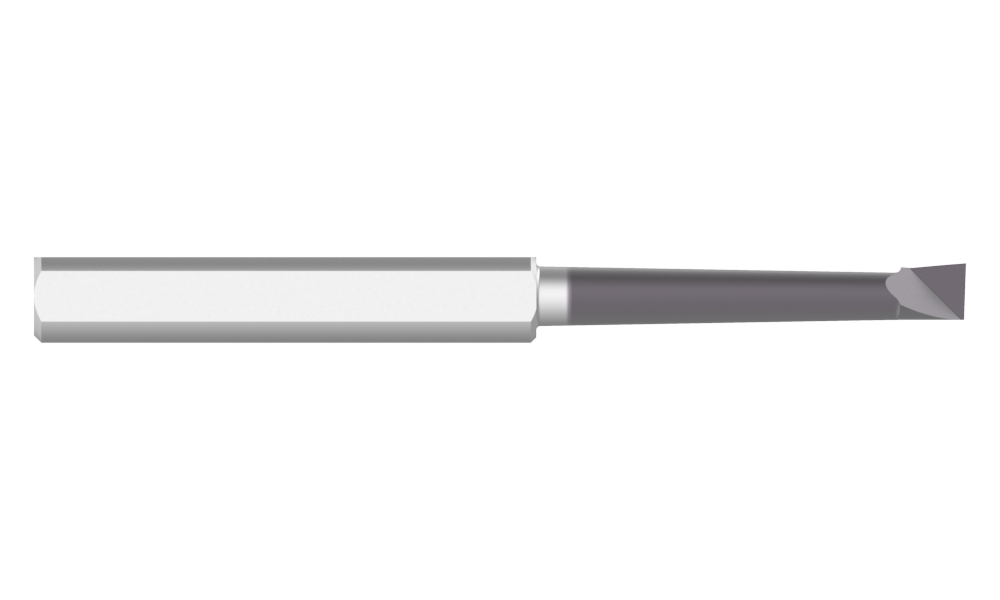

0180HA

0.180" COATED BAR, 0.250" SHNK

Criterion® Boring Bar

Product Specifications

Type of Product	Boring Bar
Material	Carbide
Max bore depth mm	28.58
Max bore depth inch	1.125
Minimum diameter inch	.180
Minimum diameter mm	4.57
Number of Flats	2
Overall length inch	2.500
Overall length mm	63.50
Shank diameter mm	6.35
Shank diameter inch	.250
Coating	TiAlN

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.054
Category	Stocked
