0437B
Criterion® Boring Bar: .437" Min Ø, Steel
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

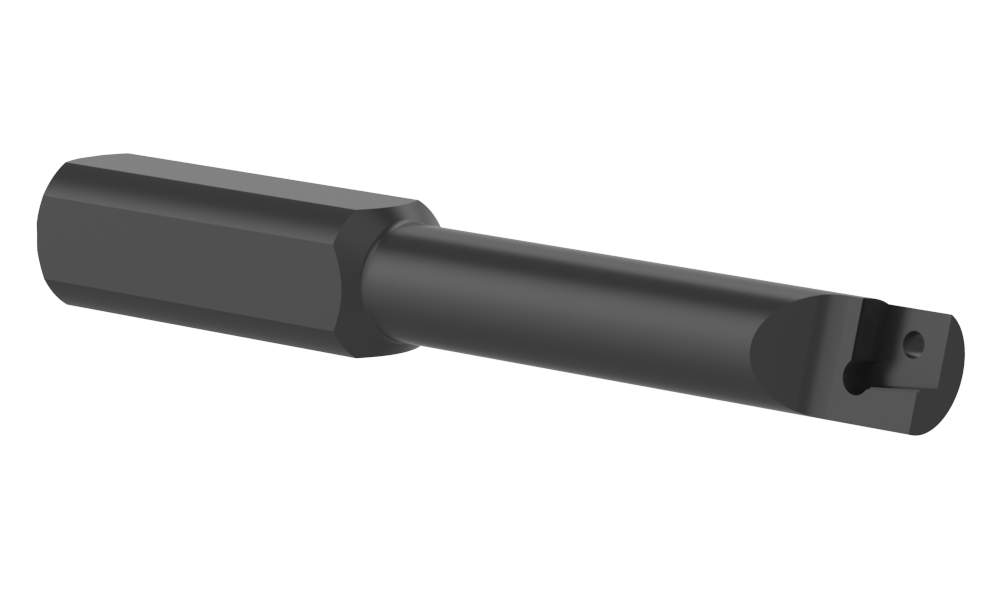

Angle

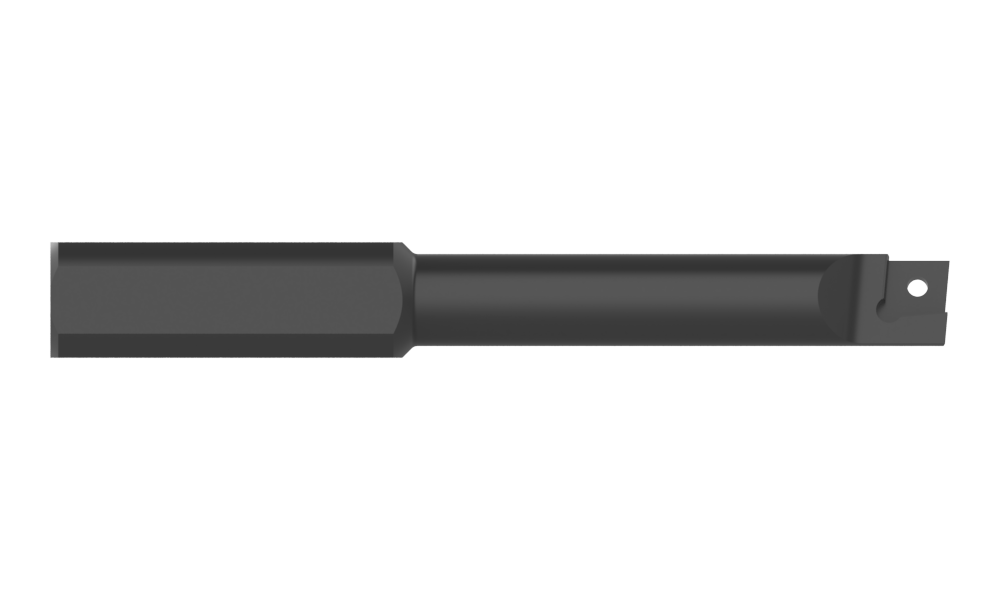

Side
Product Specifications
Type of Product Boring Bar
Style Steel
IC Size inch .250
Insert thickness inch .094
Material Steel
Max bore depth inch 2.062
Minimum diameter inch .437
Number of Flats 4
Overall length inch 3.375
Shank diameter inch .500
Shape CC
Width across flats inch .437
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.111
Weight in kg (each) 0.05
Category Stocked
