0500D

0.500" BAR, 0.750" SHANK, CC

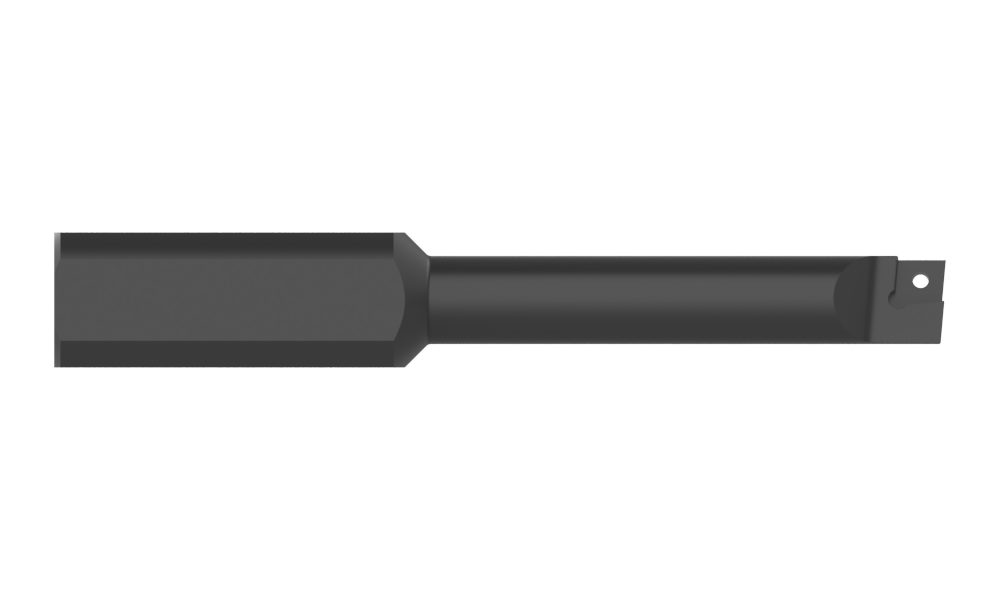

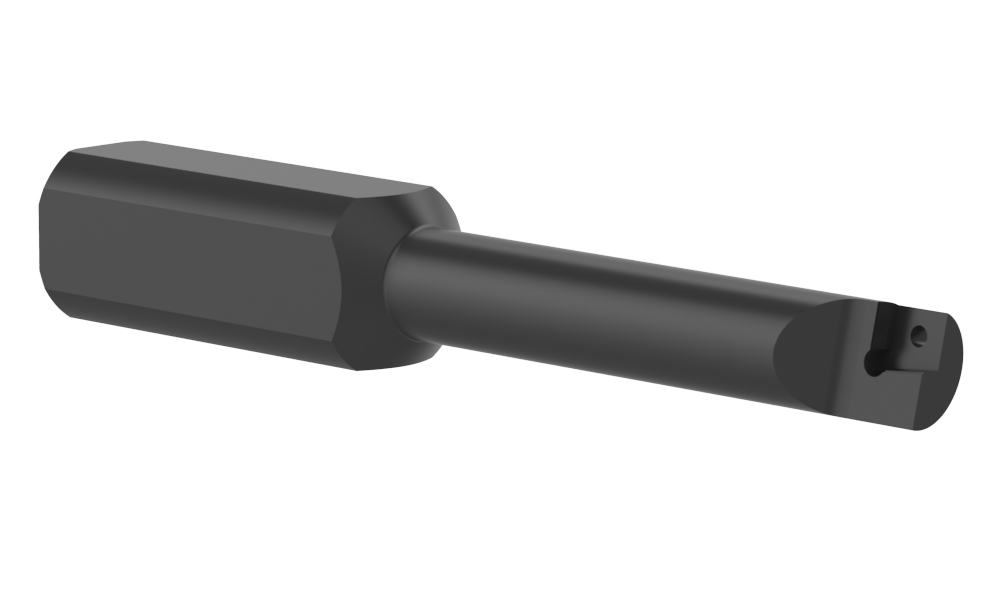

Criterion® Boring Bar

Product Specifications

Type of Product	Boring Bar
Style	Steel
IC Size inch	.250
Insert thickness inch	.094
Material	Steel
Max bore depth inch	2.500
Minimum diameter inch	.500
Number of Flats	4
Overall length inch	4.250
Shank diameter inch	.750
Shape	CC
Width across flats inch	.641

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.26
Category	Stocked
