081041

F101 FROM 15MM X=60MM 92°

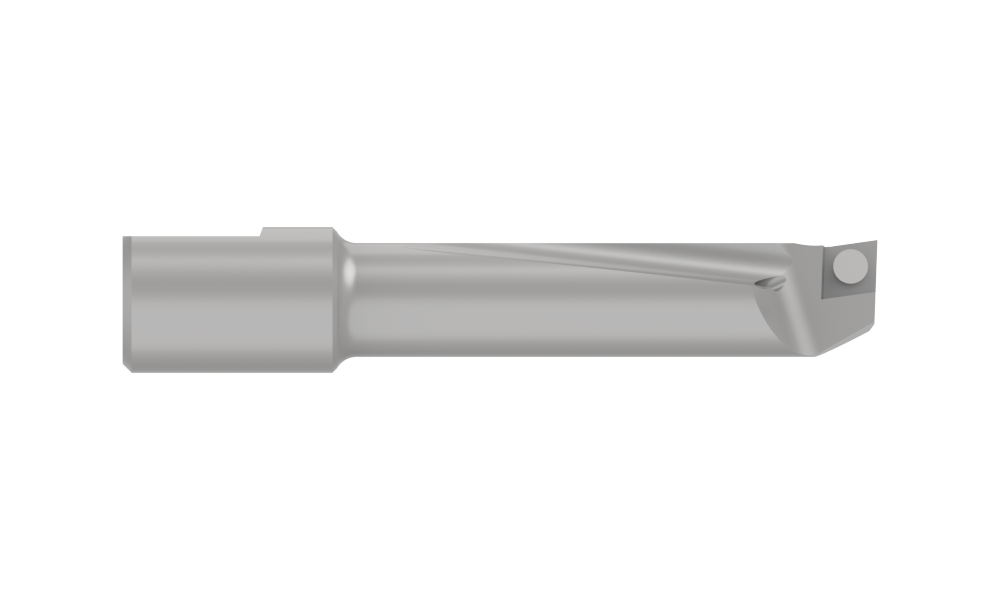

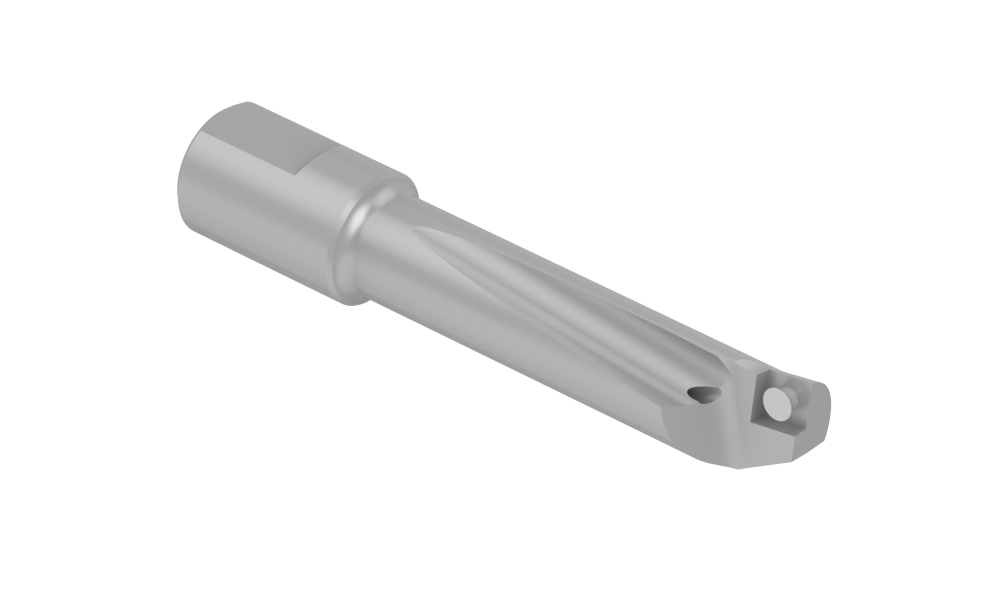

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 101
IC Size mm	6.35
IC Size inch	0.25
Insert thickness mm	2.38
Insert thickness inch	0.094
Max bore depth mm	60
Max bore depth inch	2.362
Minimum diameter mm	15
Minimum diameter inch	0.591
Number of Flats	1
Overall length mm	83
Overall length inch	3.268
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.176
Category	Stocked
