081042

F101 FROM 20MM X=70MM 92°

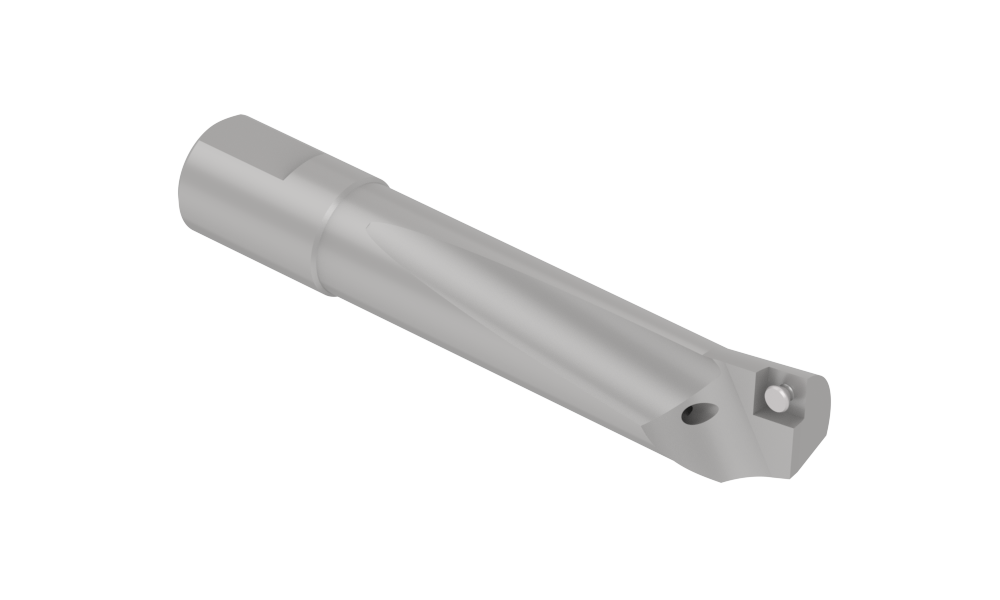

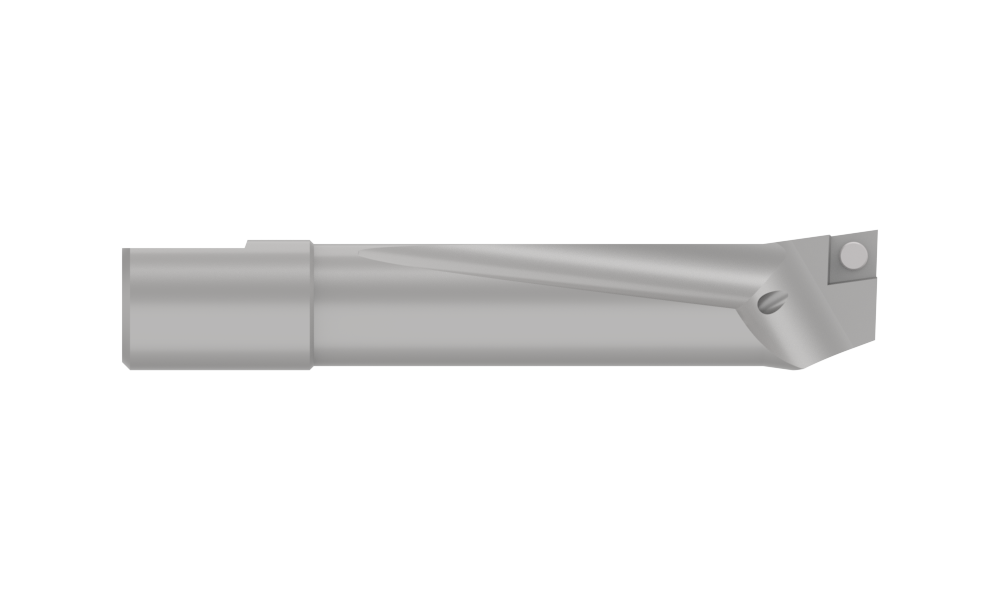

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 101
IC Size mm	6.35
IC Size inch	0.25
Insert thickness mm	2.38
Insert thickness inch	0.094
Max bore depth mm	70
Max bore depth inch	2.756
Minimum diameter mm	20
Minimum diameter inch	0.787
Number of Flats	1
Overall length mm	93
Overall length inch	3.661
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.243
Category	Stocked
