081048

F20 FROM 15MM X=37MM 92

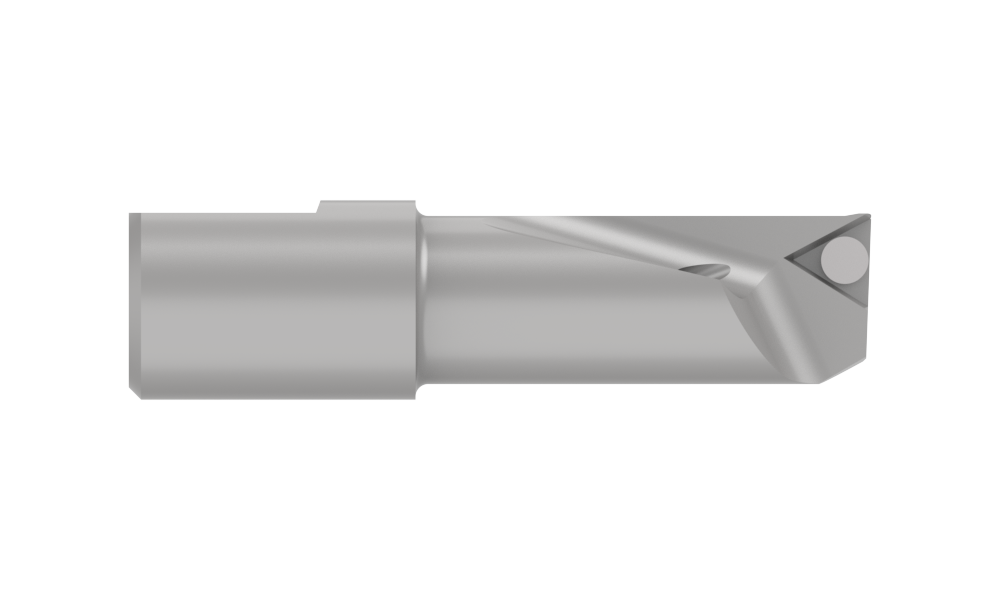

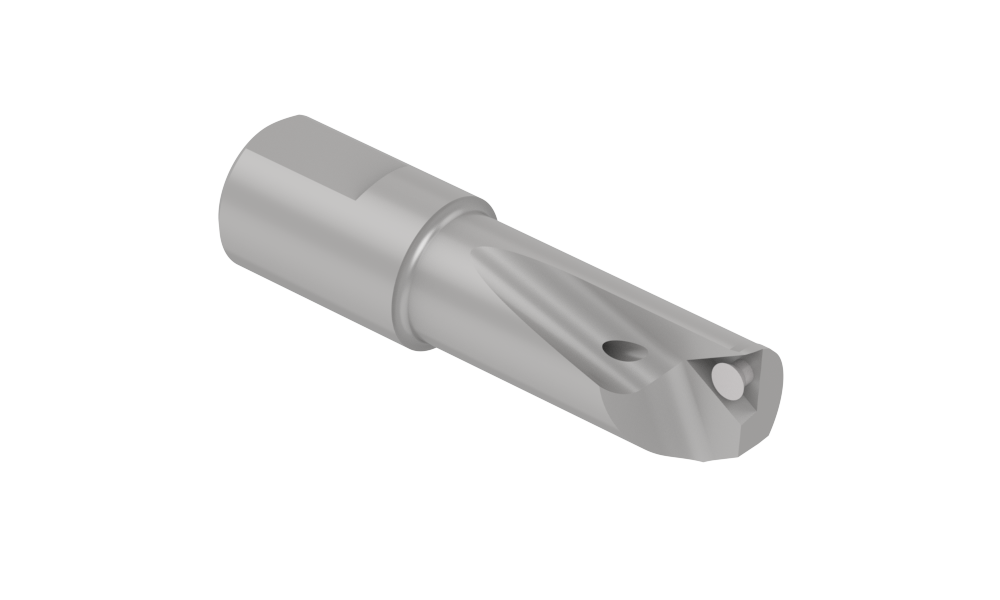

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Indexable Boring Bar
Material	Steel
Form Type	Form 20
IC Size mm	5
IC Size inch	0.197
Insert thickness mm	2.38
Insert thickness inch	0.094
Max bore depth mm	37
Max bore depth inch	1.457
Minimum diameter mm	15
Minimum diameter inch	0.591
Number of Flats	1
Overall length mm	60
Overall length inch	2.362
Shank diameter mm	16

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.121
Category	Stocked
