081405WHC126

CBD BAR 1.5MMØ X=31.5MM WHC126

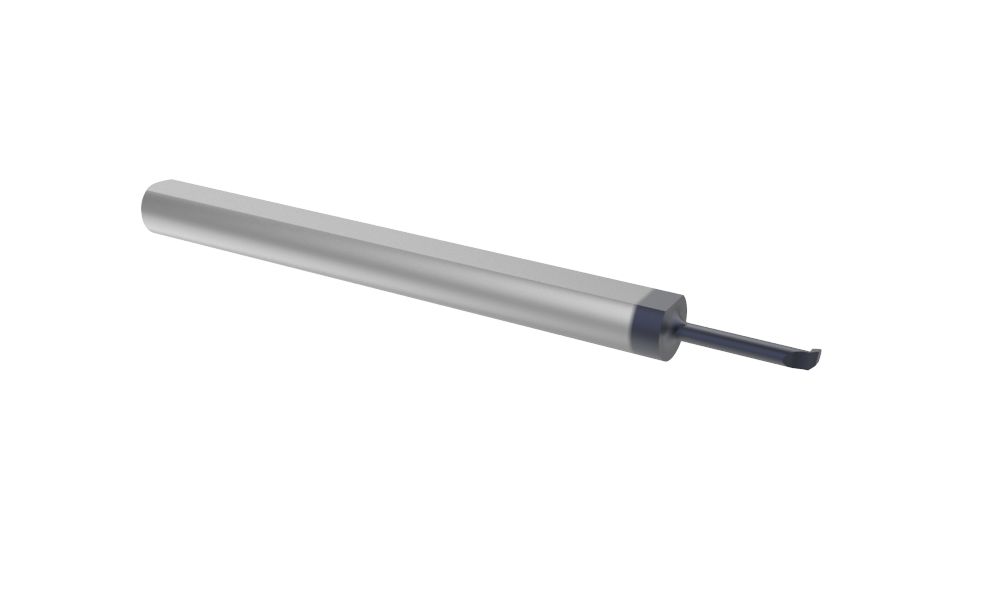

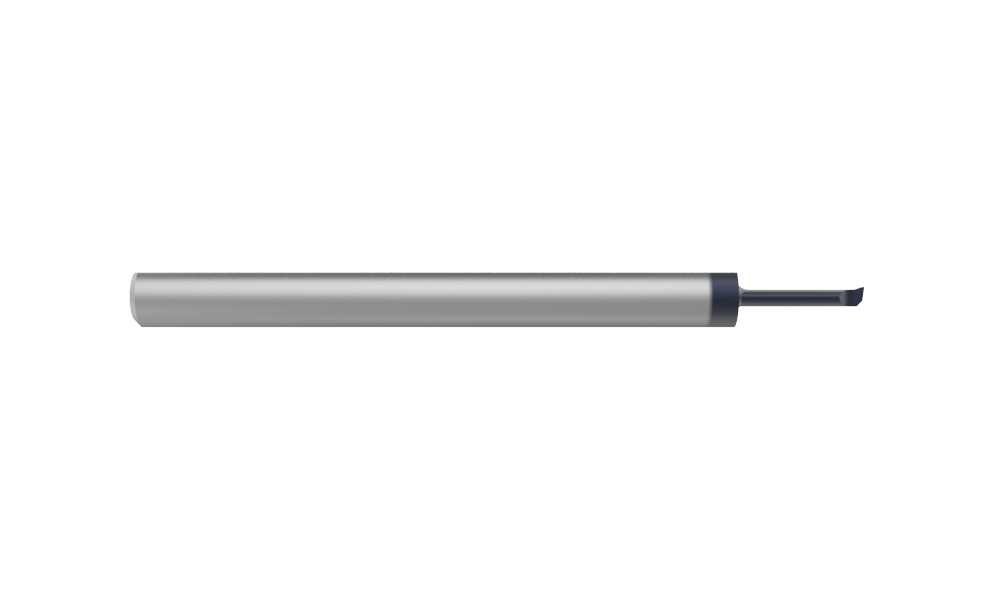

Wohlhaupter® Boring Bar

Product Specifications

Type of Product	Solid Bar
Material	Carbide
Max bore depth mm	7.50
Max bore depth inch	0.295
Minimum diameter mm	1.50
Minimum diameter inch	0.059
Number of Flats	1
Overall length mm	47.50
Overall length inch	1.87
Shank diameter mm	4.00
Shank diameter inch	0.157
Coating	Yes

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.022
Category	Stocked
