0832DHM
Criterion® Boring Bar: .832" Min Ø, Heavy Metal
Criterion® Boring Bar

Add to cart image Add to list image







Default Image

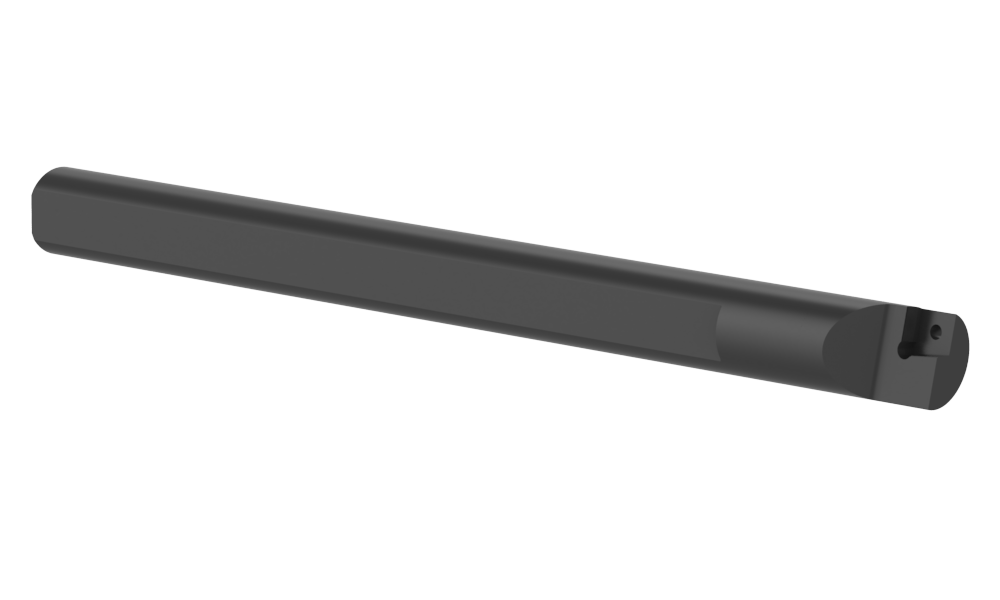

Angle

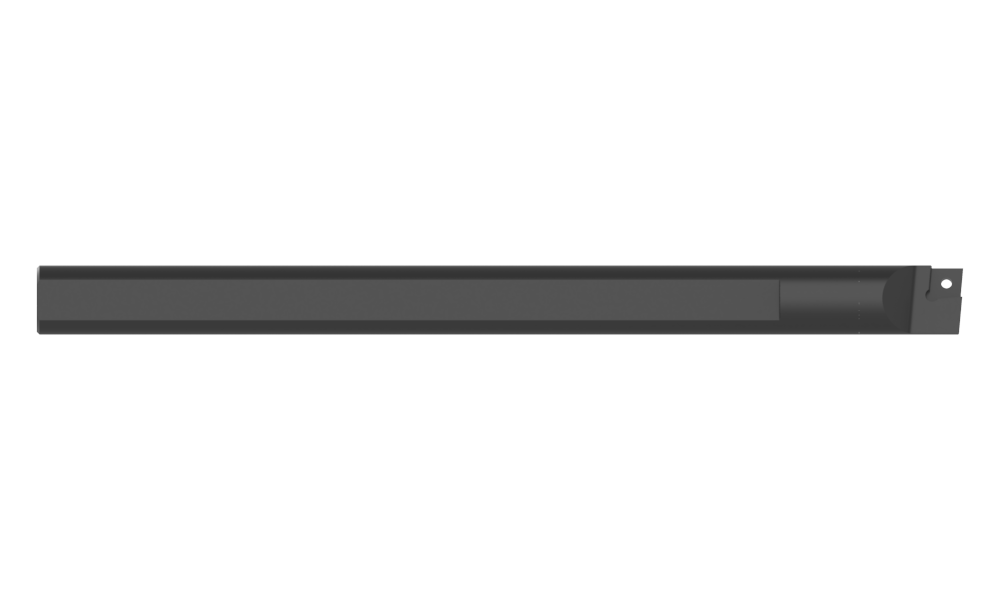

Side
Product Specifications
Type of Product Boring Bar
Style Steel / Heavy Metal
IC Size (inch) .375
Insert Thickness (inch) .156
Material Heavy Metal
Max Bore Depth (inch) 4.750
Minimum Diameter (inch) .832
Number of Flats 1
Overall Length (inch) 10.0
Shank Diameter (inch) .750
Shape CC
Width across Flats (inch) .680
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.126
Weight in kg (each) 0.97
Category Stocked
