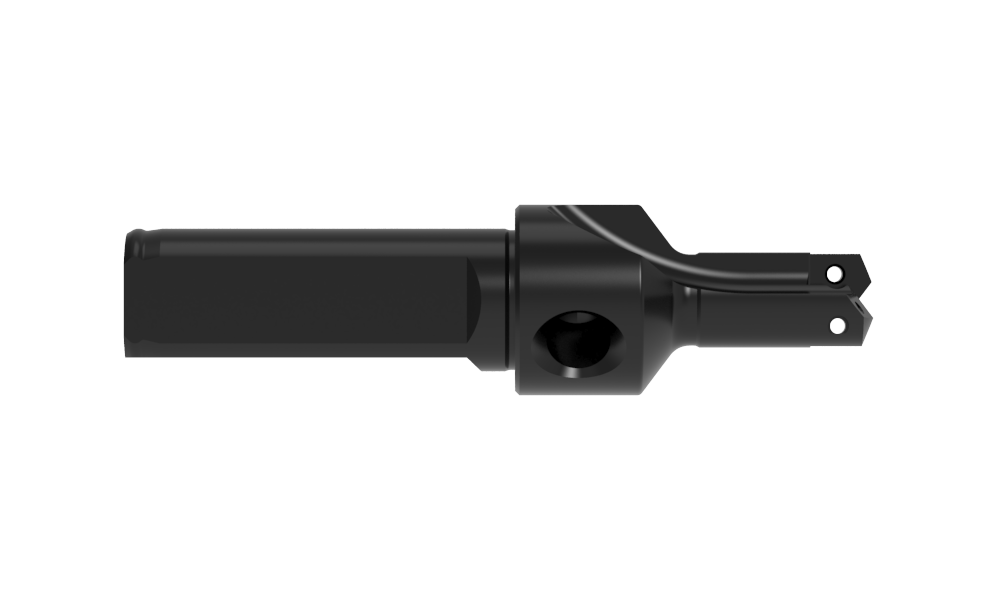

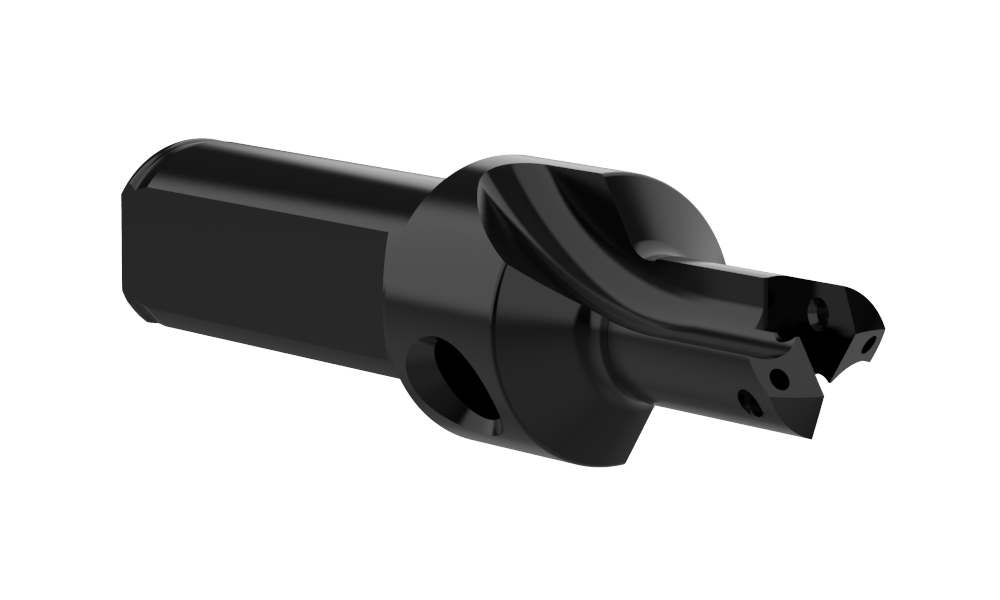

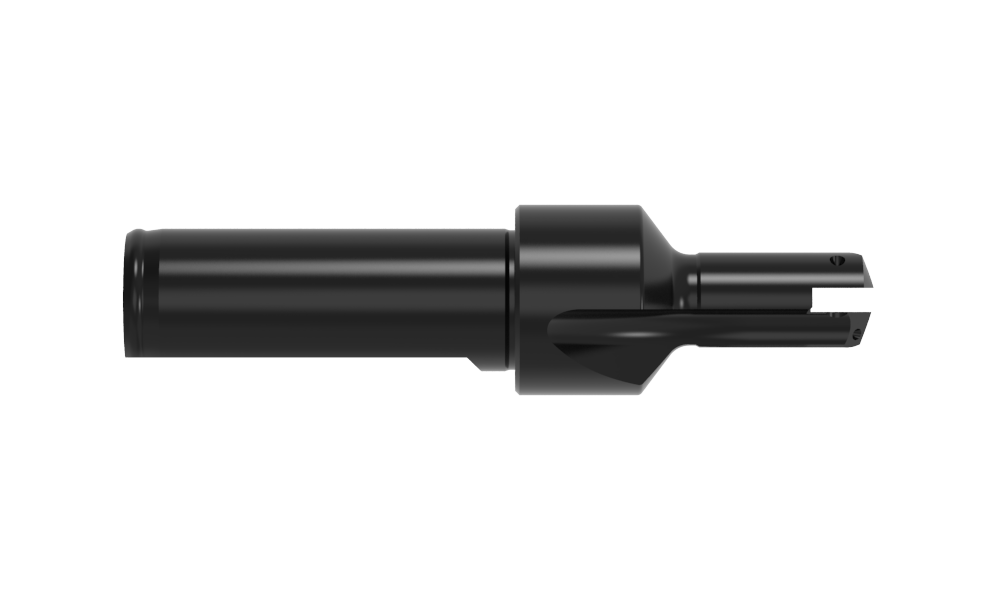

21000S-075F
#0 T-A STUB LENGTH HOLDER
T-A® Holder






Product Specifications
Series0
Minimum diameter inch0.5110
Maximum diameter inch0.6959
Length TypeStub
Flute TypeStraight
Overall length inch3.905
Tool Reference Length inch1.982
Body length inch1.875
Drill depth inch0.910
Shank typeFlanged
Shank diameter inch3/4
Shank length inch2.030
Pipe tap rear inch1/8 NPT
Pipe tap side inch1/8 NPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.41
CategoryStocked
