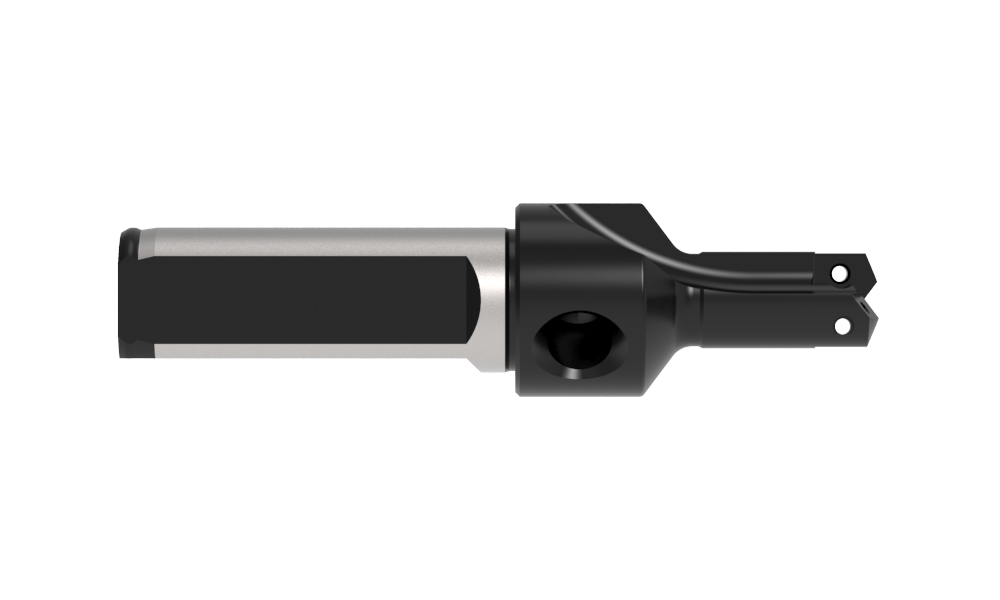

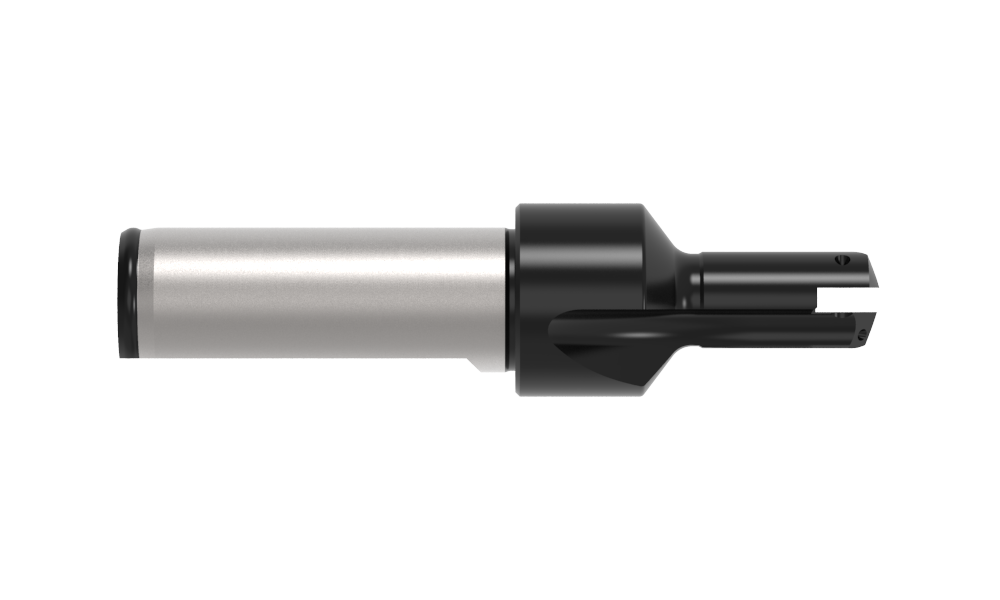

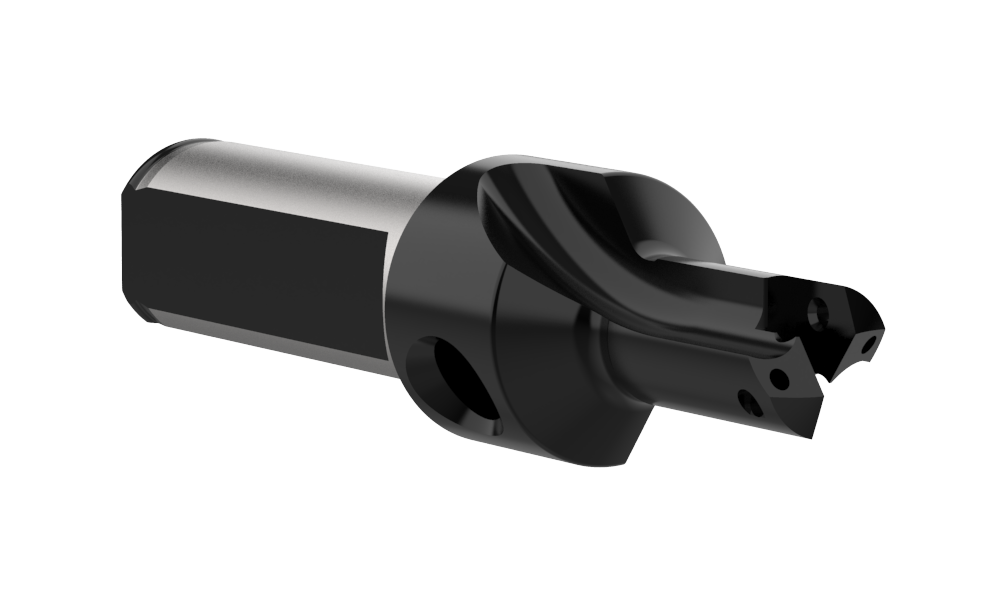

21000S-20FM
#0 METRIC TA STUB LENGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
Series0
Minimum diameter mm12.98
Maximum diameter mm17.67
Length TypeStub
Flute TypeStraight
Overall length mm97.64
Tool Reference Length mm50.34
Body length mm47.63
Drill depth mm23.11
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.43
CategoryStocked
