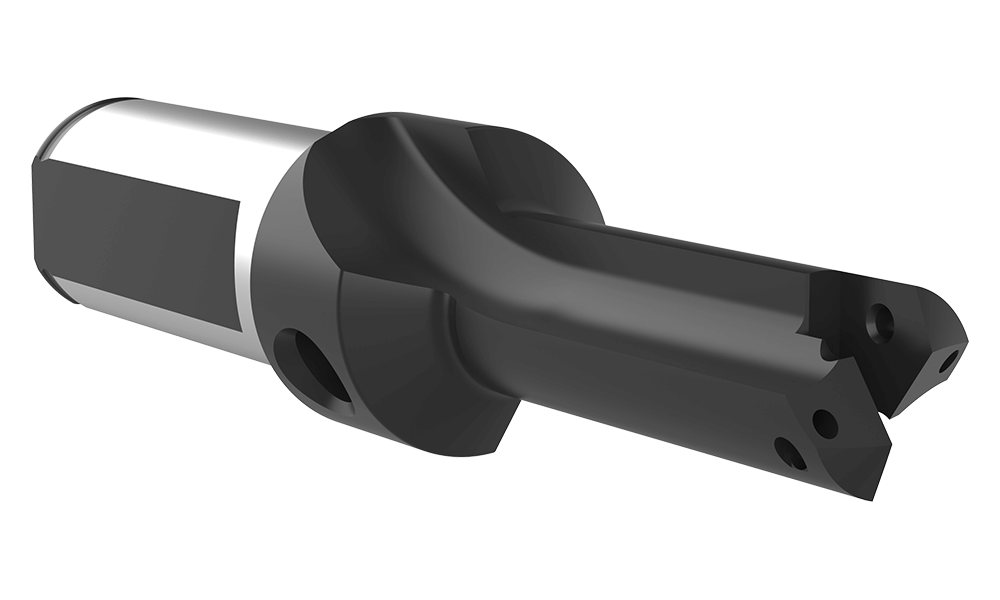

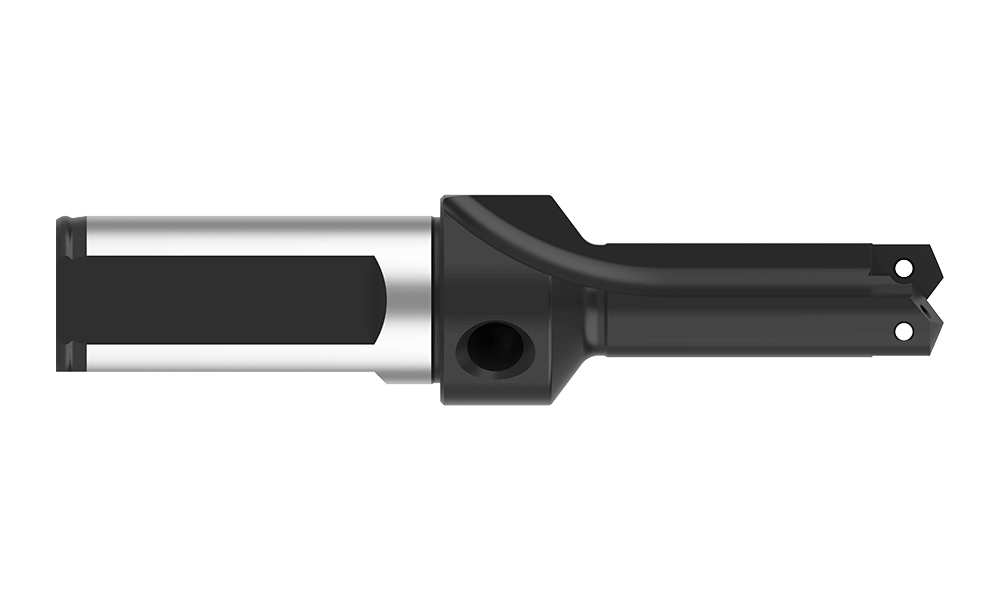

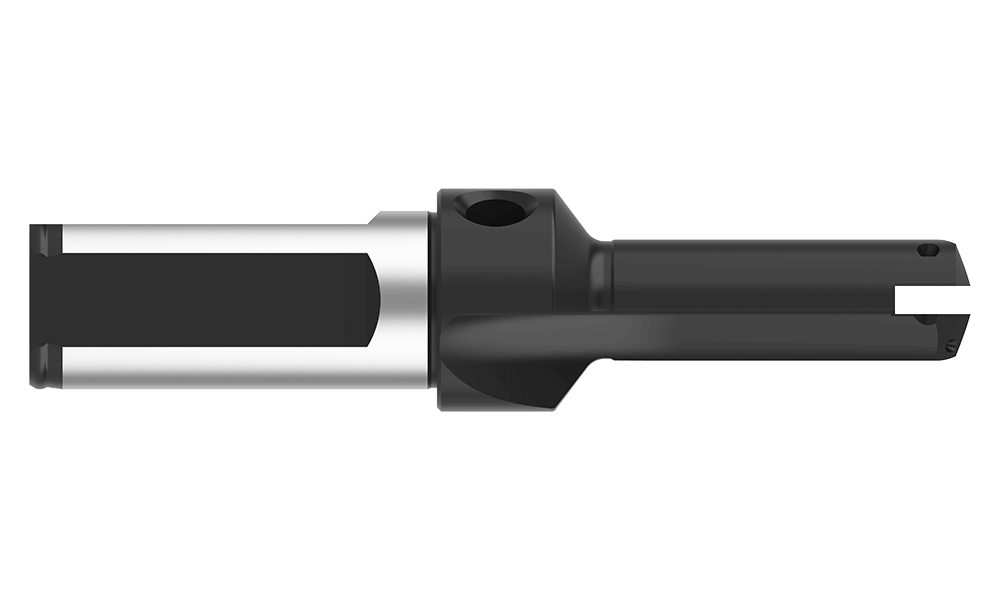

21010S-25FM
#1 METRIC TA STUB LENGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Minimum diameter mm17.53
Maximum diameter mm24.40
Length TypeStub
Flute TypeStraight
Overall length mm131.80
Tool Reference Length mm79.35
Body length mm75.79
Drill depth mm50.60
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.8
CategoryStocked
