21015S-25FM
T-A® Replaceable Drill Body: 21.83 mm - 24.40 mm, Stub, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

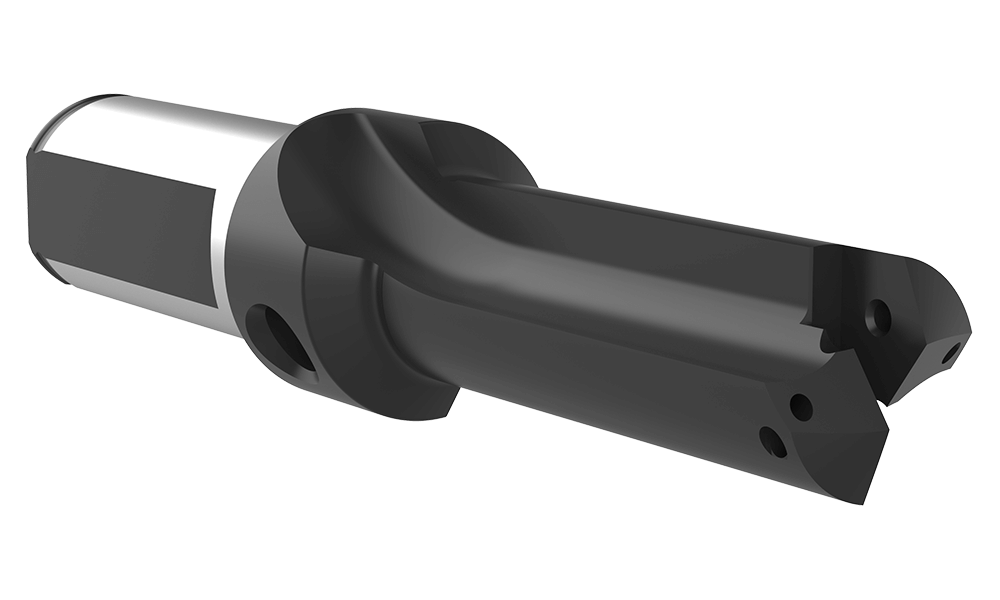

Angle

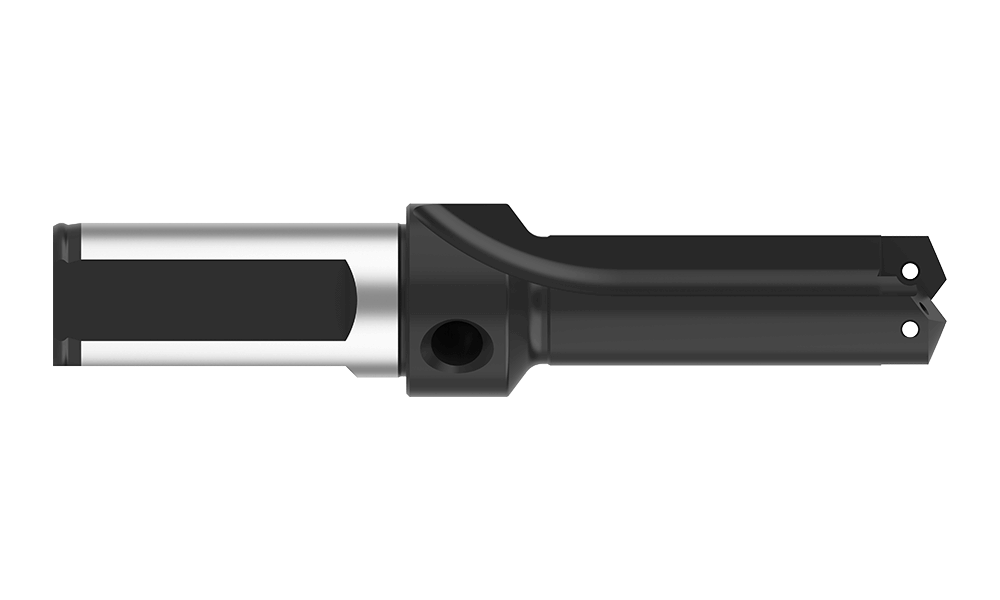

Front

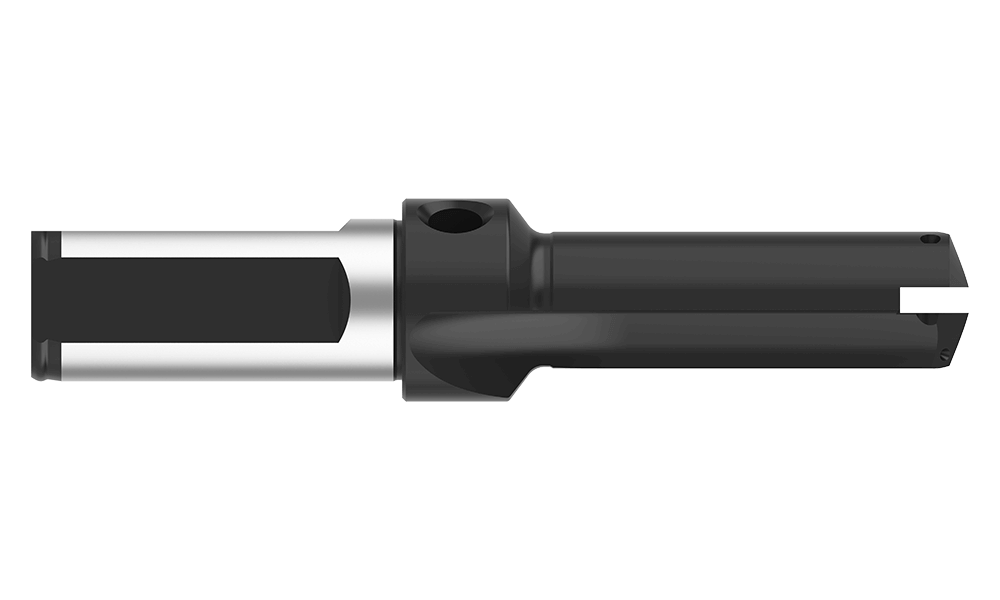

Side
Product Specifications
Series 1
Sub-Series .5
Minimum diameter mm 21.83
Maximum diameter mm 24.40
Length Type Stub
Flute Type Straight
Overall length mm 144.5
Tool Reference Length mm 92.0
Body length mm 88.5
Drill depth mm 64.9
Shank type Flanged
Shank diameter mm 25
Shank length mm 56.0
Pipe tap rear inch 1/8
Pipe tap rear mm 1/8 BSPT
Pipe tap side inch 1/8
Pipe tap side mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement T-A® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.94
Weight in kg (each) 0.43
Category Stocked
