21025S-125F

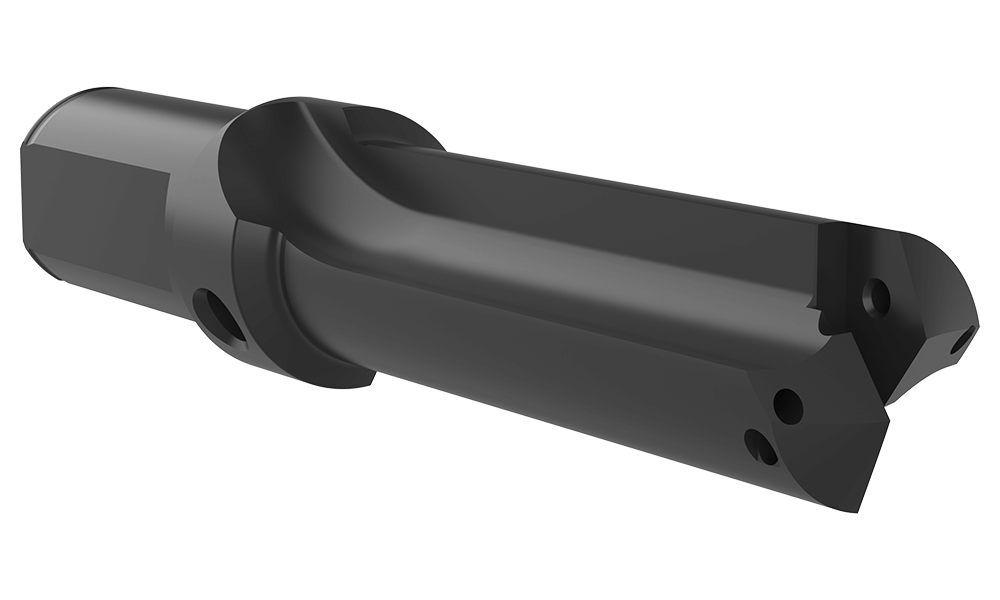

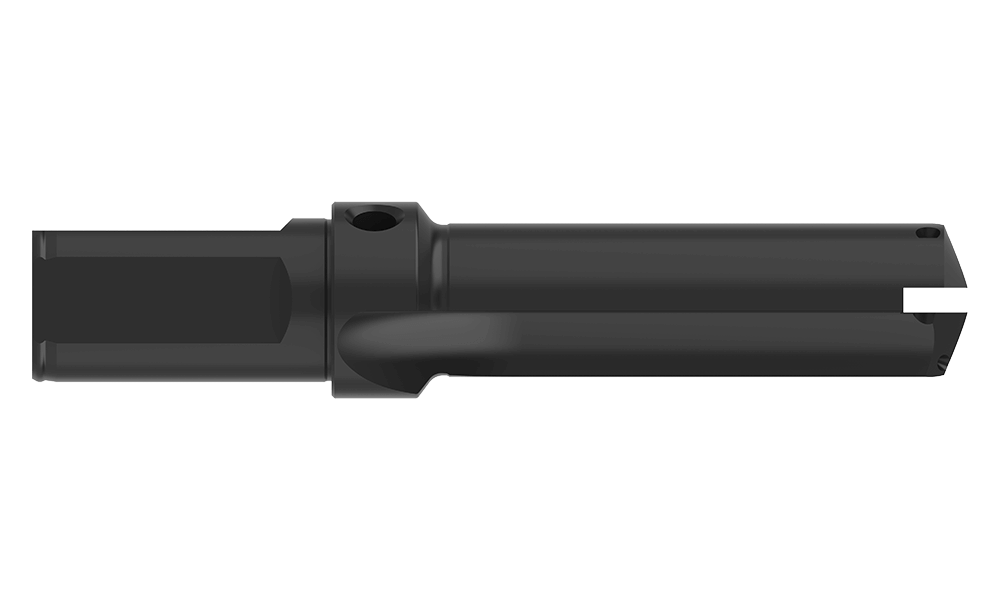

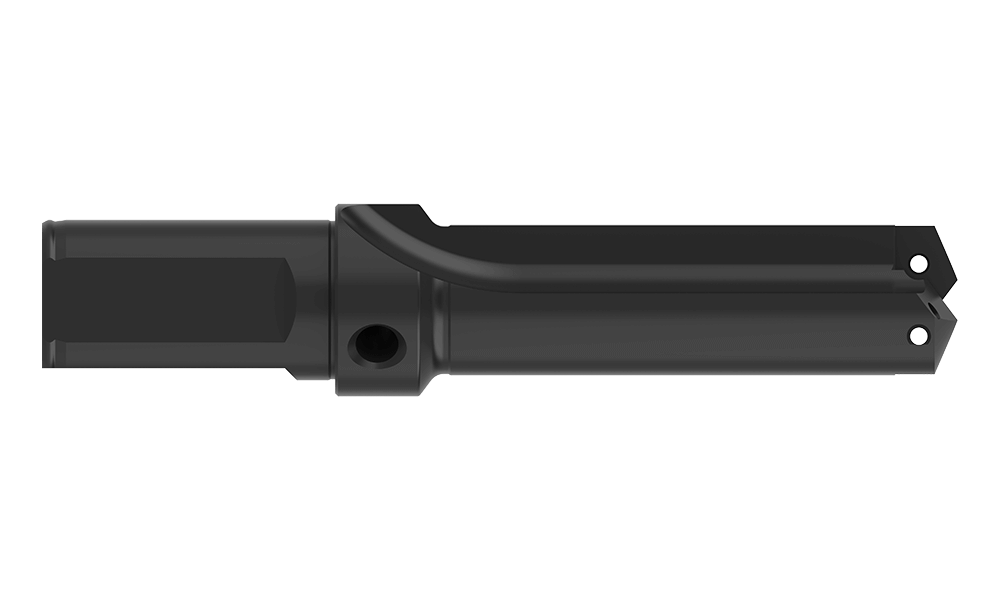

#2.5 T-A STUB LENGTH HOLDER

T-A® Holder

Siehe zusätzliche technische Daten

Produktspezifikationen

Series	2
Sub-Series	.5
Minimum diameter inch	1.1875
Maximum diameter inch	1.3809
Length Type	Stub
Flute Type	Straight
Overall length inch	7.139
Tool Reference Length inch	4.999
Body length inch	4.859
Drill depth inch	3.959
Shank type	Flanged
Shank diameter inch	1-1/4
Shank length inch	2.280
Pipe tap rear inch	1/4 NPT
Pipe tap side inch	1/8 NPT
Deep Hole Guidelines	No
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Bestellinformationen

Packmenge	1
Mindestbestellmenge	1
Jeweiliges Gewicht in Pfund (lbs)	1,87
Kategorie	lagernd
