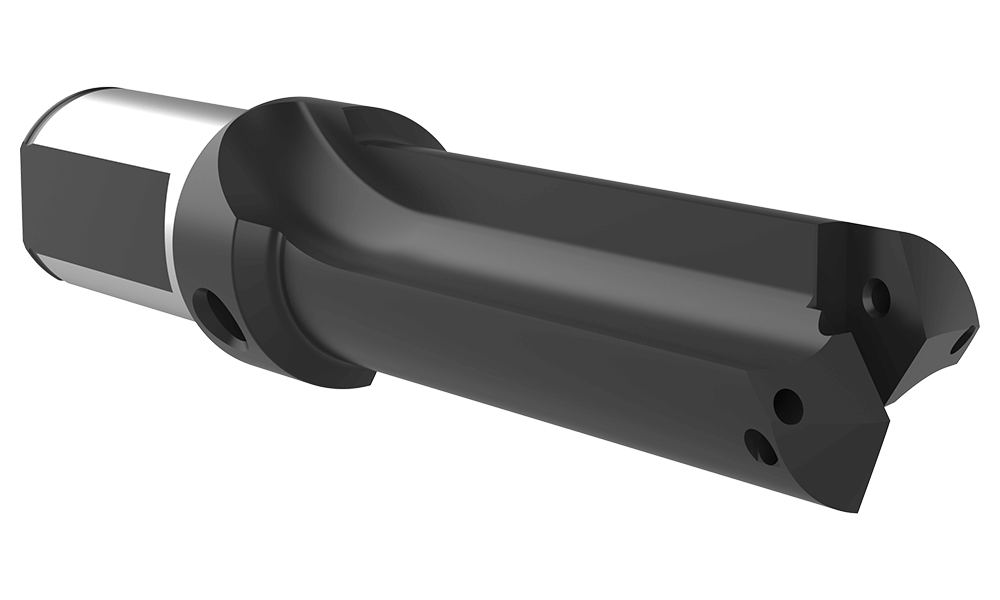

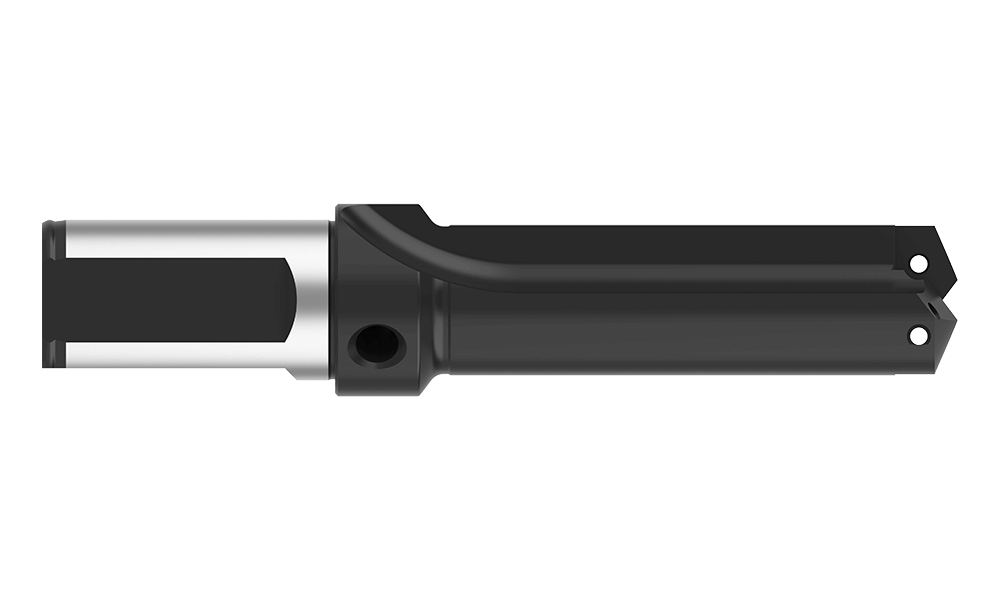

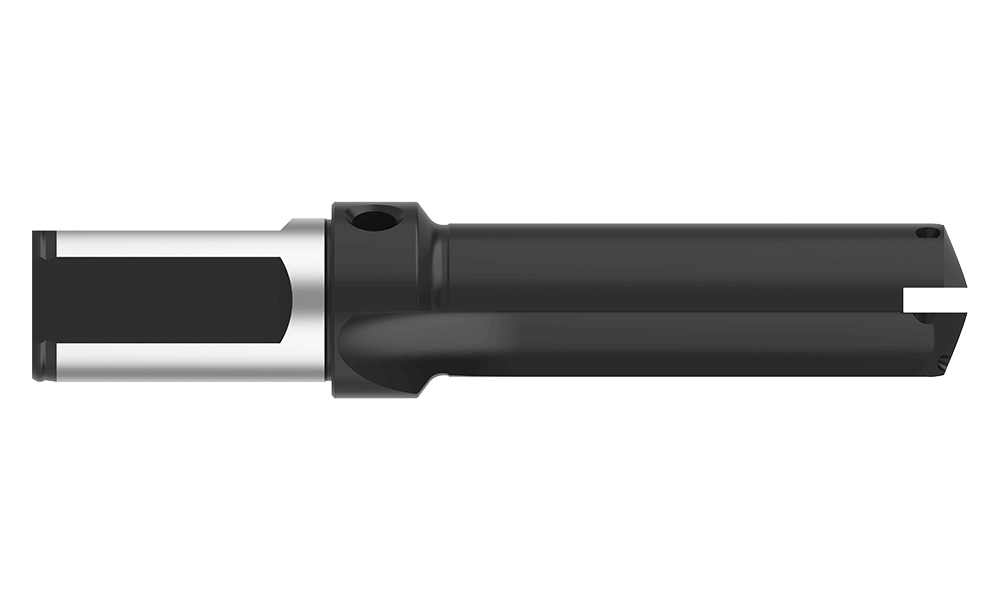

21025S-32FM
#2.5 METRIC TA STUB LNGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Sub-Series.5
Minimum diameter mm30.16
Maximum diameter mm35.06
Length TypeStub
Flute TypeStraight
Overall length mm183.41
Tool Reference Length mm126.97
Body length mm123.42
Drill depth mm100.56
Shank typeFlanged
Shank diameter mm32
Shank length mm60.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.92
CategoryStocked
