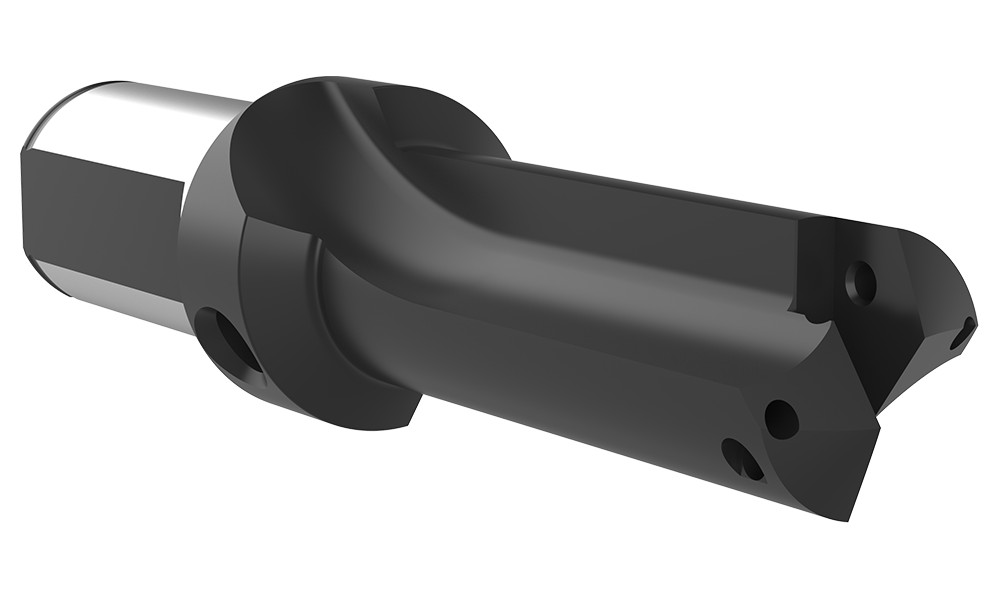

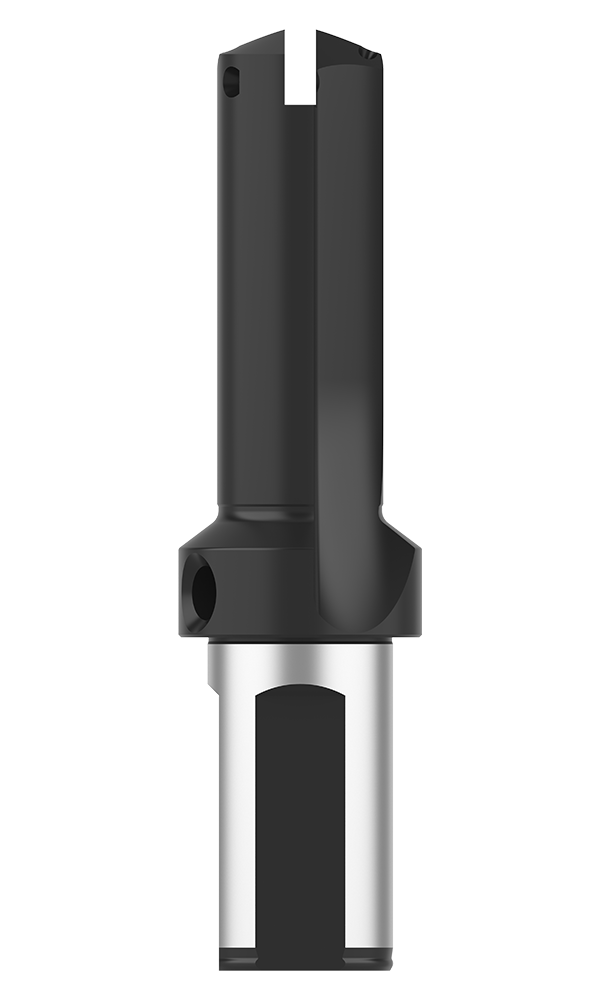

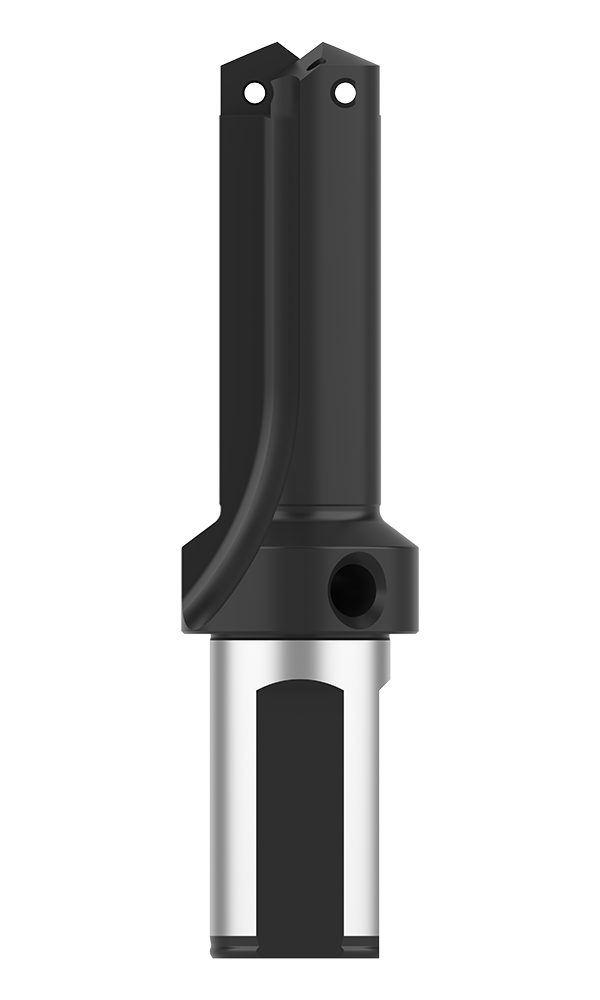

21030S-40FM
#3 METRIC TA STUB LENGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeStub
Flute TypeStraight
Overall length mm195.02
Tool Reference Length mm129.77
Body length mm125.02
Drill depth mm97.69
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Pipe tap side inch0.25
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)3.19
CategoryStocked
