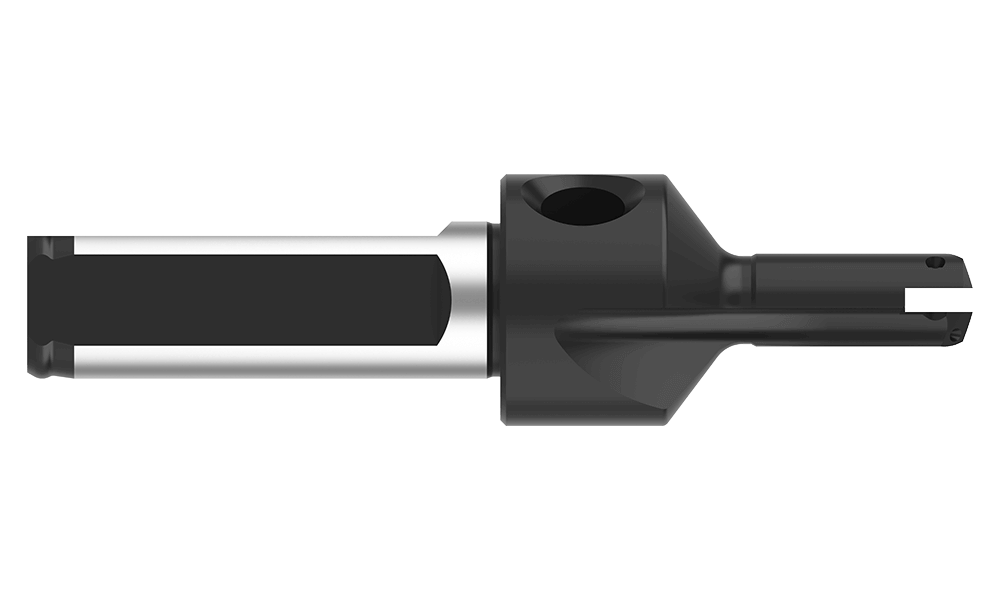

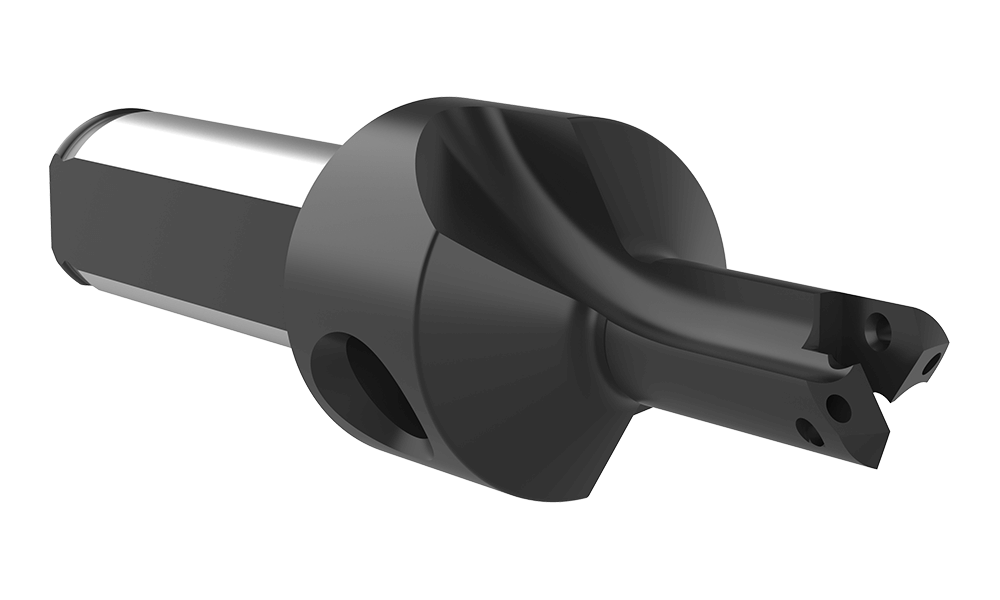

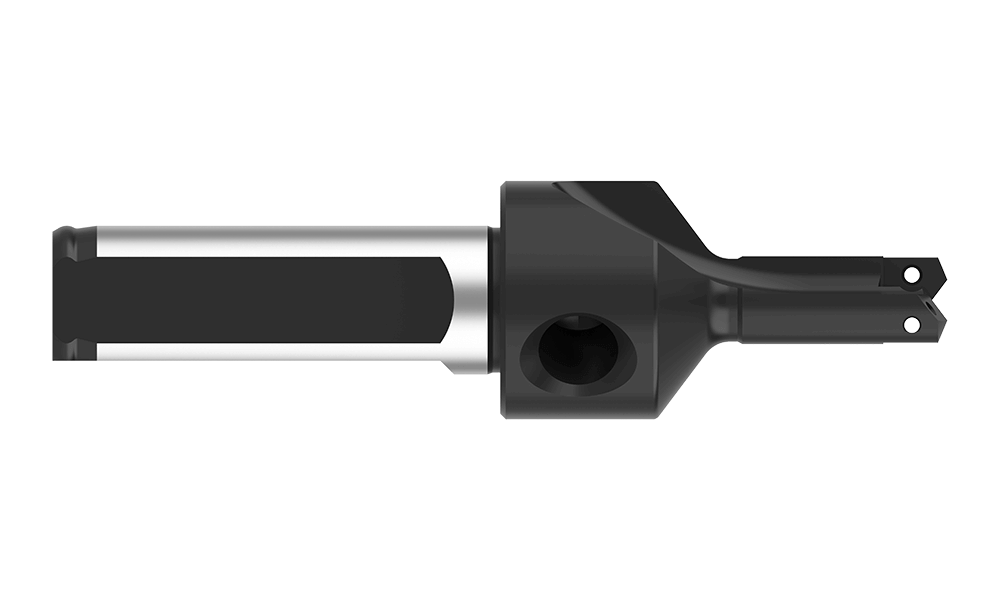

210Y0S-16FM
#Y METRIC TA STUB LENGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesY
Minimum diameter mm9.50
Maximum diameter mm11.09
Length TypeStub
Flute TypeStraight
Overall length mm95.6
Tool Reference Length mm49.9
Body length mm47.6
Drill depth mm21.9
Shank typeFlanged
Shank diameter mm16
Shank length mm48.0
Pipe tap rear inch1/16
Pipe tap rear mm1/16 BSPT
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
724-IP7-1     (Qty: 0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
8IP-7     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.32
CategoryStocked
