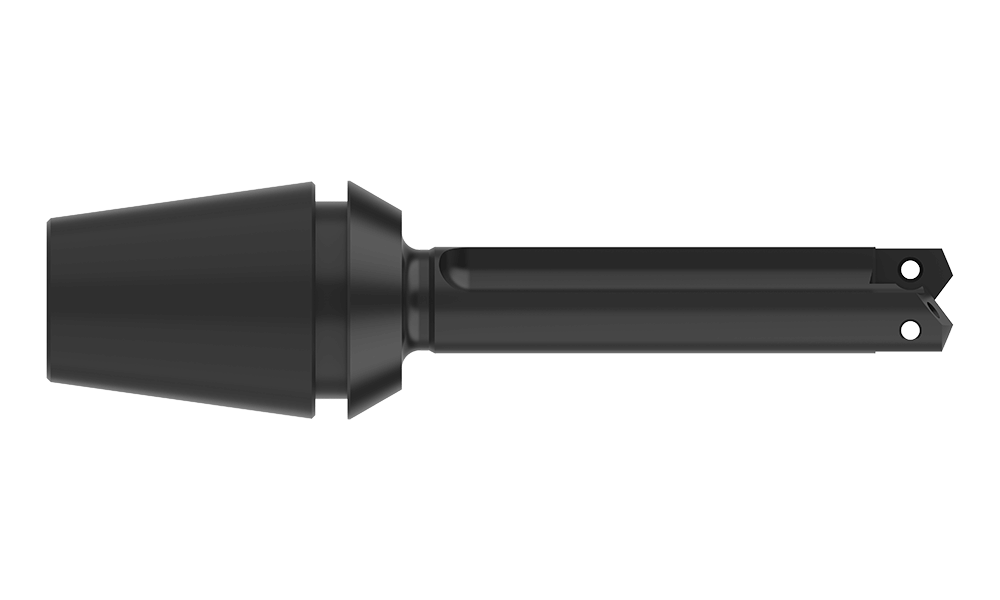

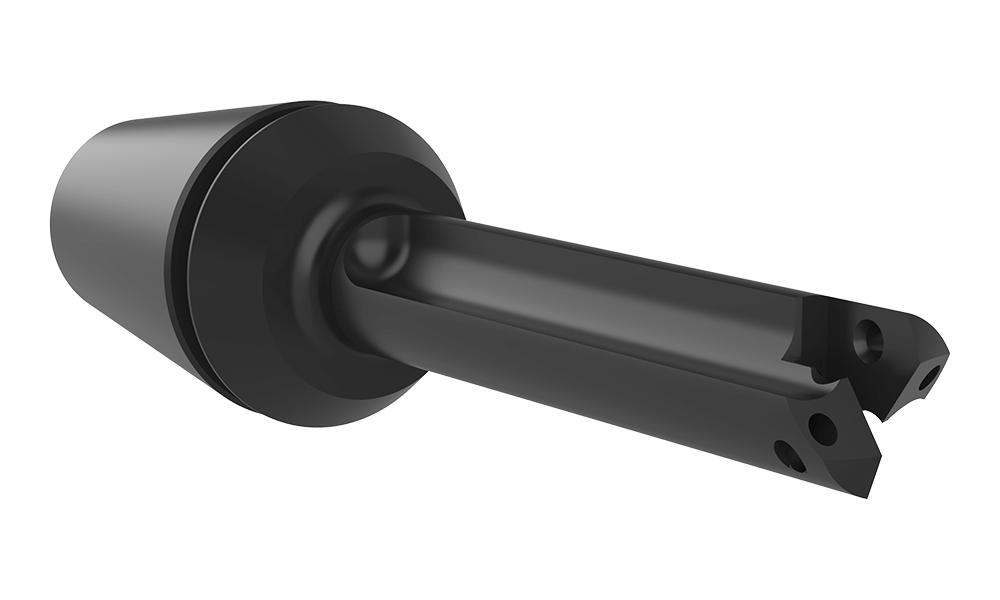

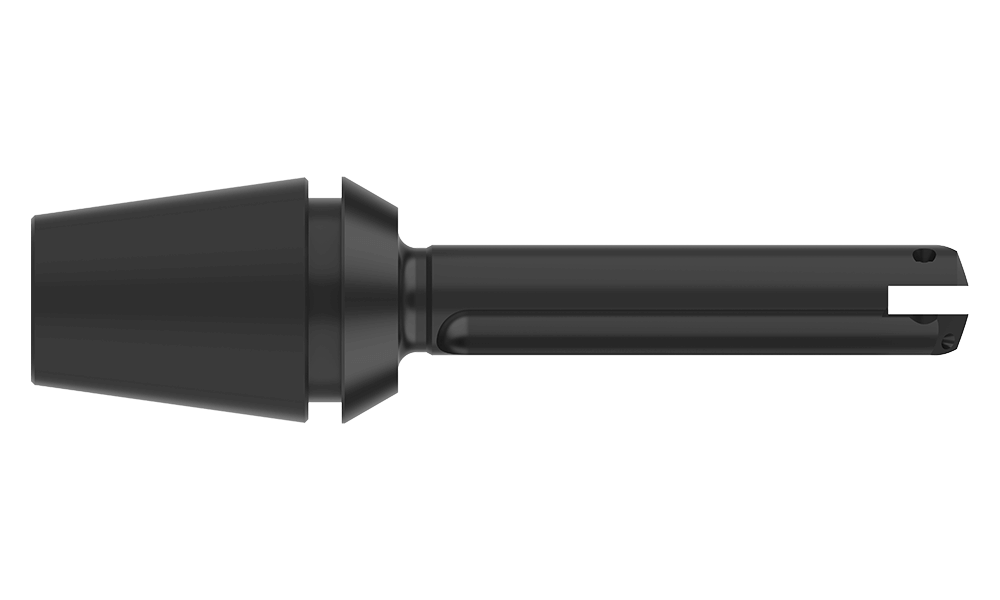

210Y0S-20ER

#Y TA STUB HOLDER ER-20

T-A® Holder

See Additional Technical Information

Product Specifications

Series	Y
Minimum diameter mm	9.50
Maximum diameter mm	11.09
Length Type	Stub
Flute Type	Straight
Overall length mm	79.76
Tool Reference Length mm	50.80
Body length mm	48.51
Drill depth mm	42.47
Shank type	ER20 Collet
Deep Hole Guidelines	No
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	0.17
Category	Stocked
