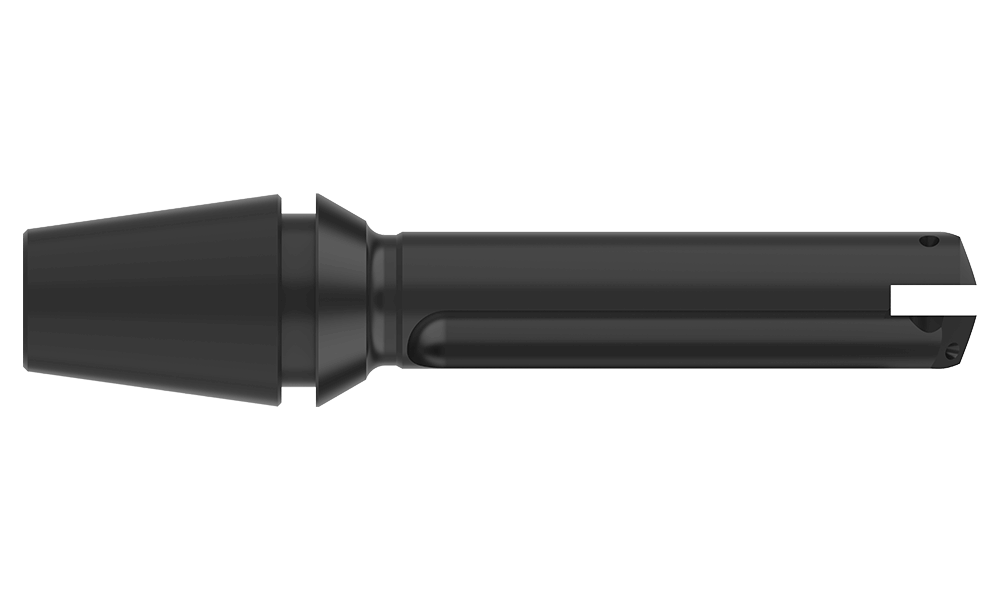

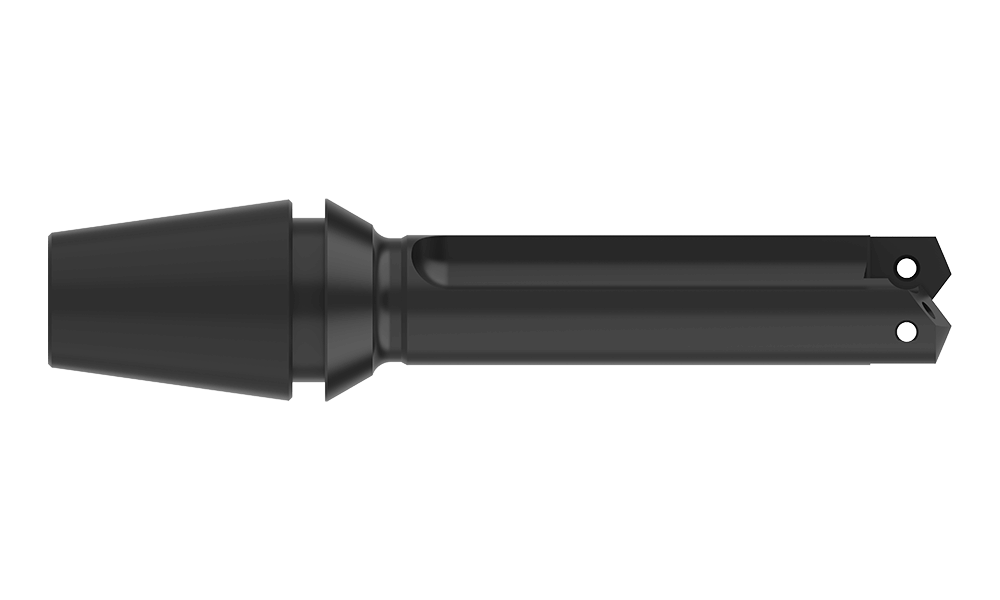

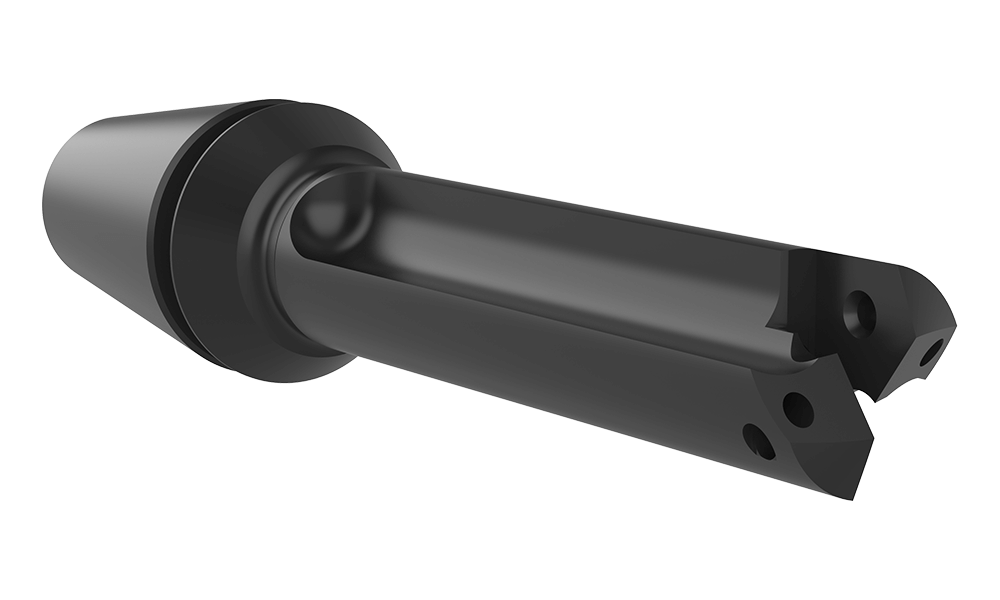

210Z0S-16ER
#Z TA STUB HOLDER ER-16
T-A® Holder






Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeStub
Flute TypeStraight
Overall length mm75.77
Tool Reference Length mm50.80
Body length mm48.51
Drill depth mm42.09
Shank typeER16 Collet
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.12
CategoryStocked
