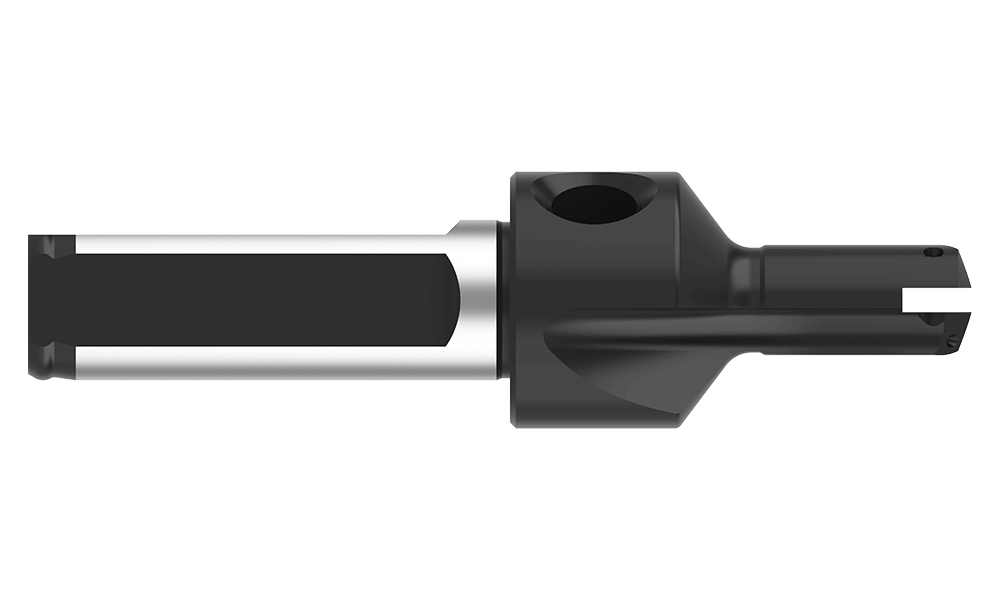

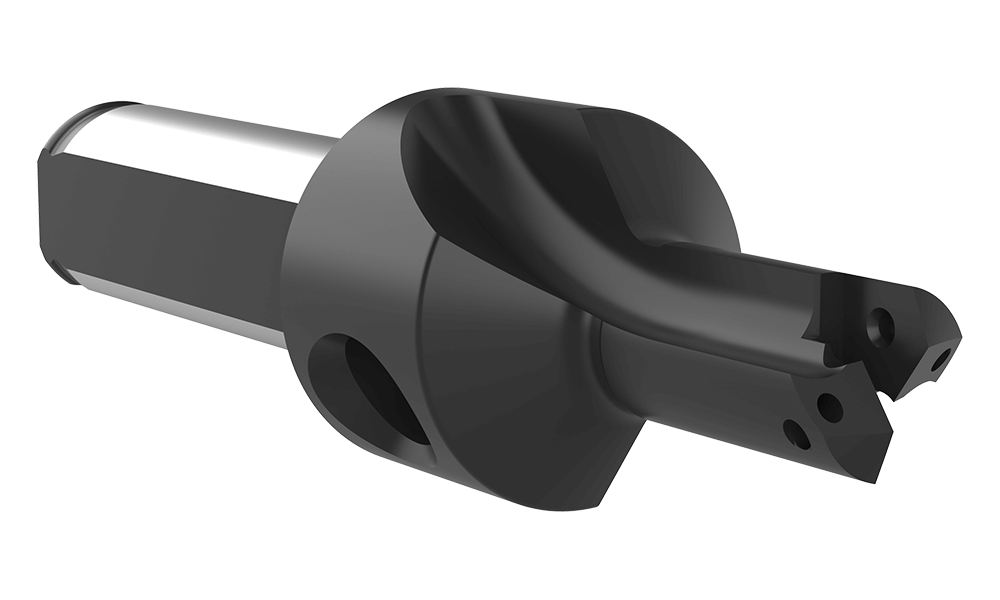

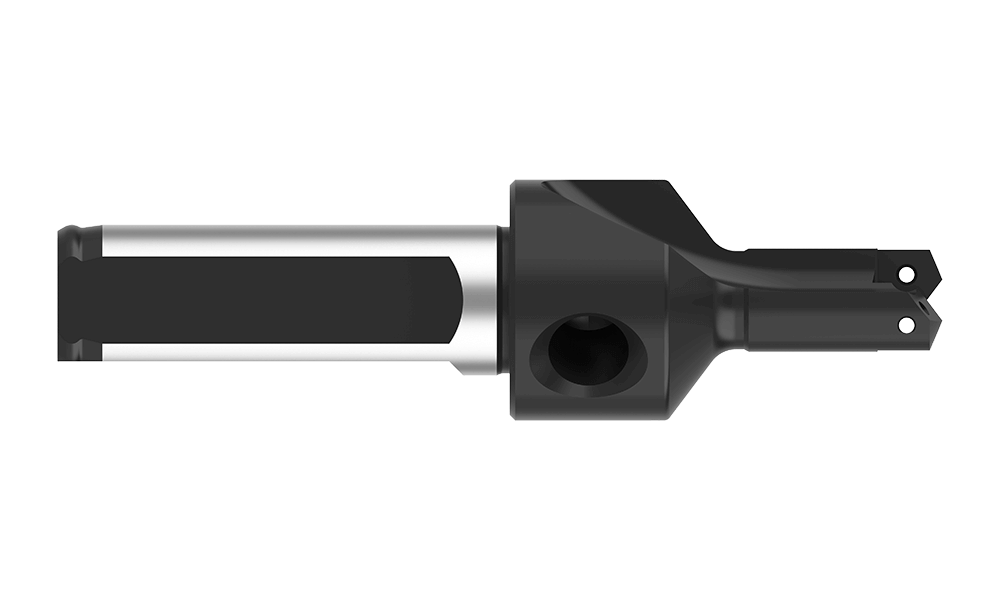

210Z0S-16FM
#Z METRIC TA STUB LENGTH HLDR
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeStub
Flute TypeStraight
Overall length mm93.65
Tool Reference Length mm47.93
Body length mm45.64
Drill depth mm20.45
Shank typeFlanged
Shank diameter mm16
Shank length mm48.0
Pipe tap rear inch1/16
Pipe tap rear mm1/16 BSPT
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.32
CategoryStocked
