| Series | 0 |
| Minimum diameter inch | 0.5110 |
| Maximum diameter inch | 0.6959 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 4.563 |
| Tool Reference Length inch | 2.295 |
| Body length inch | 2.188 |
| Drill depth inch | 1.218 |
| Shank type | Lathe |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.375 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | No |

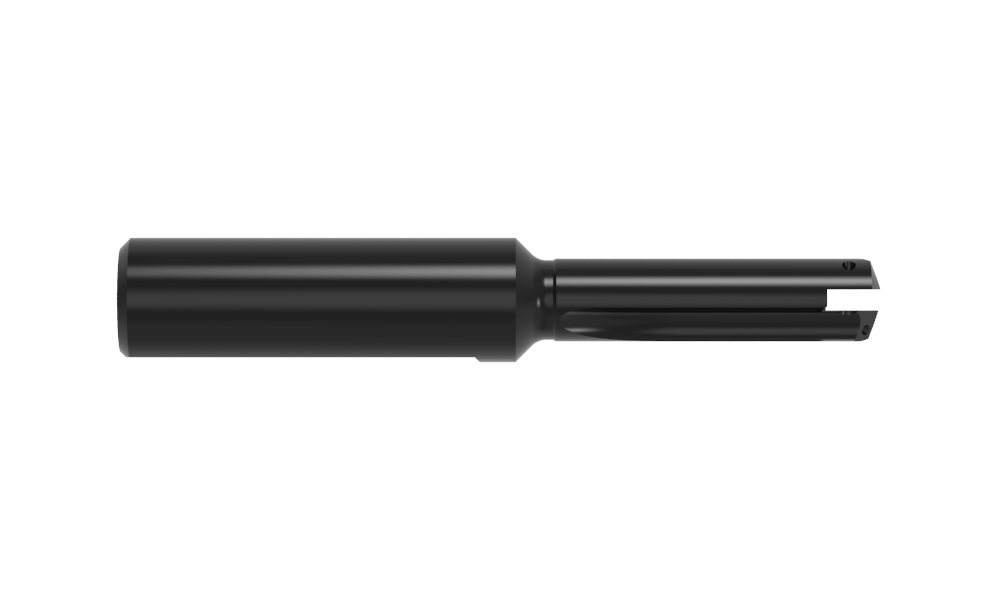

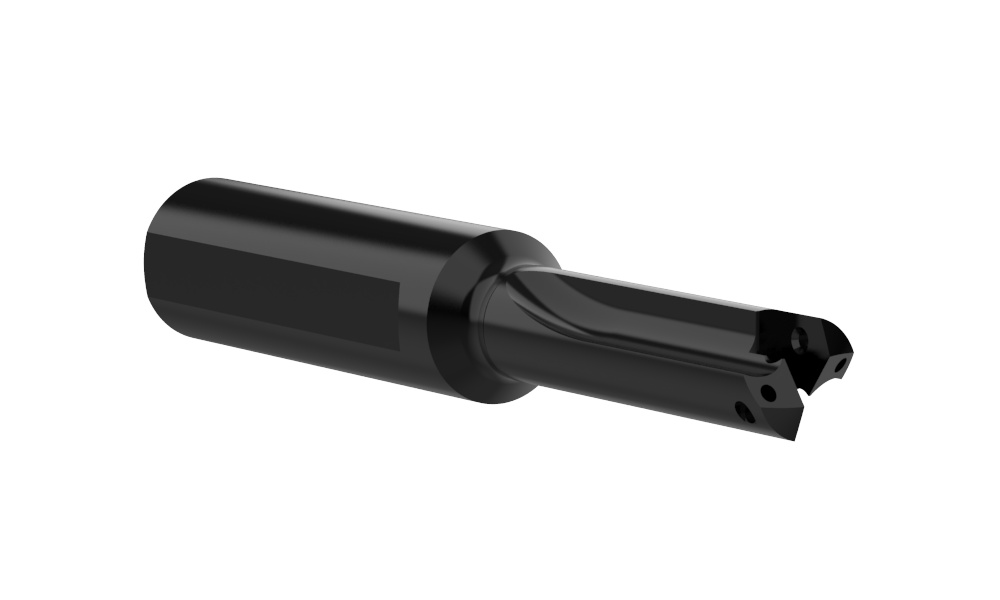

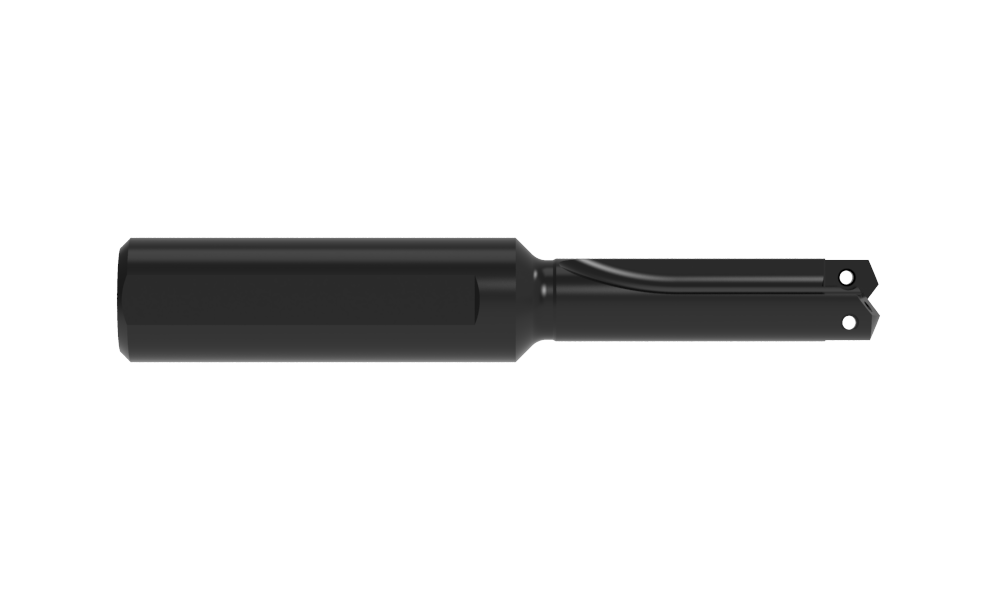

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
