22010S-003IS045
T-A® Structural Steel Replaceable Drill Body: 0.7031" - 0.9609", Short, Morse Taper (SS) Shank
T-A® SS Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

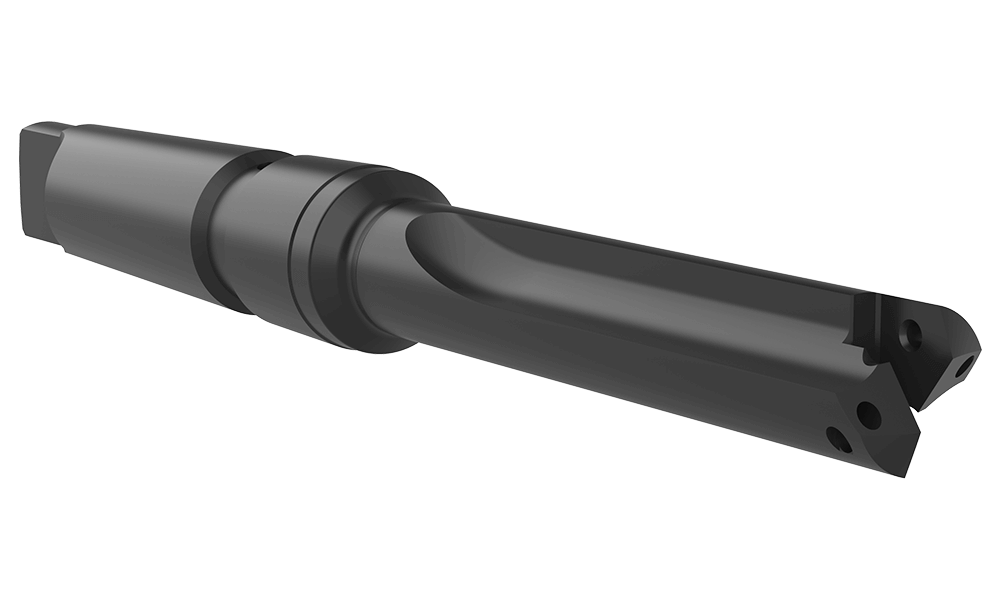

Angle

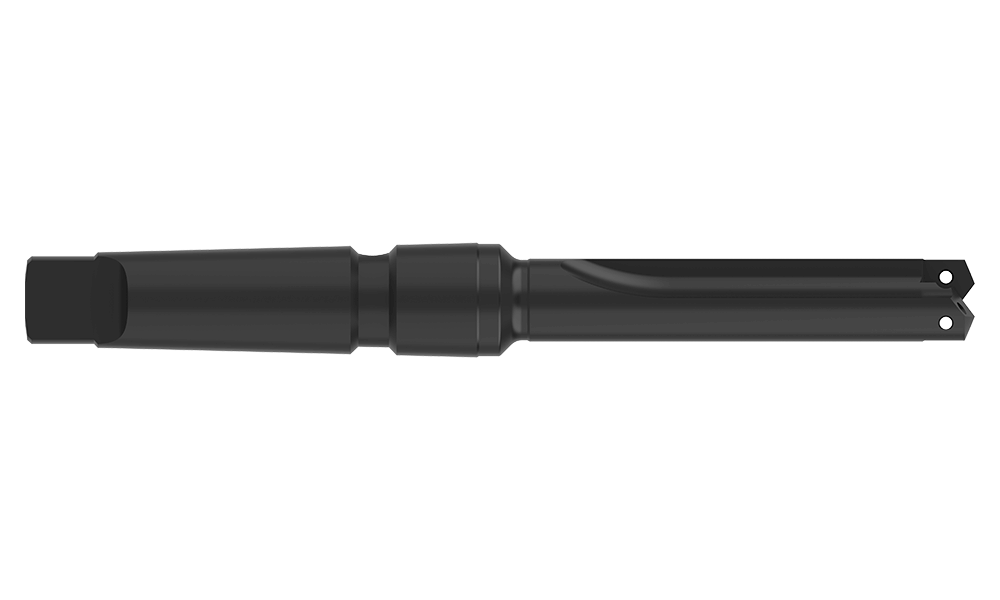

Front

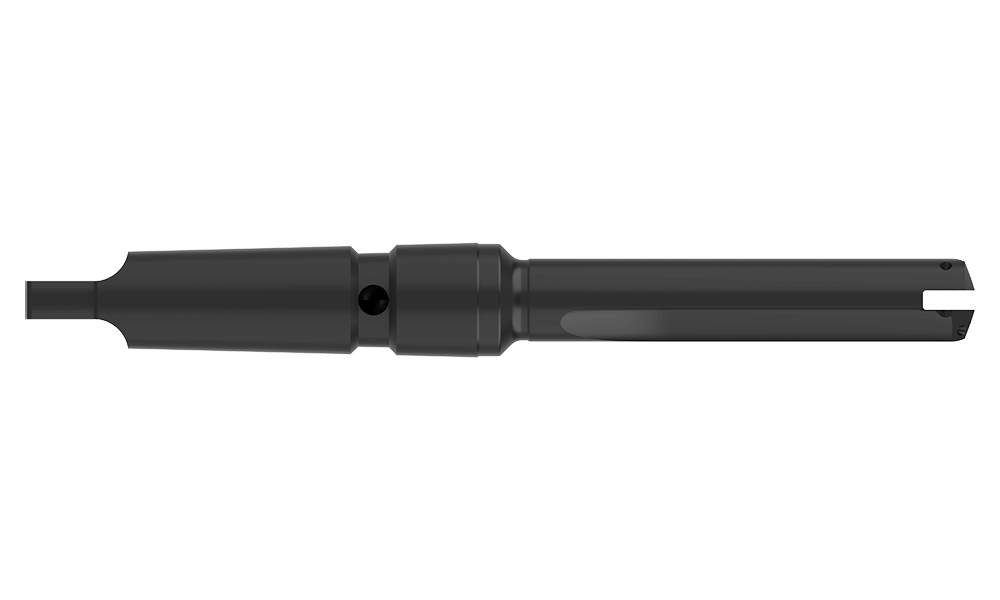

Side
Product Specifications
Series 1
Minimum Diameter (inch) 0.7031
Maximum Diameter (inch) 0.9609
Length Type Short
Flute Type Straight
Overall Length (inch) 7.829
Tool Reference Length (inch) 4.078
Body Length (inch) 3.954
Drill Depth (inch) 2.558
Shank Type Morse Taper (SS)
Shank Diameter (inch) #3 MT
Coolant Inlet Style Rear Through Tang Coolant
Coolant Inlet Style Side Through Shank Coolant
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application Structural Steel
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.84
Weight in kg (each) 0.38
Category Stocked
