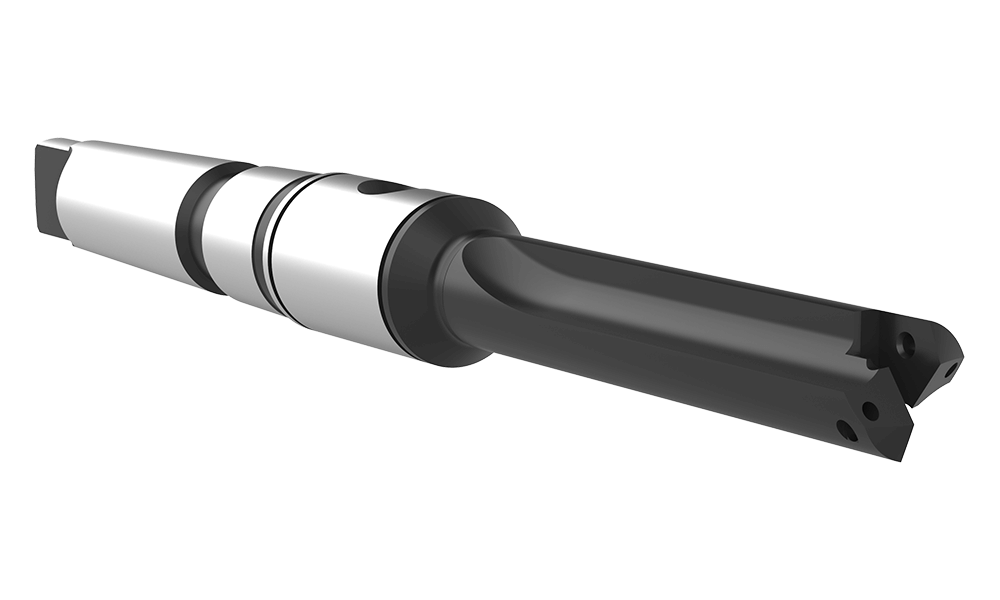

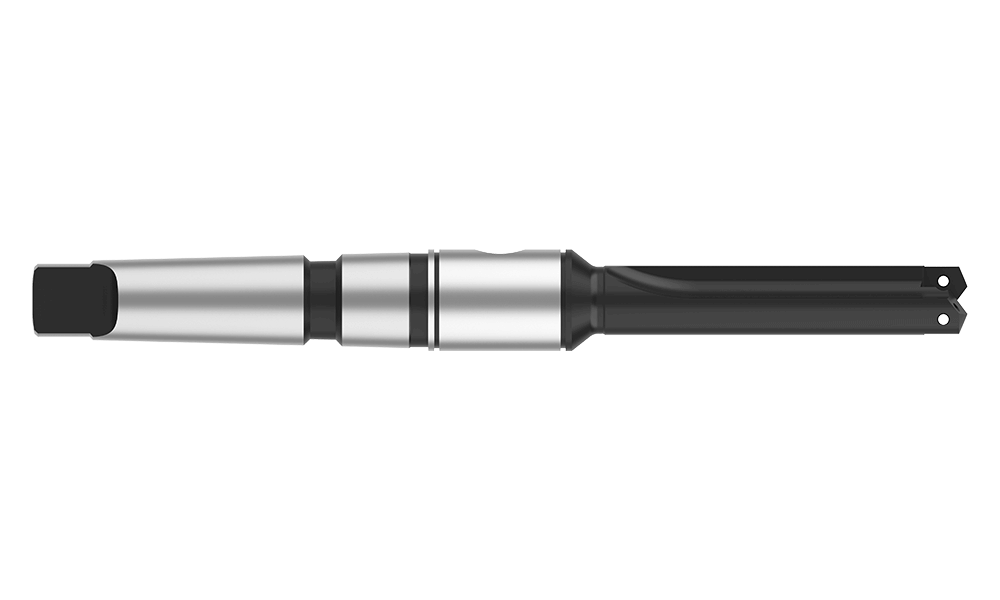

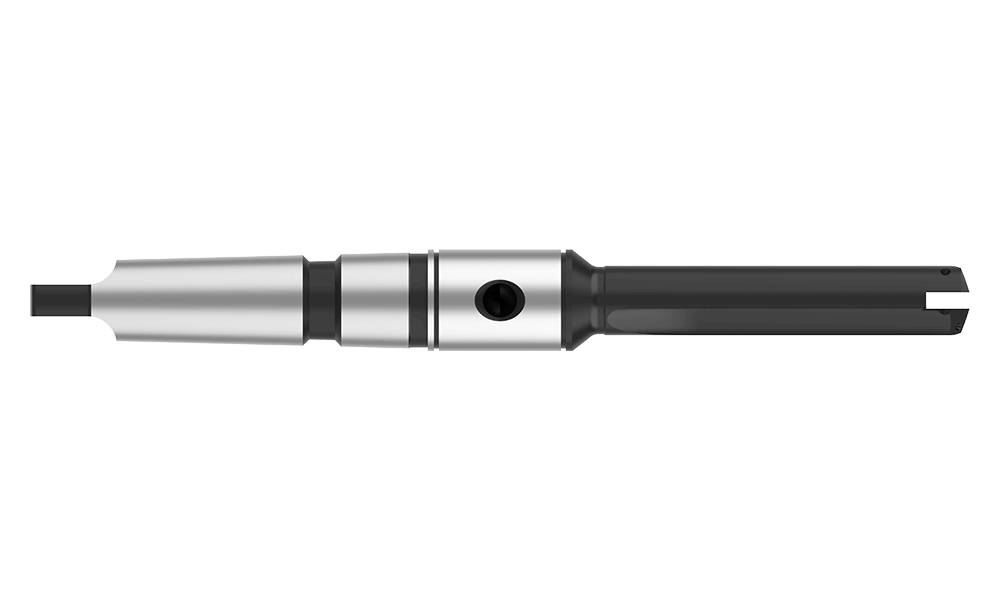

22010S-003M
#1 TA SHT HLDR METR TAP SH
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Minimum diameter mm17.53
Maximum diameter mm24.40
Length TypeShort
Flute TypeStraight
Overall length mm232.56
Tool Reference Length mm142.44
Body length mm98.43
Drill depth mm66.83
Shank typeMorse Taper
Shank diameter mm#3 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.15
CategoryStocked
