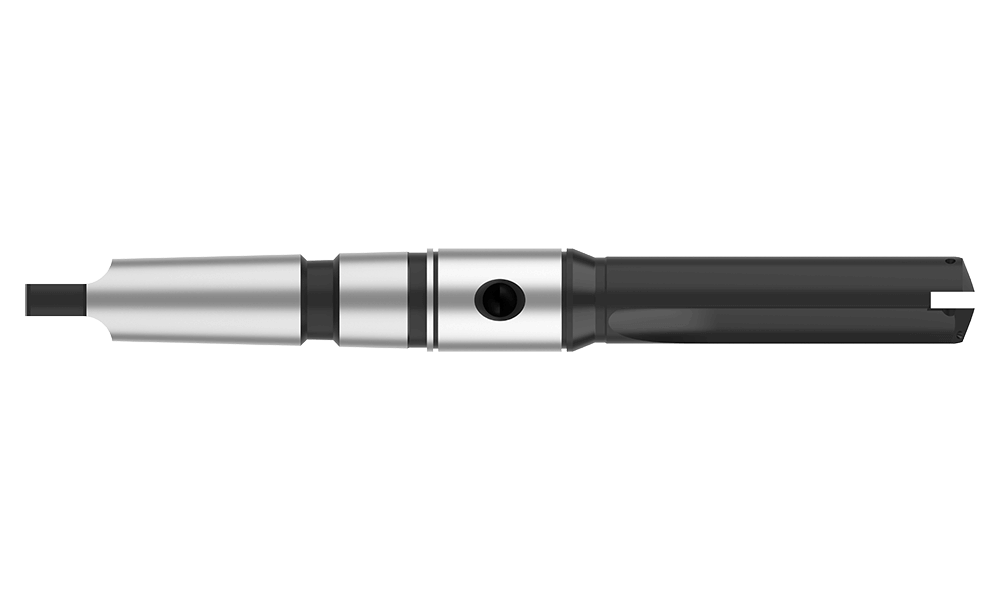

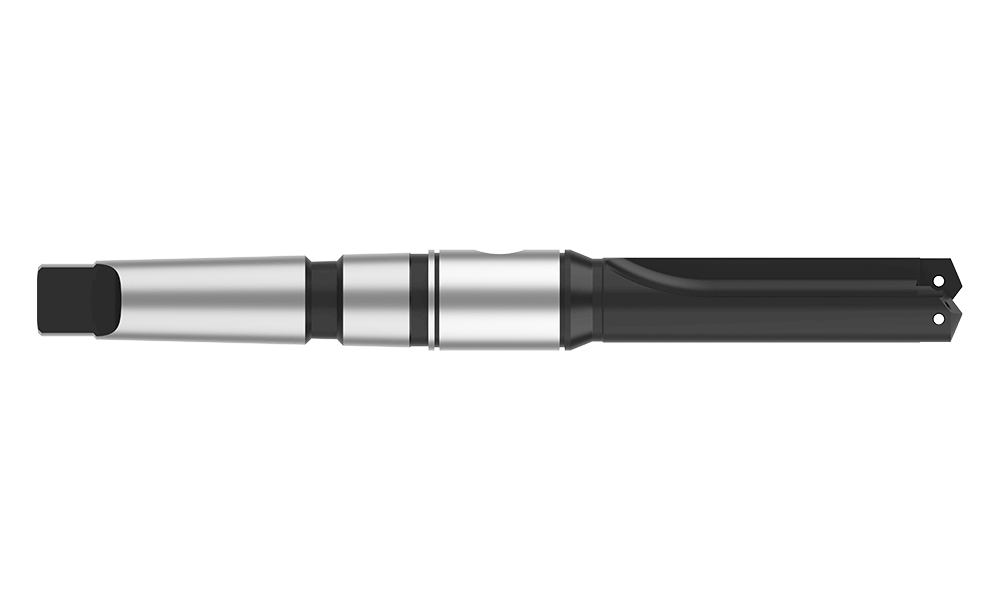

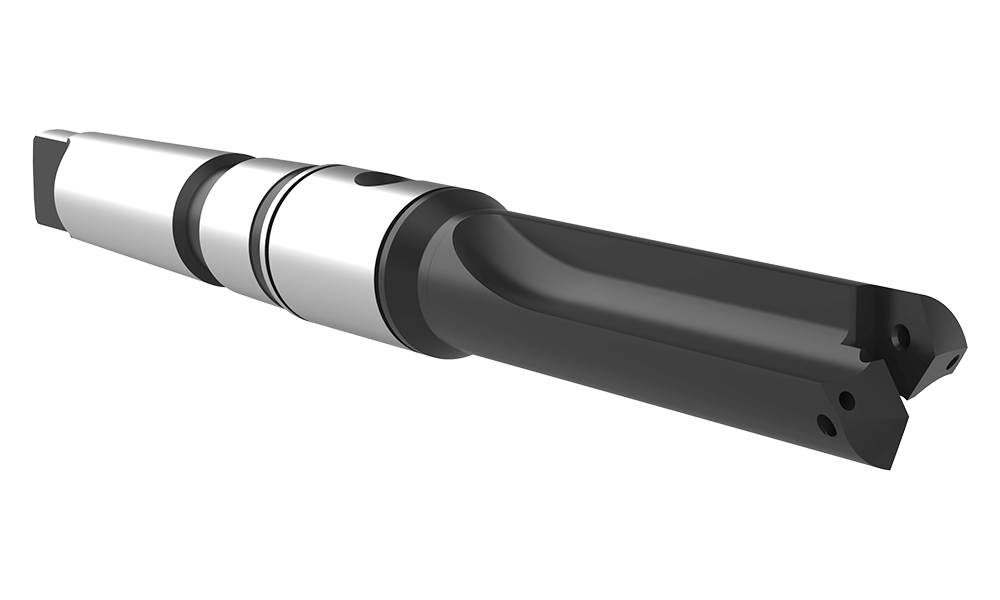

22015S-003M
#1.5 TA SHT HLDR METR TAP SH
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Sub-Series.5
Minimum diameter mm21.83
Maximum diameter mm24.40
Length TypeShort
Flute TypeStraight
Overall length mm232.56
Tool Reference Length mm142.44
Body length mm98.43
Drill depth mm63.04
Shank typeMorse Taper
Shank diameter mm#3 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.29
CategoryStocked
