| Series | 1 |
| Sub-Series | .5 |
| Minimum diameter inch | 0.8594 |
| Maximum diameter inch | 0.9609 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 6.875 |
| Tool Reference Length inch | 4.015 |
| Body length inch | 3.875 |
| Drill depth inch | 2.661 |
| Shank type | Lathe |
| Shank diameter inch | 1 |
| Shank length inch | 3.000 |
| Pipe tap rear inch | 1/8 NPT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

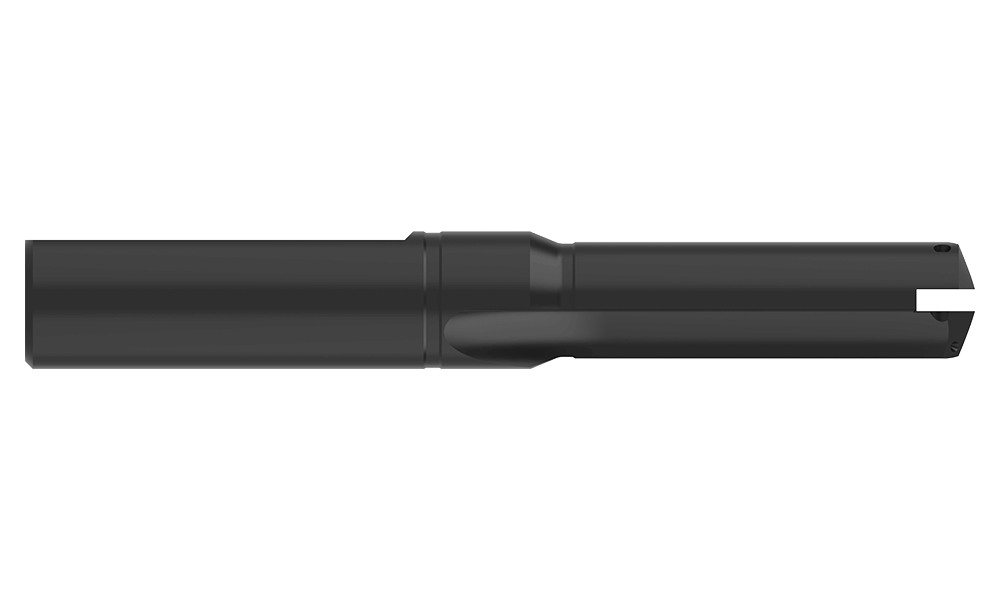

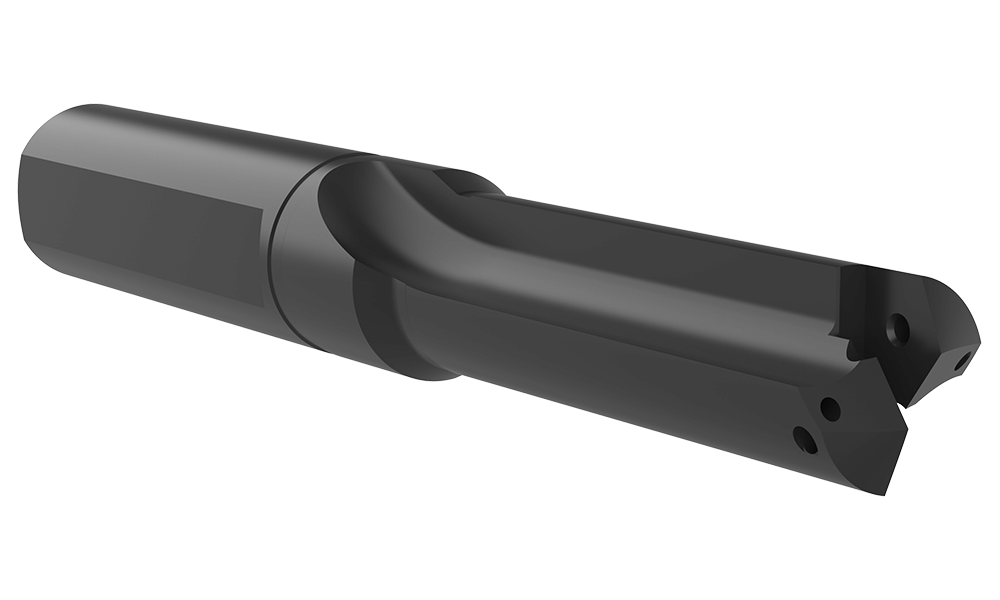

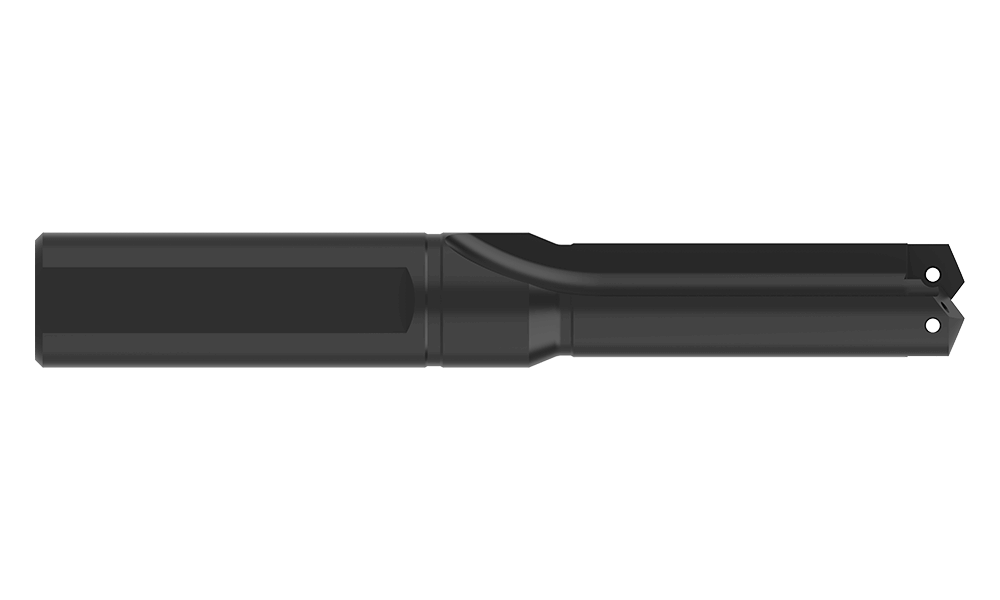

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
