| Series | 2 |
| Minimum diameter inch | 0.9610 |
| Maximum diameter inch | 1.3809 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 9.781 |
| Tool Reference Length inch | 6.233 |
| Body length inch | 4.500 |
| Drill depth inch | 3.229 |
| Shank type | Morse Taper |
| Shank diameter inch | #3 MT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

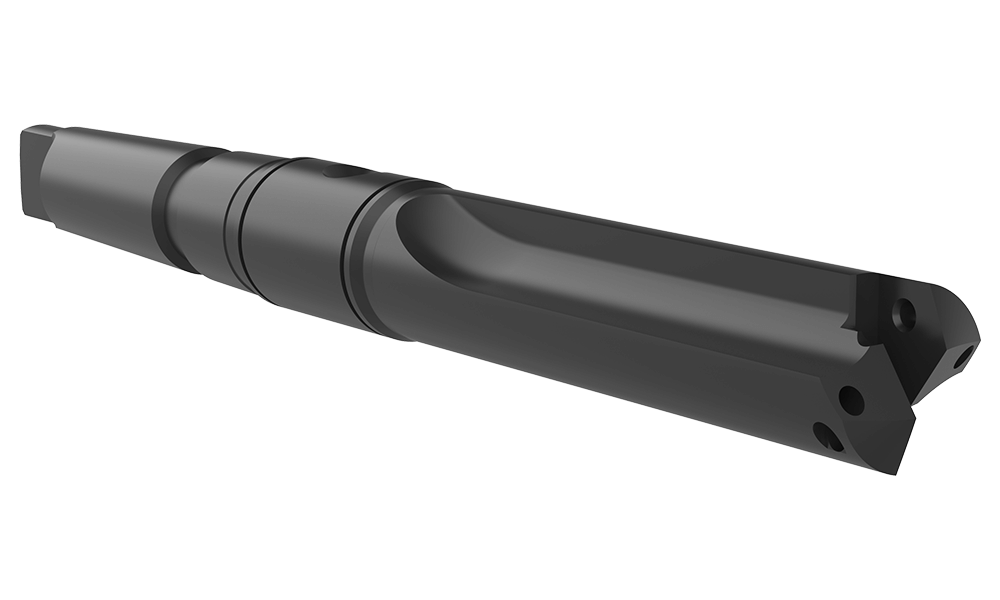

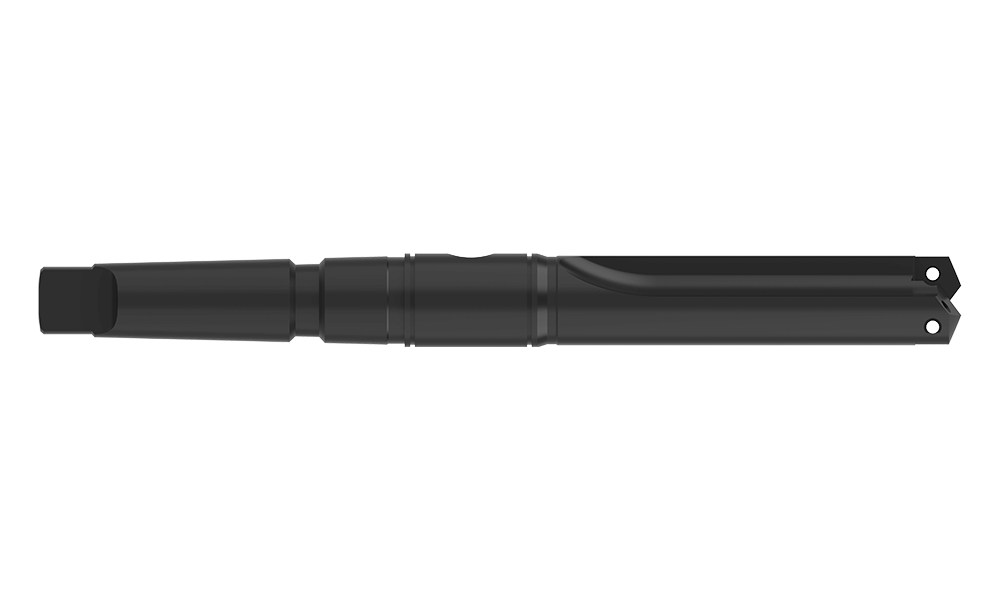

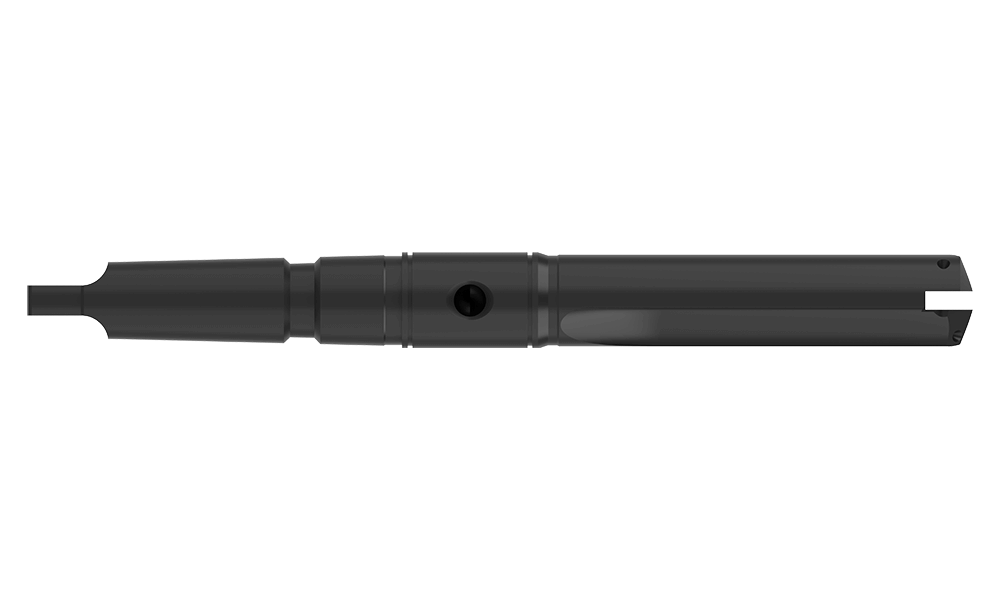

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
