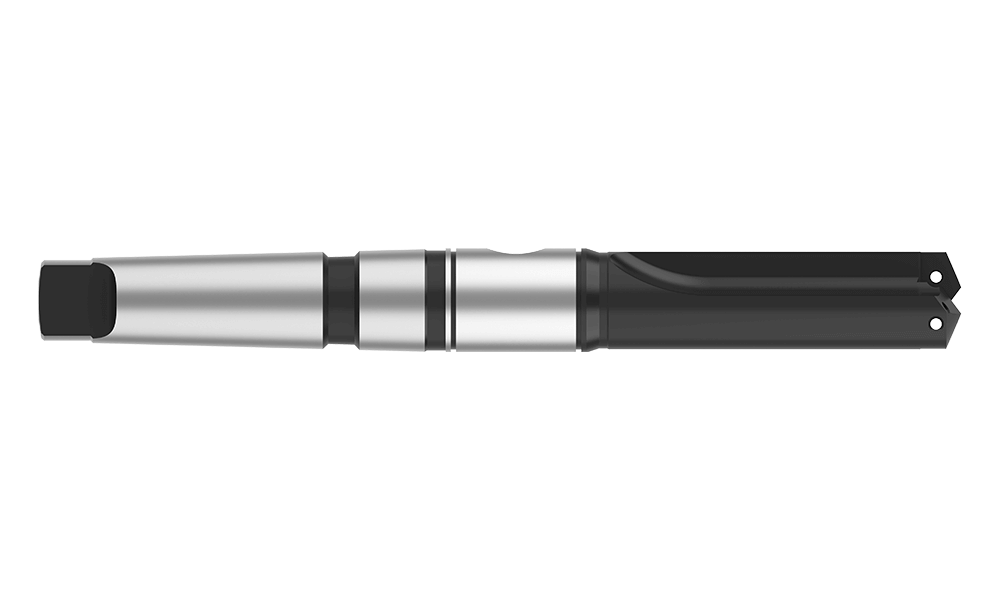

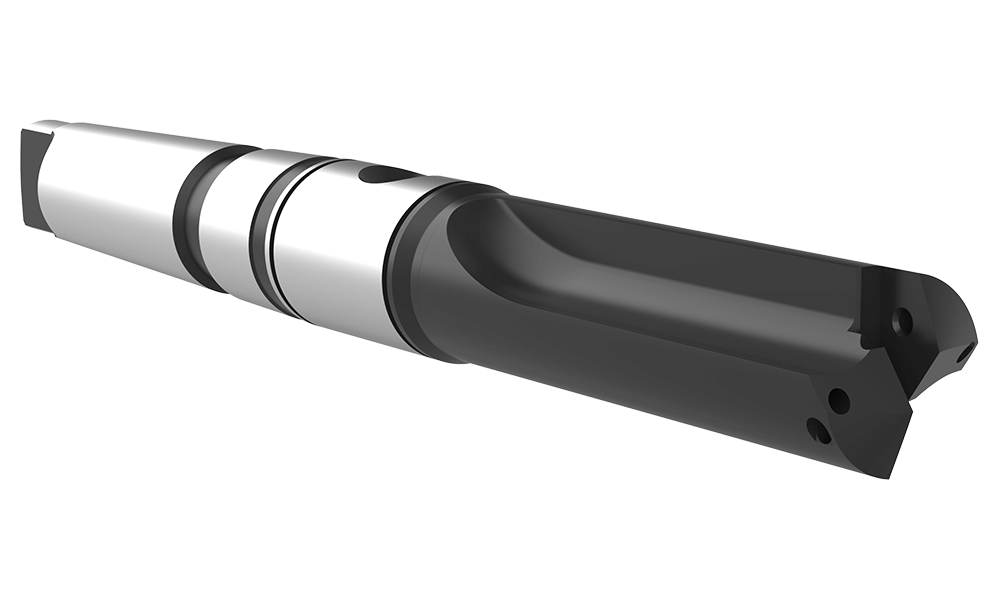

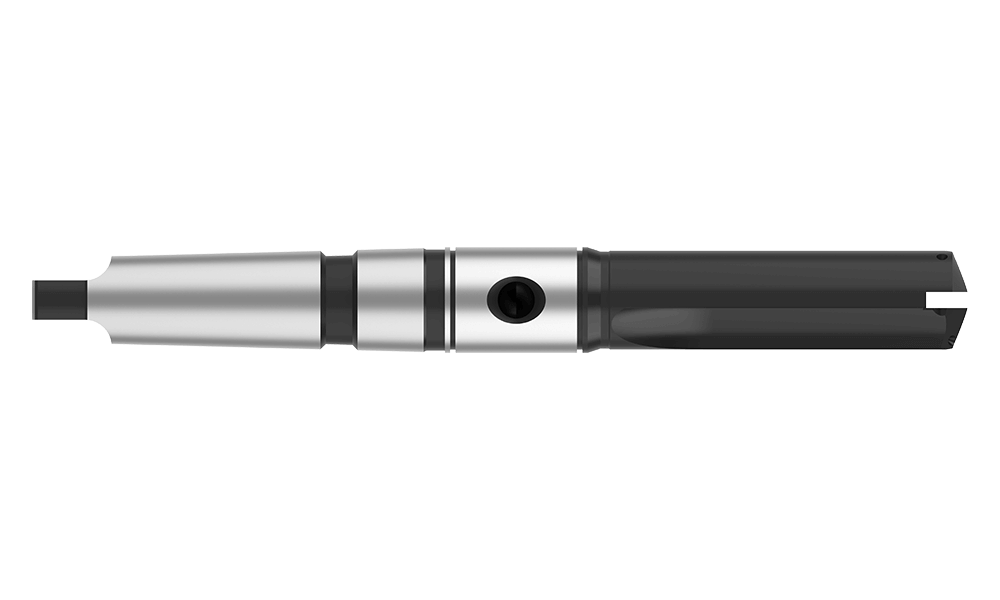

22025S-004M
#2.5 TA SHT HLDR METR TAP SH
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Sub-Series.5
Minimum diameter mm30.16
Maximum diameter mm35.06
Length TypeShort
Flute TypeStraight
Overall length mm280.97
Tool Reference Length mm167.06
Body length mm114.30
Drill depth mm76.53
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.76
CategoryStocked
