| Series | 3 |
| Minimum diameter inch | 1.3530 |
| Maximum diameter inch | 1.8829 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 12.562 |
| Tool Reference Length inch | 8.124 |
| Body length inch | 6.000 |
| Drill depth inch | 4.391 |
| Shank type | Morse Taper |
| Shank diameter inch | #4 MT |
| Pipe tap side inch | 1/4 NPT |
| Deep Hole Guidelines | No |

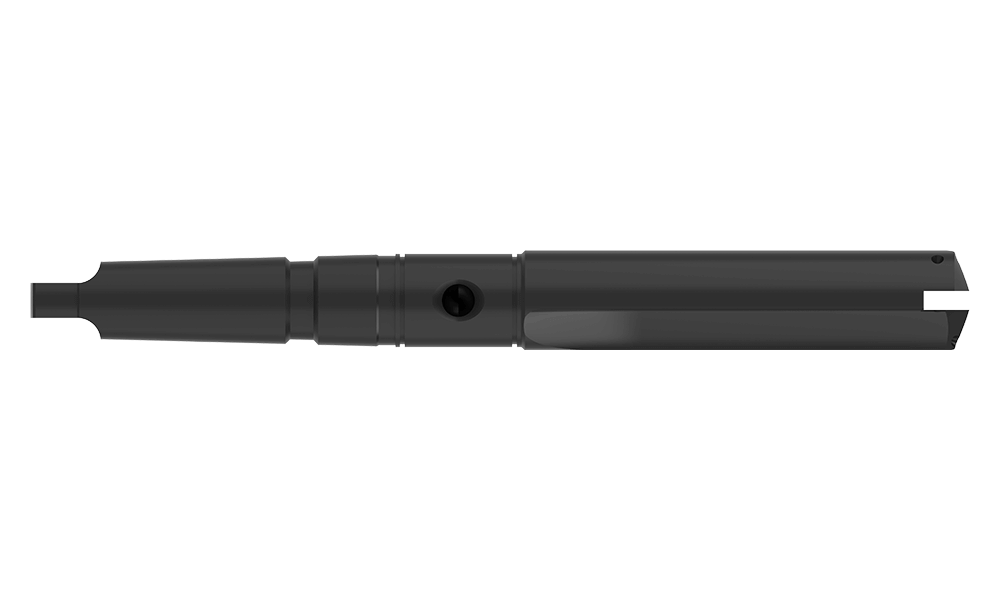

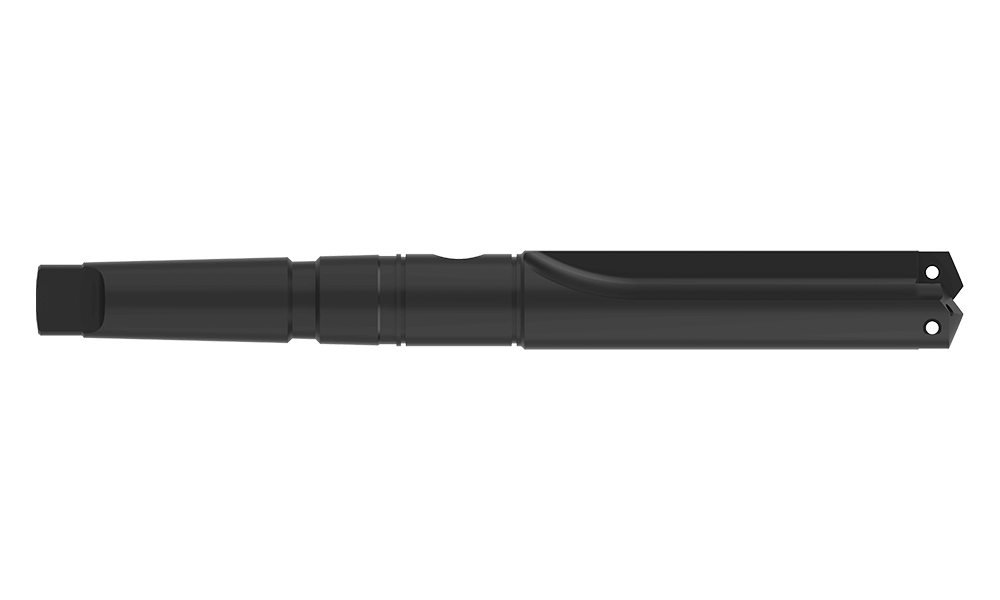

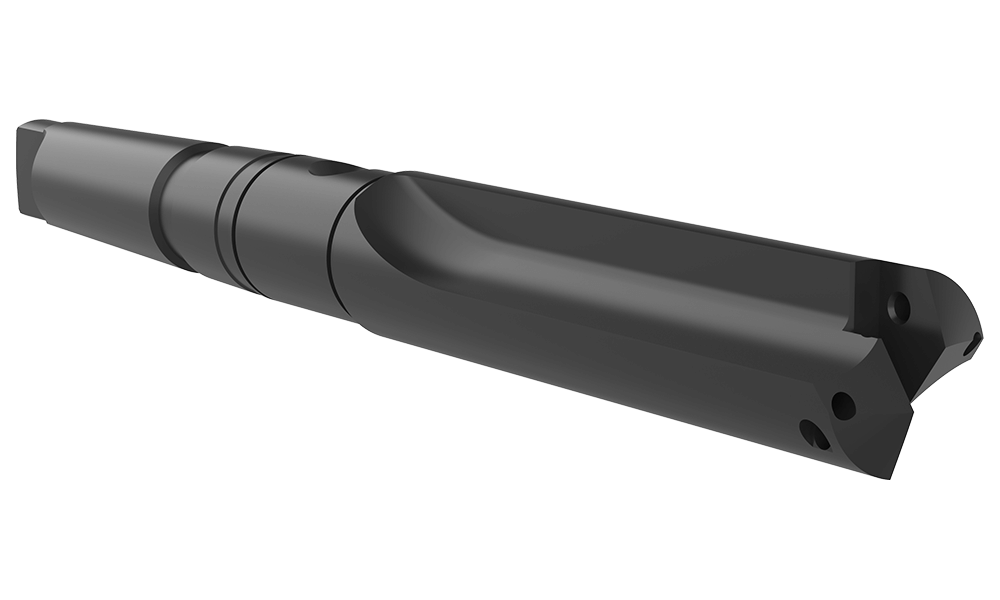

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
