22030S-004IS126
T-A® Structural Steel Replaceable Drill Body: 1.4063" - 1.8829", Short, Morse Taper (SS) Shank
T-A® SS Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

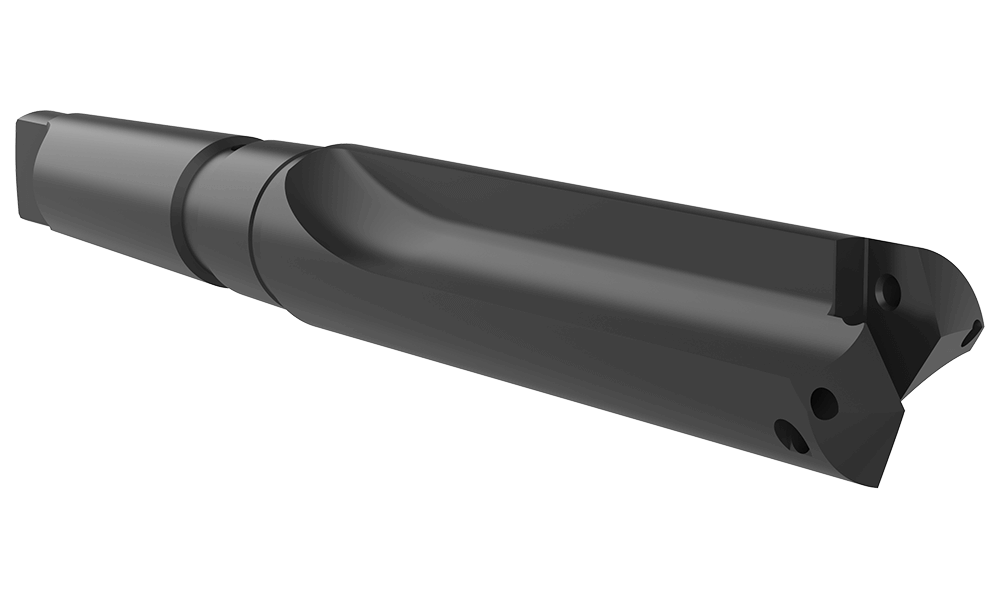

Angle

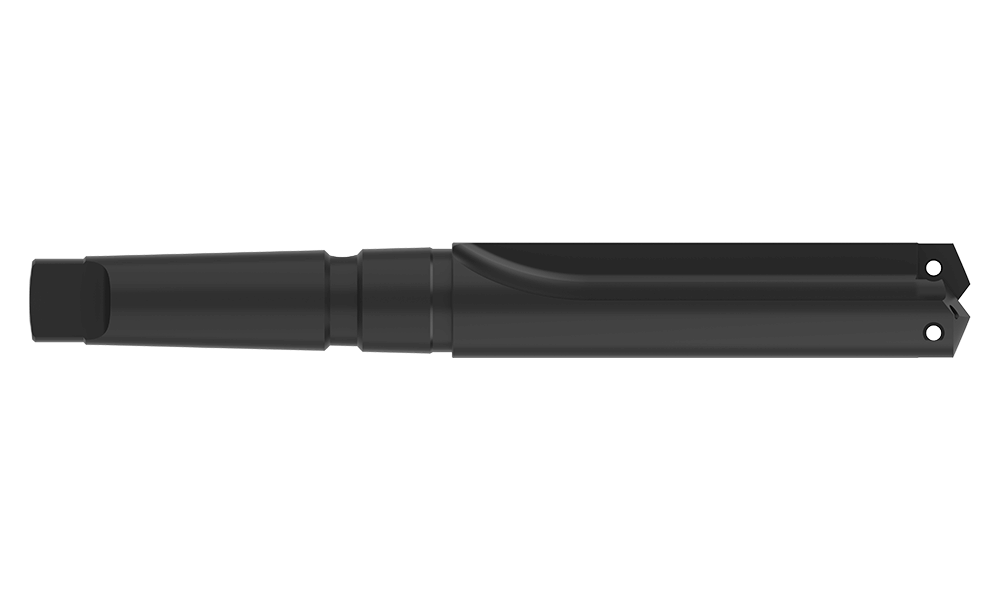

Front

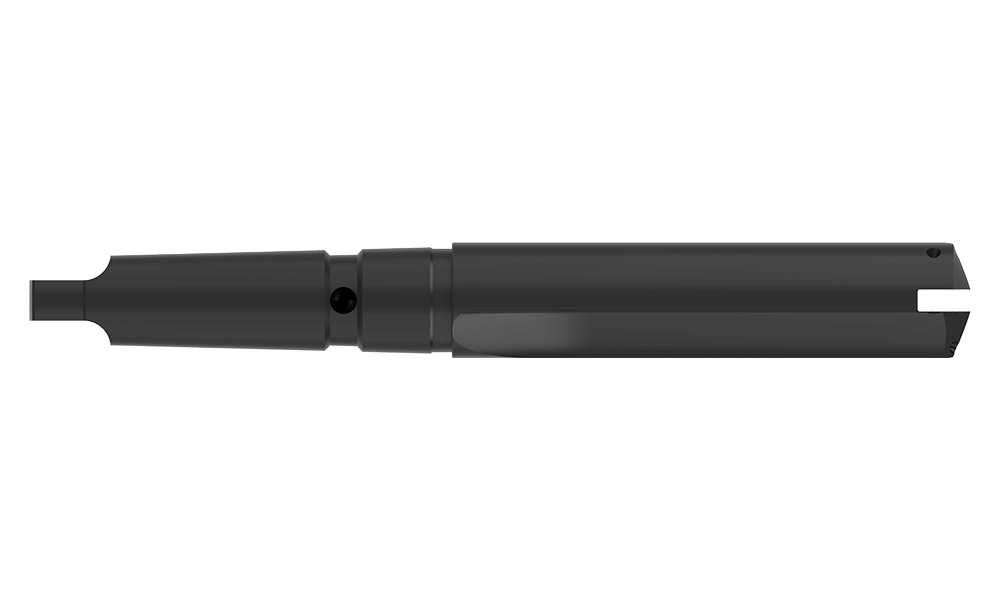

Side
Product Specifications
Series 3
Minimum diameter inch 1.4063
Maximum diameter inch 1.8829
Length Type Short
Flute Type Straight
Overall length inch 10.912
Tool Reference Length inch 6.250
Body length inch 6.037
Drill depth inch 4.441
Shank type Morse Taper (SS)
Shank diameter inch #4 MT
Coolant Inlet Style Rear Through Tang Coolant
Coolant Inlet Style Side Through Shank Coolant
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application Structural Steel
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7514-IP20-1 (Qty0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.89
Weight in kg (each) 1.31
Category Stocked
