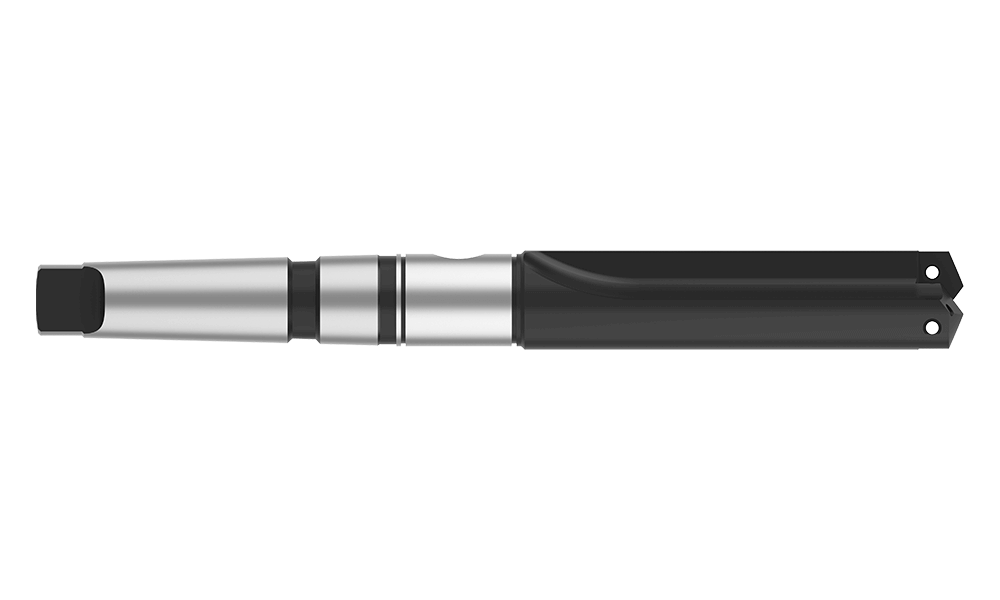

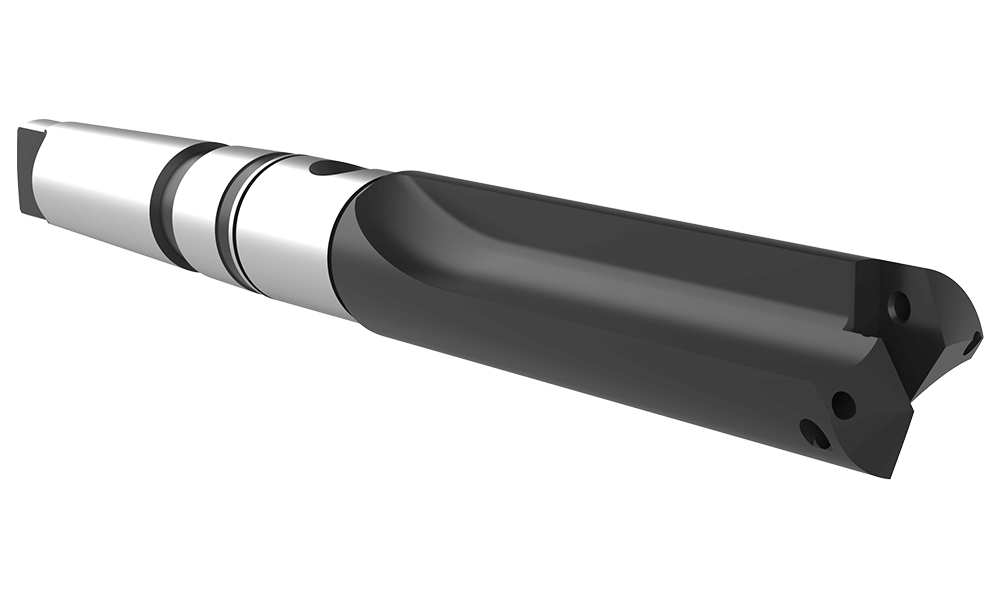

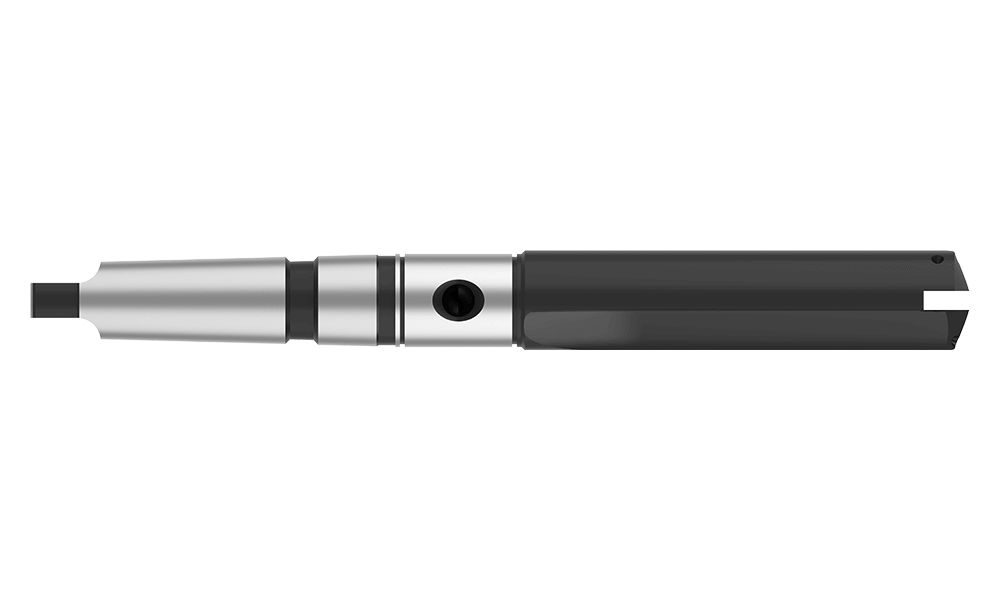

22030S-004M

#3 TA SHT HLDR METR TAP SH

T-A® Holder

See Additional Technical Information

Product Specifications

Series	3
Minimum diameter mm	34.37
Maximum diameter mm	47.82
Length Type	Short
Flute Type	Straight
Overall length mm	319.07
Tool Reference Length mm	206.35
Body length mm	152.40
Drill depth mm	109.98
Shank type	Morse Taper
Shank diameter mm	#4 MT ISO
Pipe tap side inch	1/4
Pipe tap side mm	1/4 BSPT
Deep Hole Guidelines	No
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	3.47
Category	Stocked
