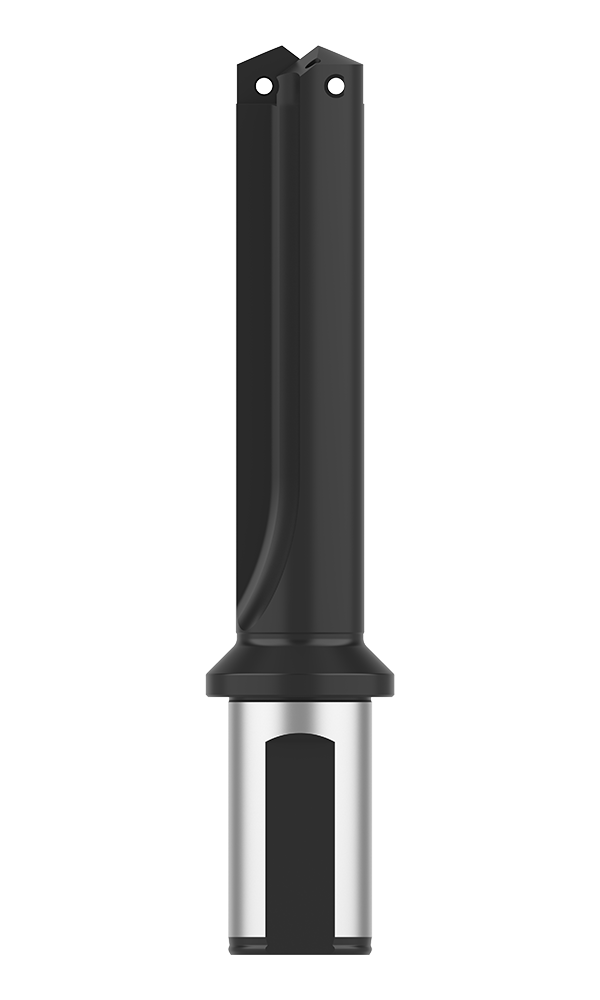

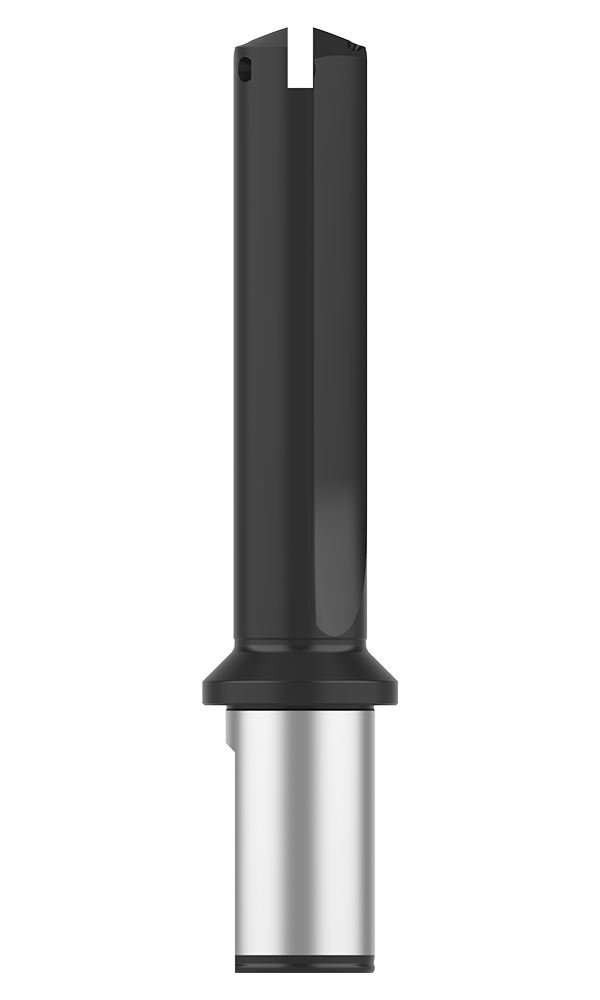

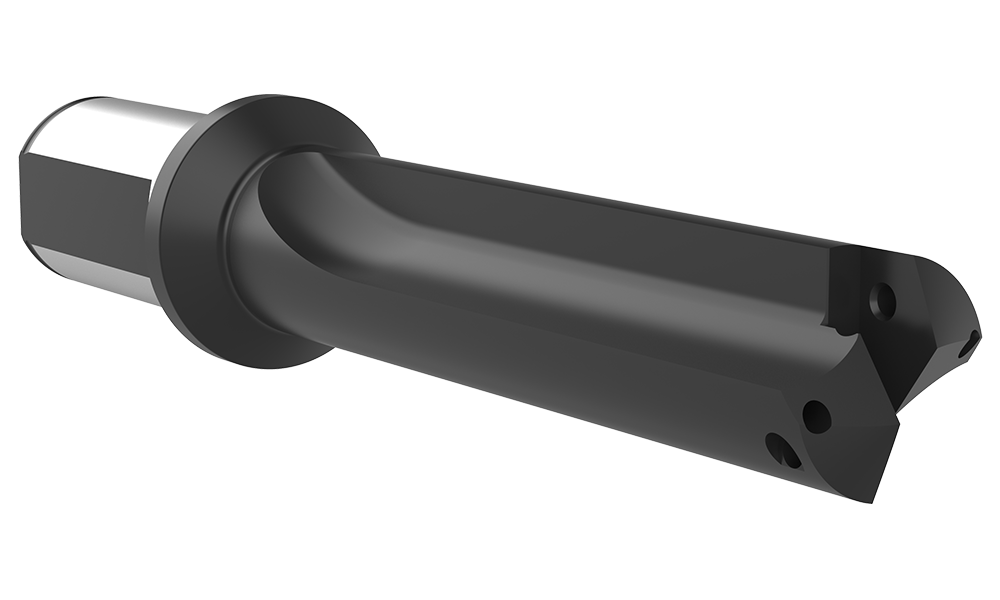

22030S-40FM
#3 TA SHT HLDR METR ST SHK
T-A® Holder






Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeShort
Flute TypeStraight
Overall length mm243.05
Tool Reference Length mm177.80
Body length mm173.05
Drill depth mm114.60
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)3.62
CategoryStocked
