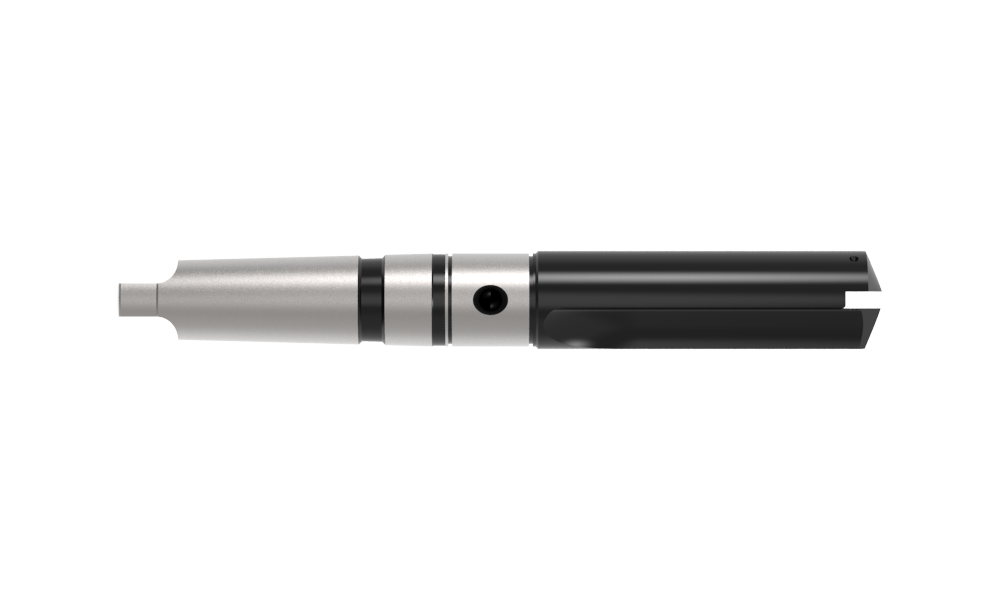

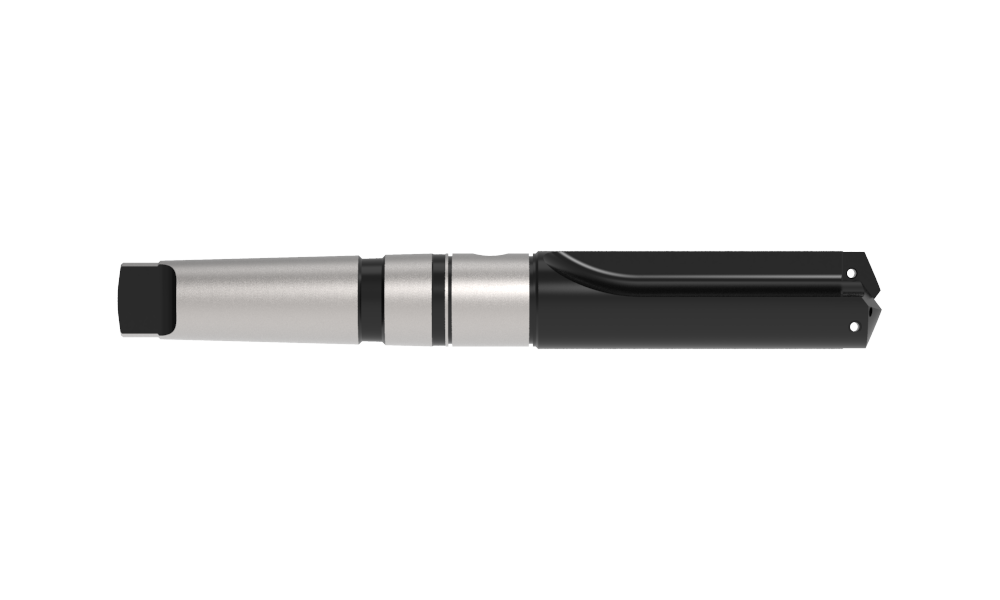

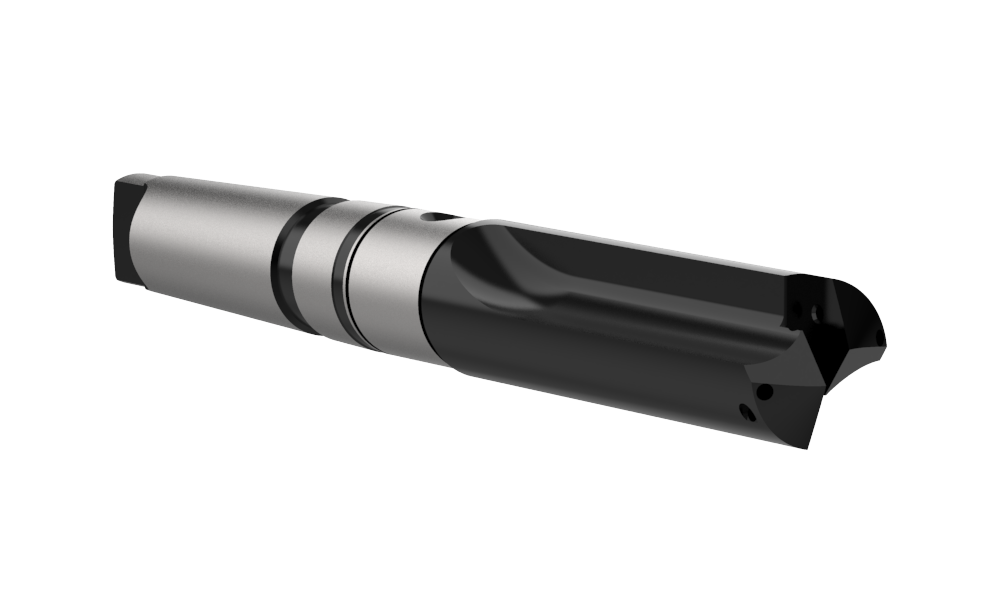

22040S-005M

#4 TA SHT HLDR METR TAP SH

T-A® Holder

See Additional Technical Information

Product Specifications

Series	4
Minimum diameter mm	46.99
Maximum diameter mm	65.30
Length Type	Short
Flute Type	Straight
Overall length mm	363.52
Tool Reference Length mm	219.05
Body length mm	165.10
Drill depth mm	117.27
Shank type	Morse Taper
Shank diameter mm	#5 MT ISO
Pipe tap side inch	1/4
Pipe tap side mm	1/4 BSPT
Deep Hole Guidelines	No
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	7.7
Category	Stocked
