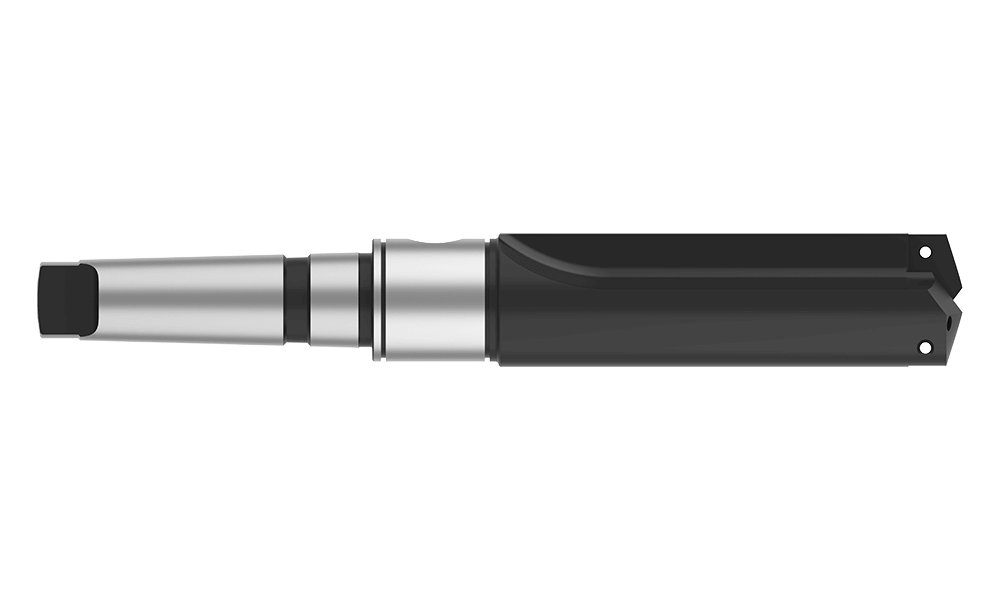

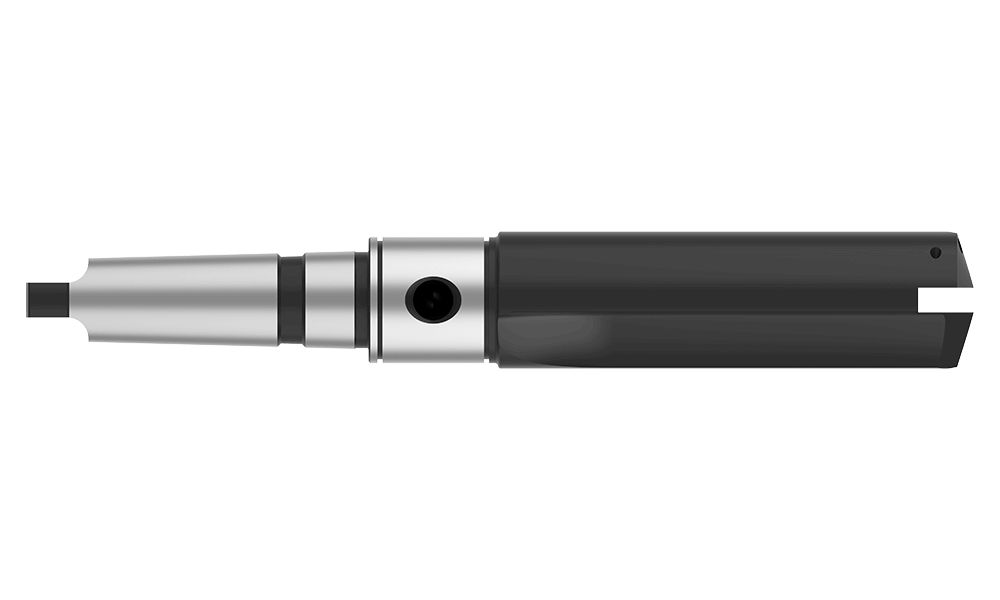

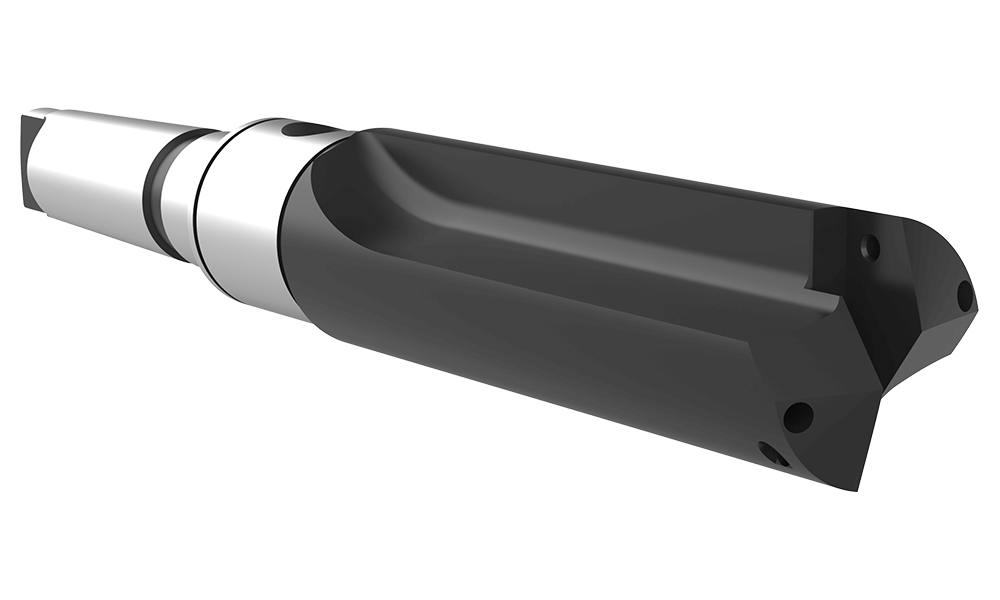

22050S-005M
#5 TA SHT HLDR METR TAP SH
T-A® Holder





See Additional Technical Information

Product Specifications
Series5
Minimum diameter mm62.38
Maximum diameter mm89.09
Length TypeShort
Flute TypeStraight
Overall length mm430.20
Tool Reference Length mm287.32
Body length mm215.90
Drill depth mm163.50
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/2
Pipe tap side mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)13.62
CategoryStocked
