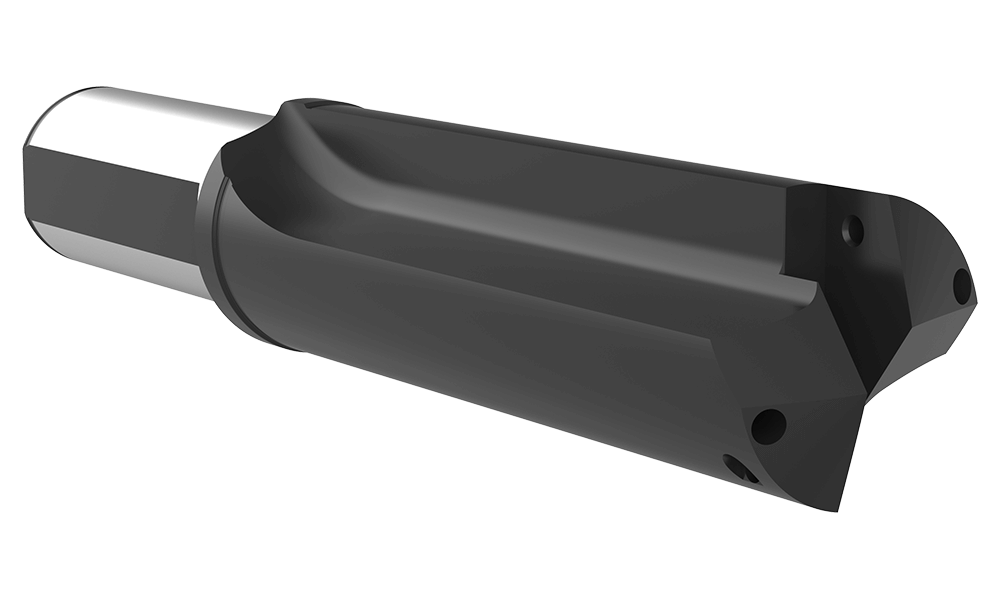

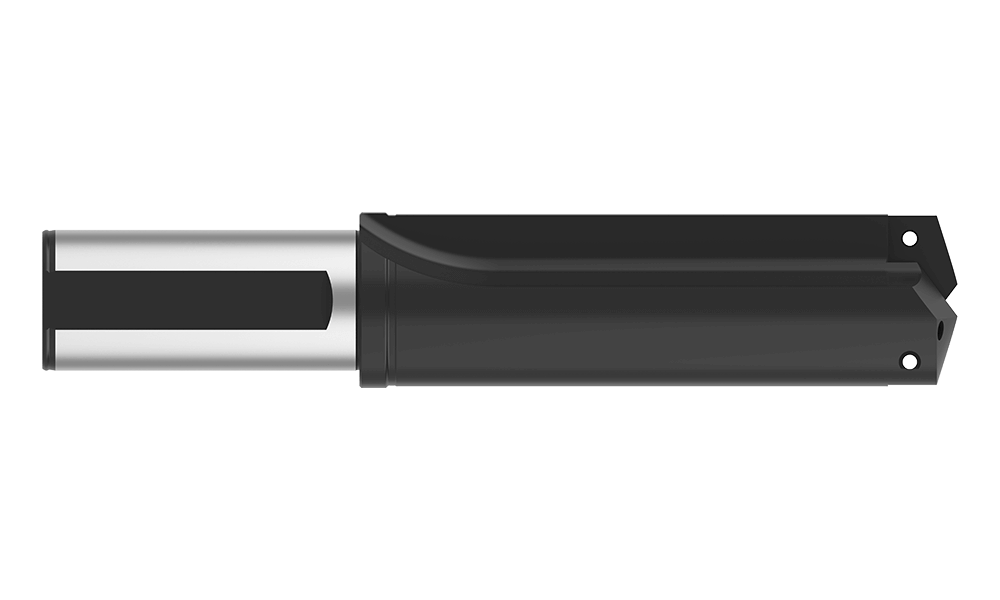

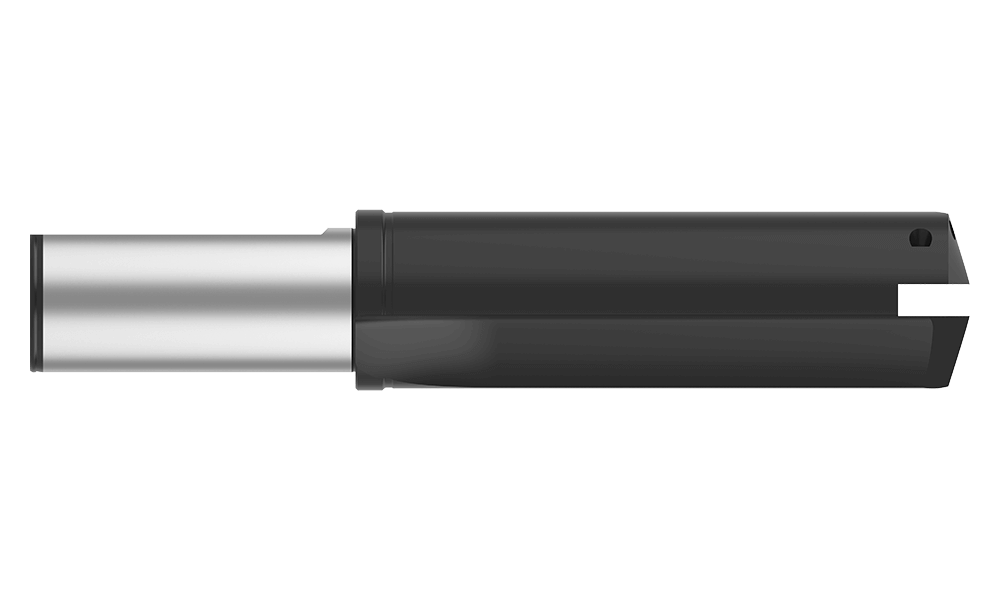

22050S-50FM
#5 TA SHT HLDR METR ST SHK
T-A® Holder






Product Specifications
Series5
Minimum diameter mm62.38
Maximum diameter mm89.09
Length TypeShort
Flute TypeStraight
Overall length mm295.91
Tool Reference Length mm222.25
Body length mm215.90
Drill depth mm165.68
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)10.52
CategoryStocked
