| Series | 7 |
| Minimum diameter inch | 3.5080 |
| Maximum diameter inch | 4.5070 |
| Length Type | Short |
| Flute Type | Straight |
| Overall length inch | 13.875 |
| Tool Reference Length inch | 9.125 |
| Body length inch | 8.875 |
| Drill depth inch | 6.217 |
| Shank type | Lathe |
| Shank diameter inch | 3 |
| Shank length inch | 5.000 |
| Pipe tap rear inch | 1/2 NPT |
| Pipe tap side inch | 1/2 NPT |
| Deep Hole Guidelines | No |

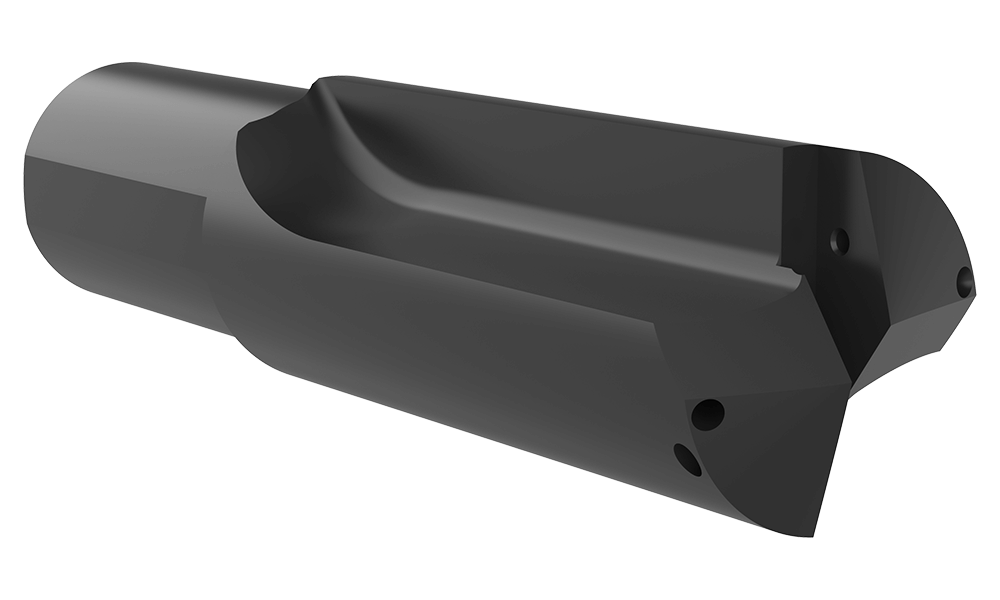

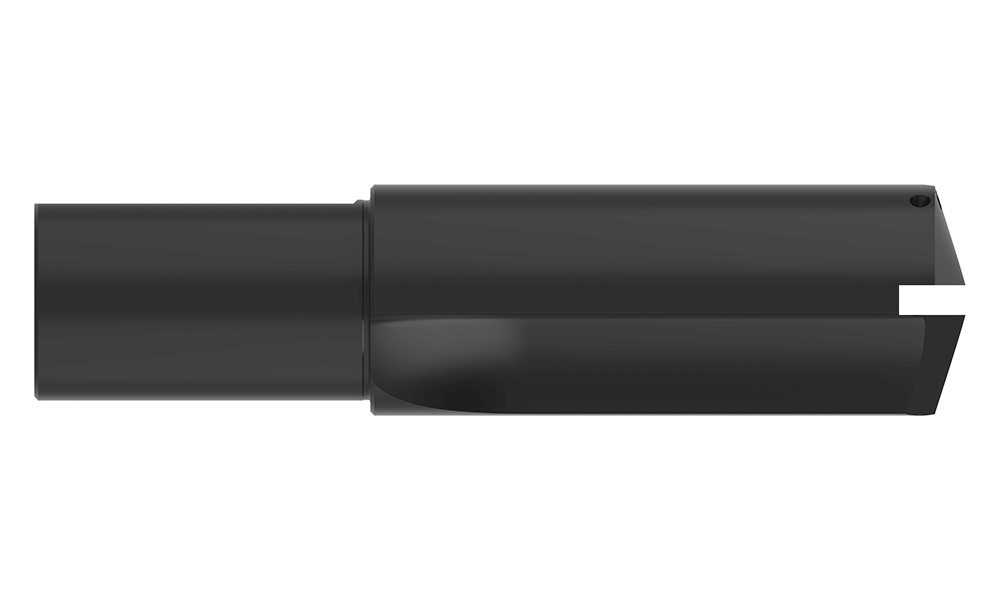

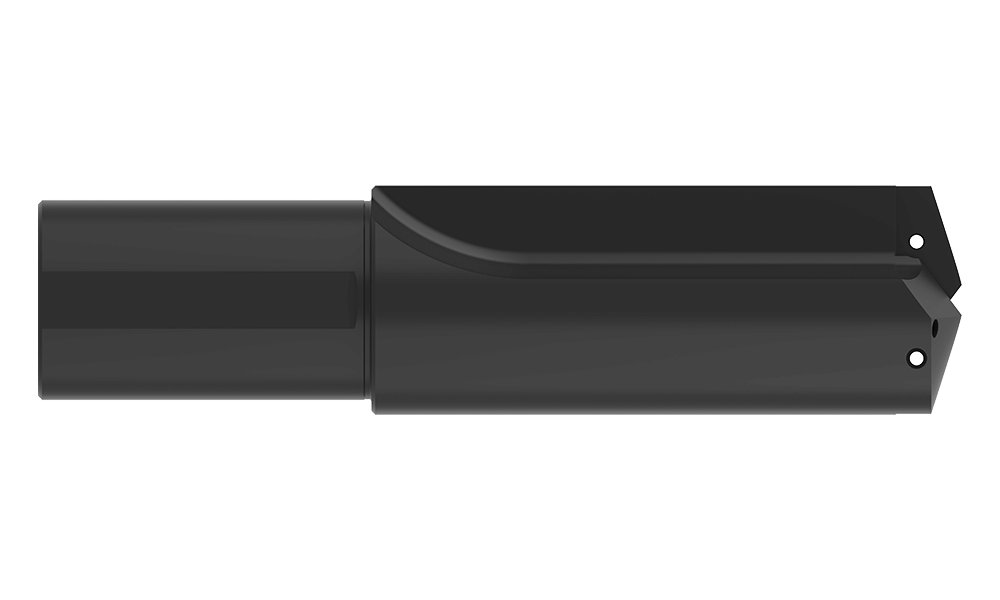

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
