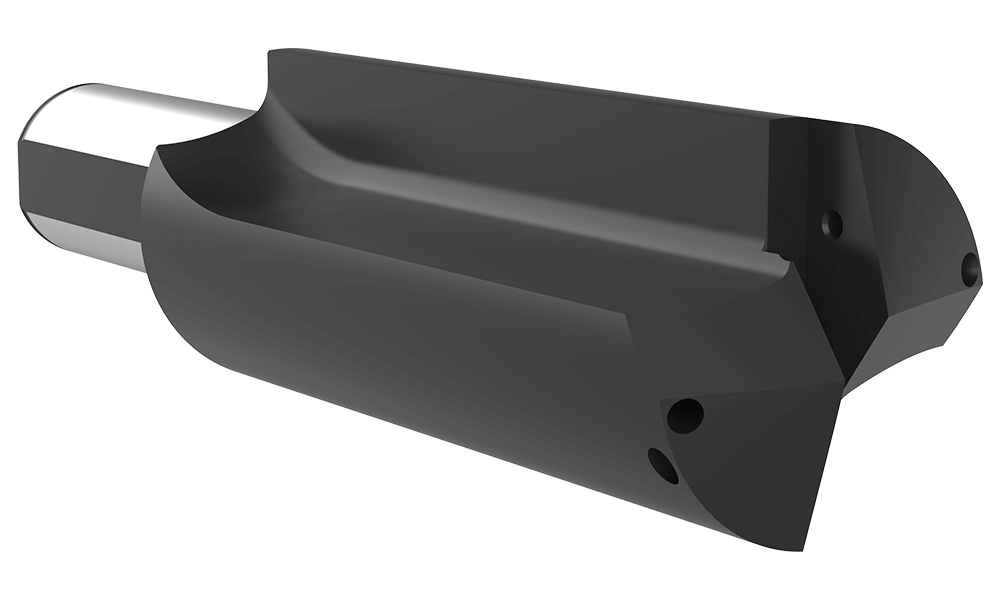

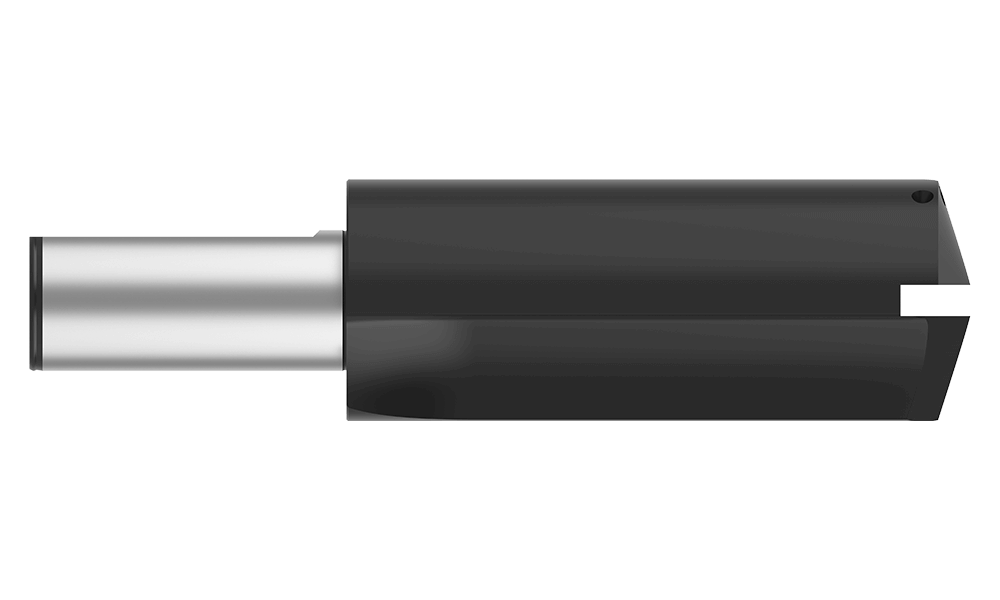

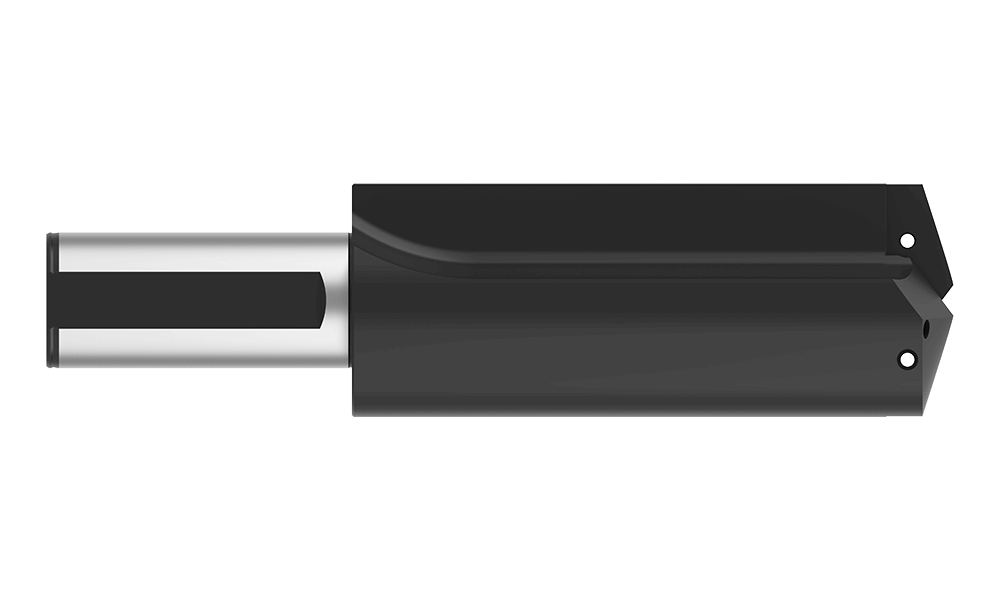

22070S-50FM
#7 TA SHT HLDR METR ST SHK
T-A® Holder






Product Specifications
Series7
Minimum diameter mm89.10
Maximum diameter mm114.48
Length TypeShort
Flute TypeStraight
Overall length mm305.44
Tool Reference Length mm231.78
Body length mm225.43
Drill depth mm178.87
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear inch1/2
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)18.13
CategoryStocked
