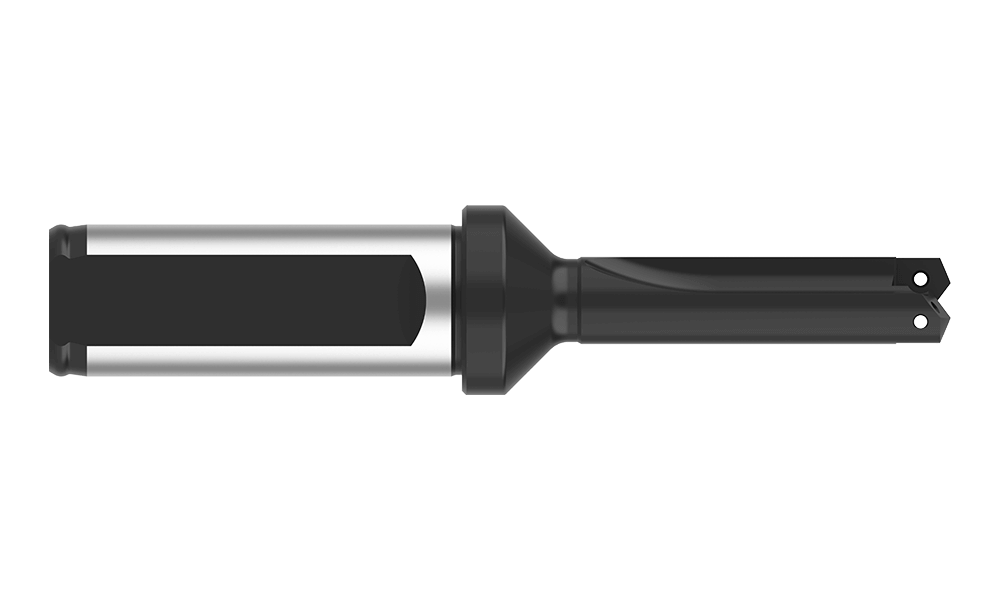

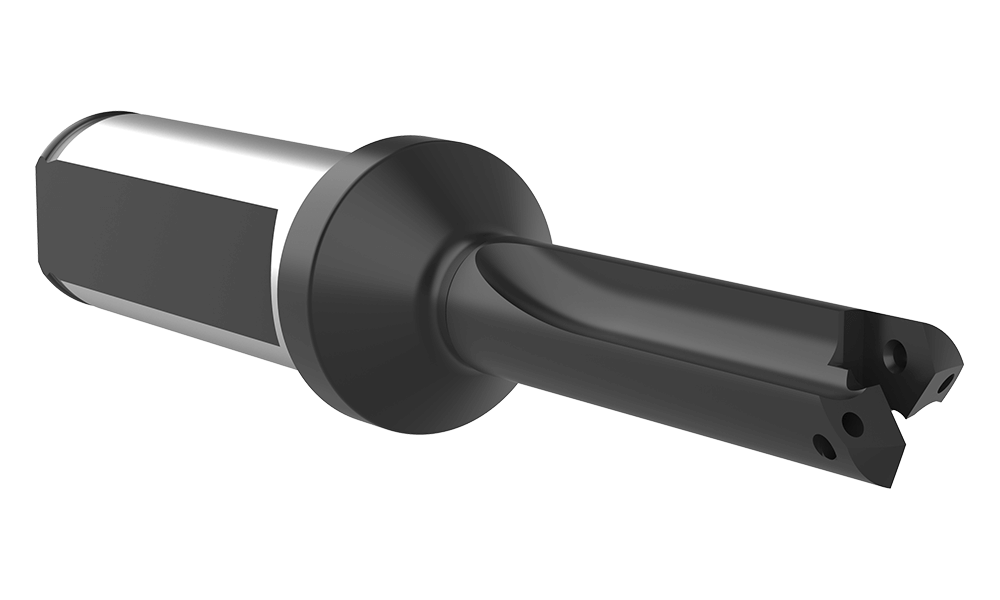

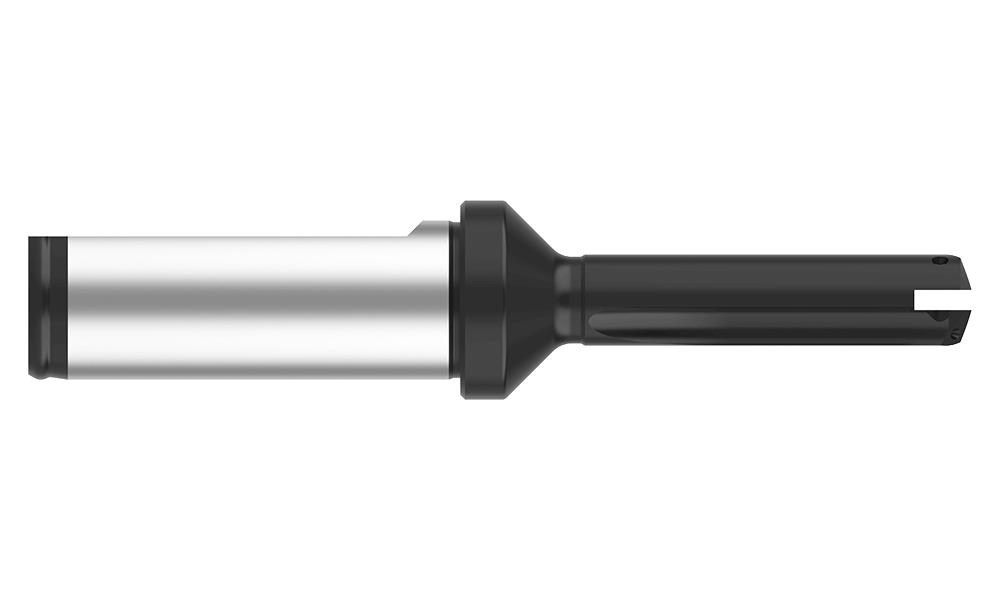

220Z0S-20FM
#Z TA SHT HLDR METR ST SHK
T-A® Holder






Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeShort
Flute TypeStraight
Overall length mm111.13
Tool Reference Length mm63.40
Body length mm61.11
Drill depth mm29.13
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.38
CategoryStocked
