23010H-003M
T-A® Replaceable Drill Body: 17.53 mm - 24.40 mm, Intermediate, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

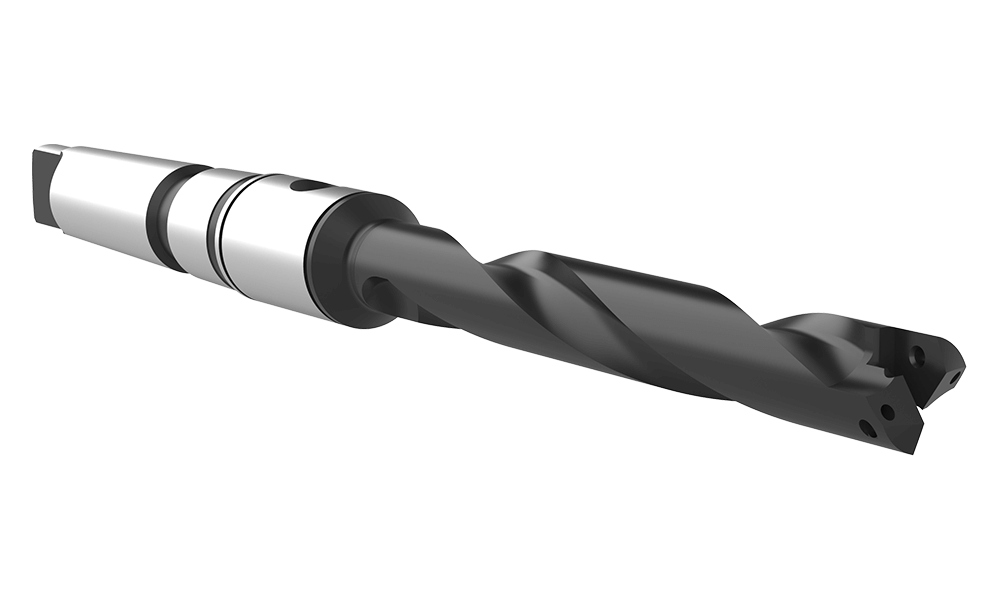

Angle

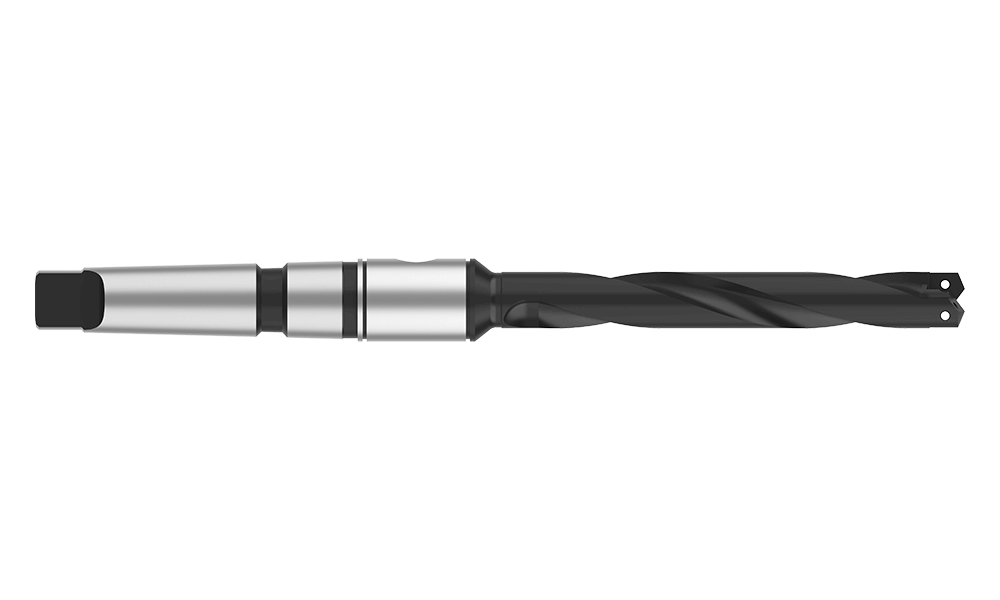

Front

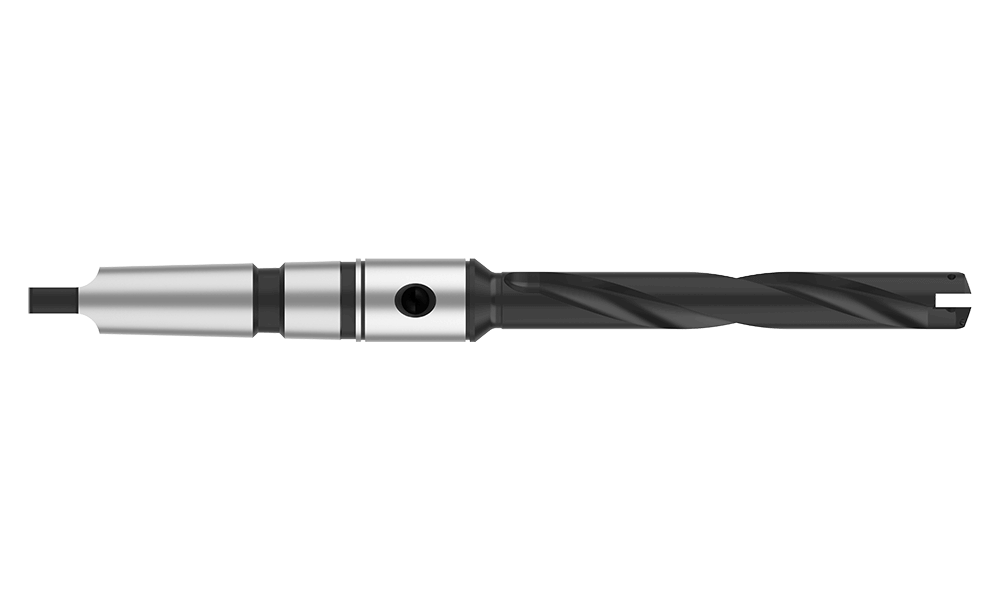

Side
Product Specifications
Series 1
Minimum diameter mm 17.53
Maximum diameter mm 24.40
Length Type Intermediate
Flute Type Helical
Overall length mm 283.4
Tool Reference Length mm 193.2
Body length mm 149.2
Drill depth mm 133.0
Shank type Morse Taper
Shank diameter mm #3 MT ISO
Pipe tap side inch 1/8
Pipe tap side mm 1/8 BSPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.29
Weight in kg (each) 0.59
Category Stocked
