| Series | 1 |
| Minimum diameter inch | 0.6900 |
| Maximum diameter inch | 0.9609 |
| Length Type | Intermediate |
| Flute Type | Helical |
| Overall length inch | 8.374 |
| Tool Reference Length inch | 6.234 |
| Body length inch | 6.094 |
| Drill depth inch | 5.229 |
| Shank type | Flanged |
| Shank diameter inch | 1 |
| Shank length inch | 2.280 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | No |

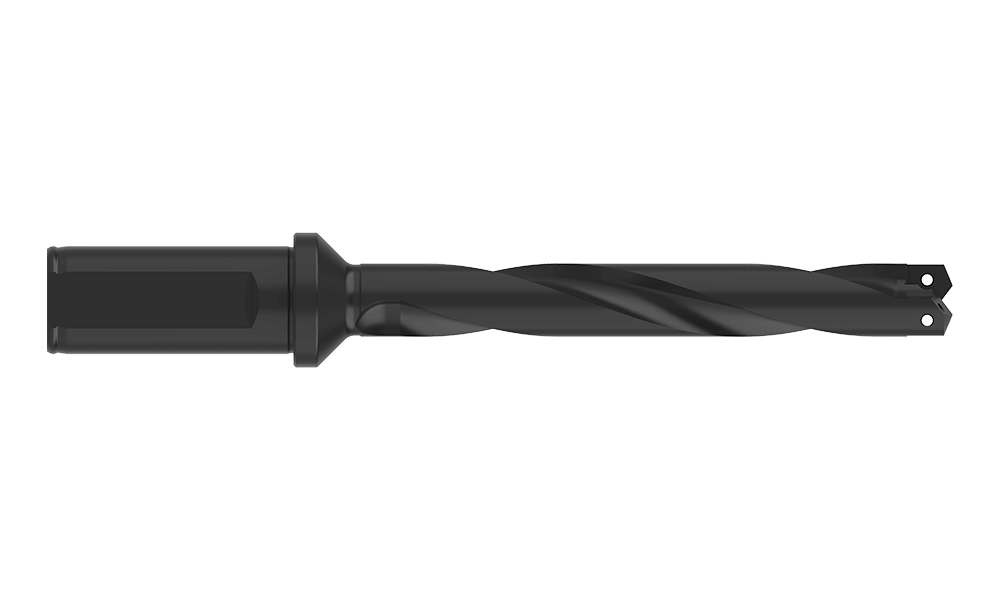

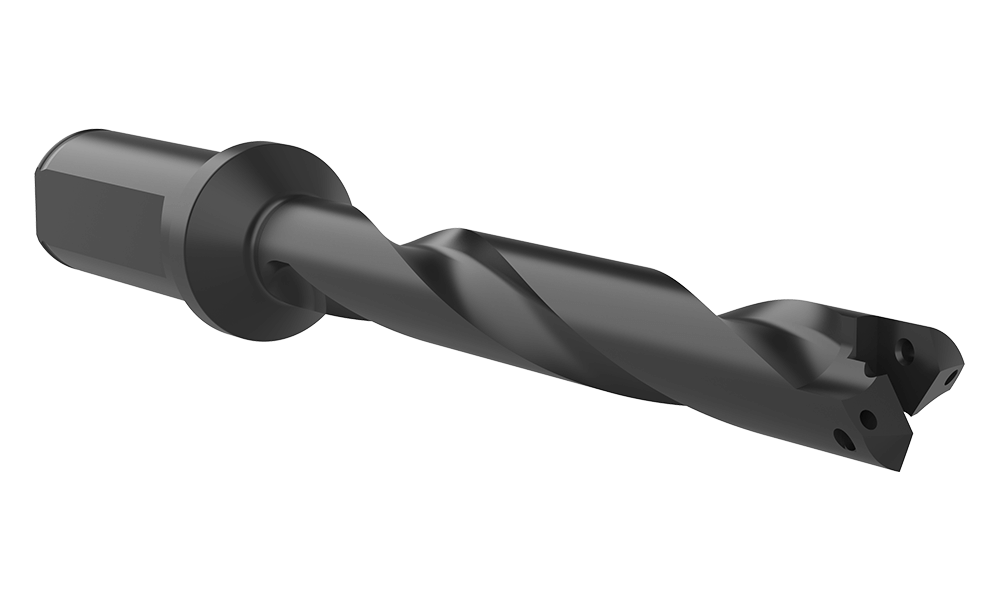

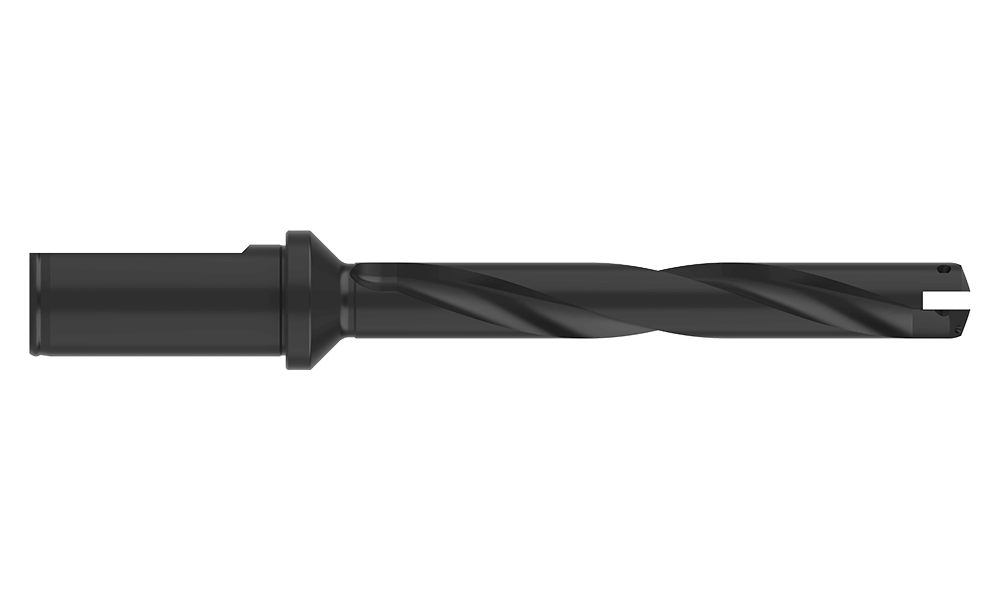

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
