23010H-25FM
#1 TA INT HLDR METR ST SHK

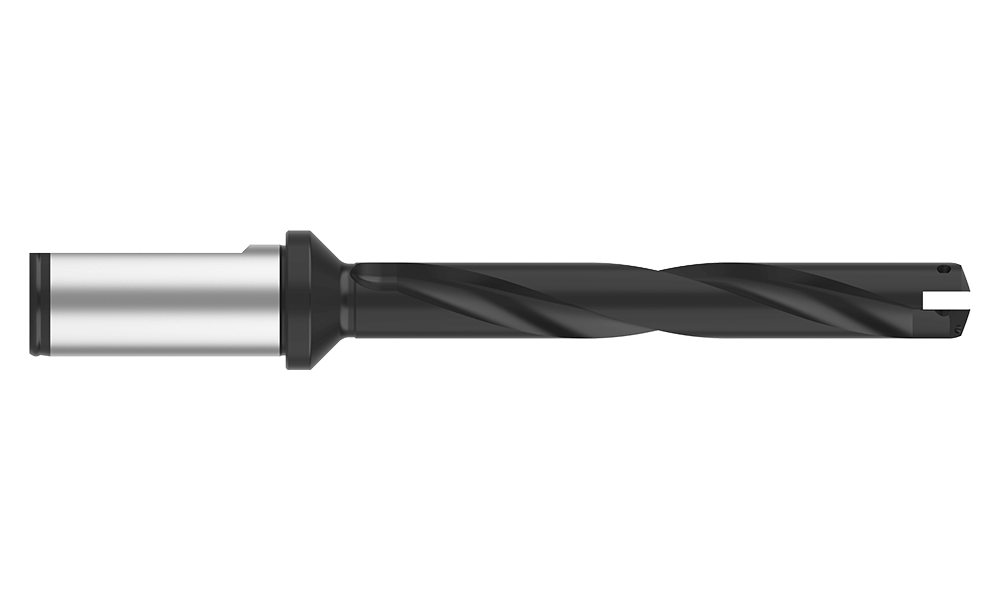

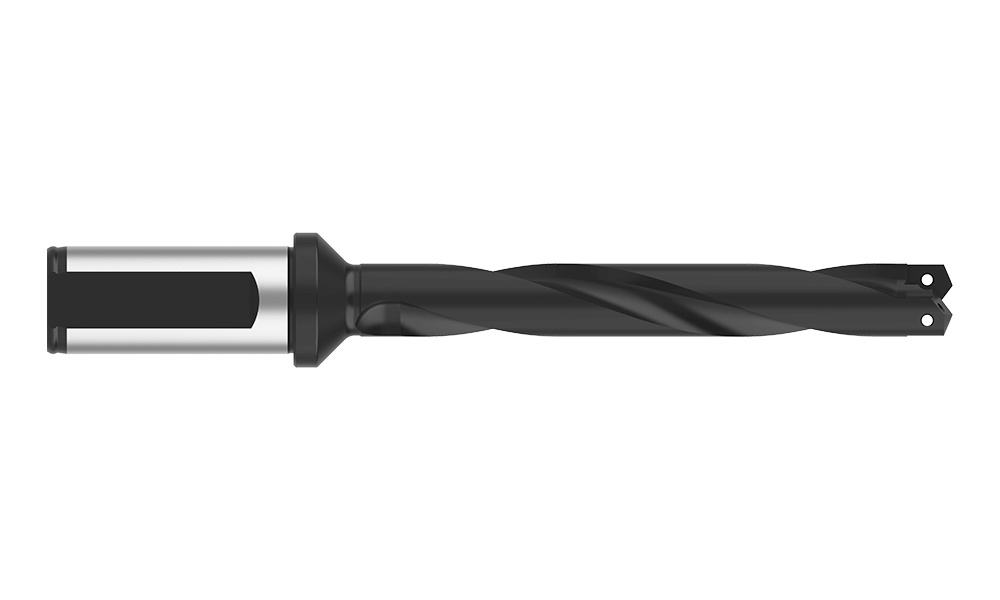

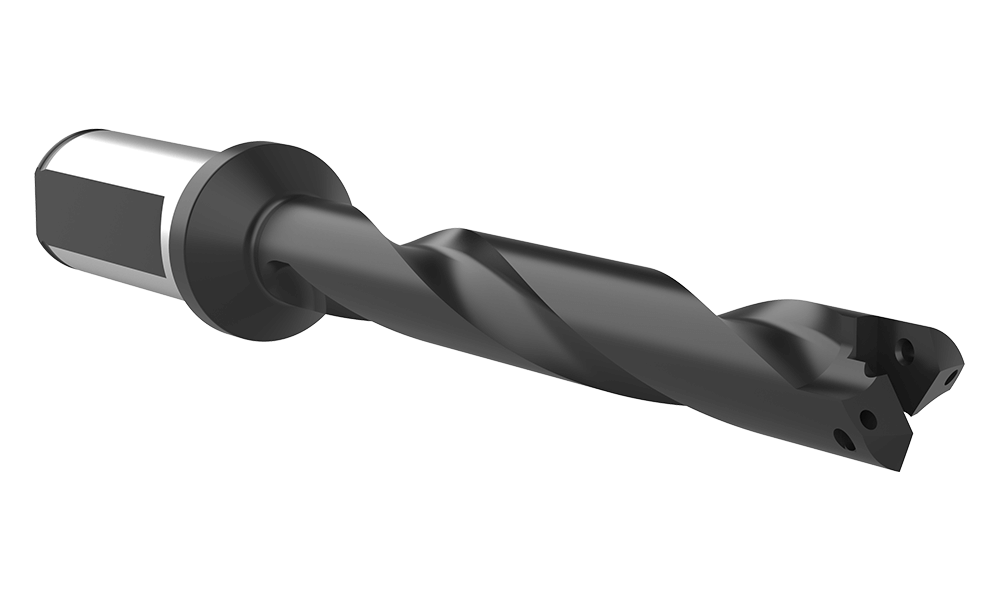

T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Minimum diameter mm17.53
Maximum diameter mm24.40
Length TypeIntermediate
Flute TypeHelical
Overall length mm210.79
Tool Reference Length mm158.34
Body length mm154.79
Drill depth mm132.82
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.98
CategoryStocked
