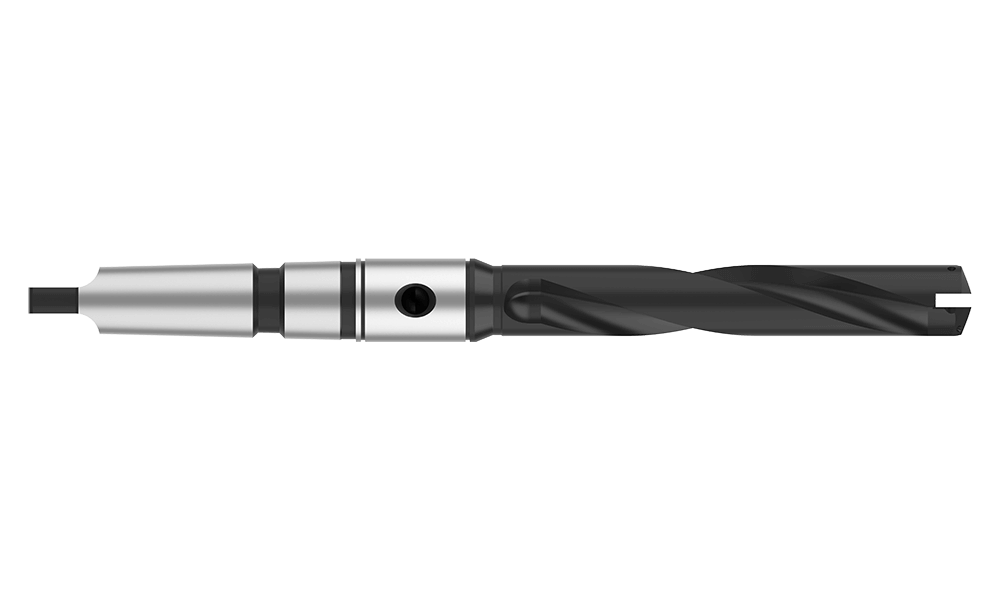

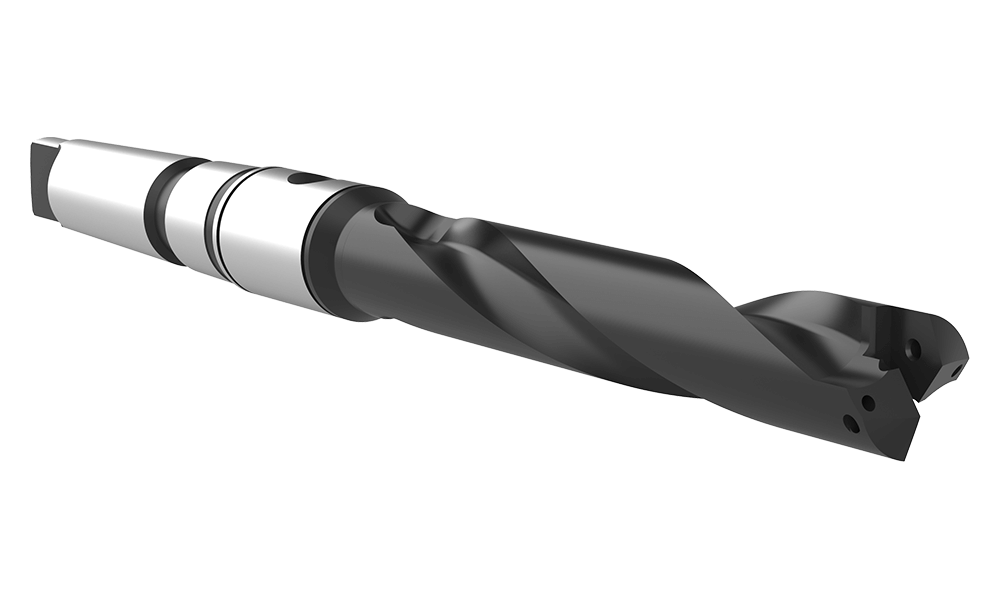

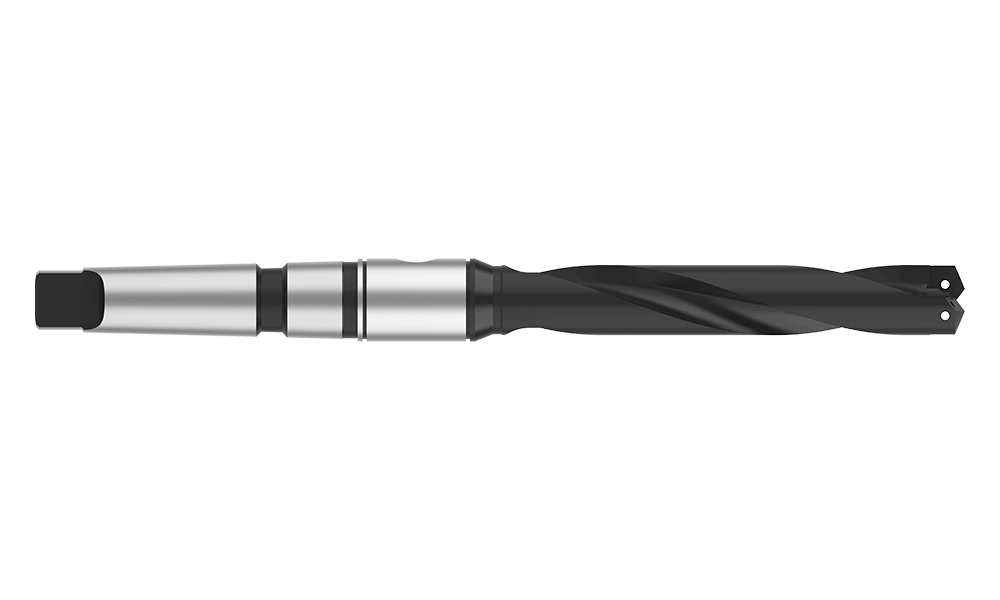

23015H-003M
#1.5 TA INT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Sub-Series.5
Minimum diameter mm21.83
Maximum diameter mm24.40
Length TypeIntermediate
Flute TypeHelical
Overall length mm283.36
Tool Reference Length mm193.24
Body length mm149.23
Drill depth mm132.59
Shank typeMorse Taper
Shank diameter mm#3 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.49
CategoryStocked
