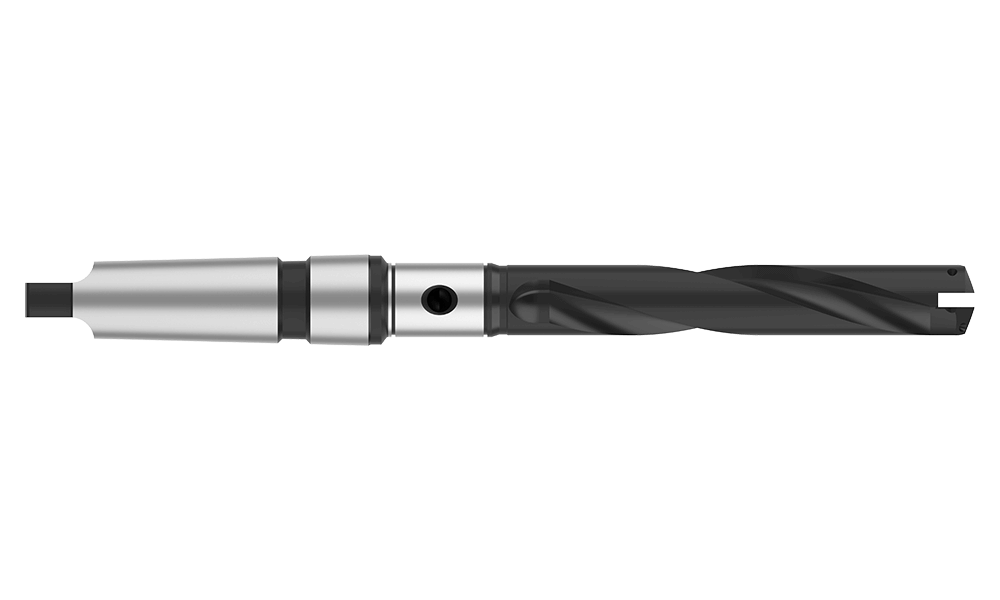

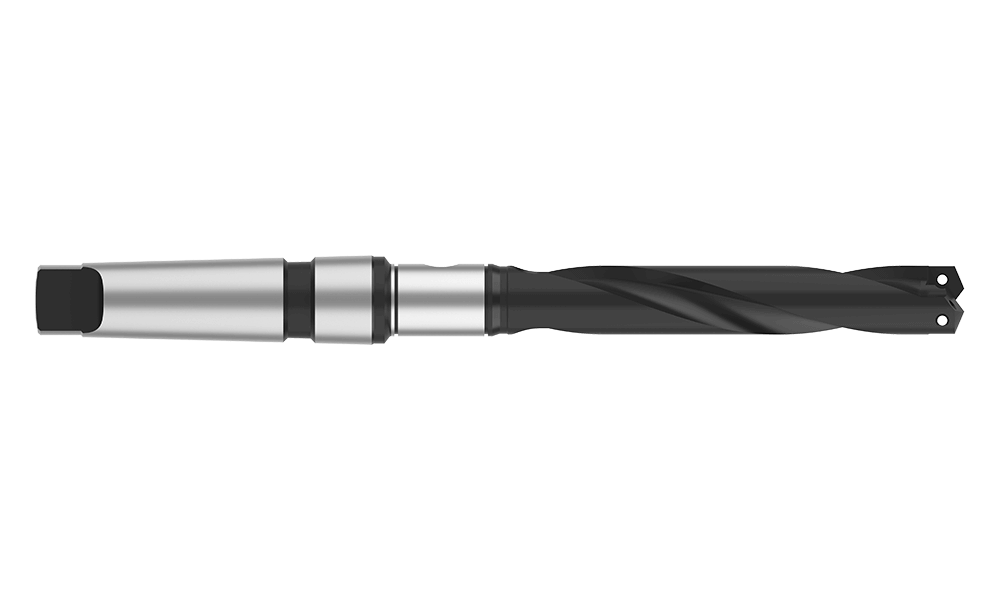

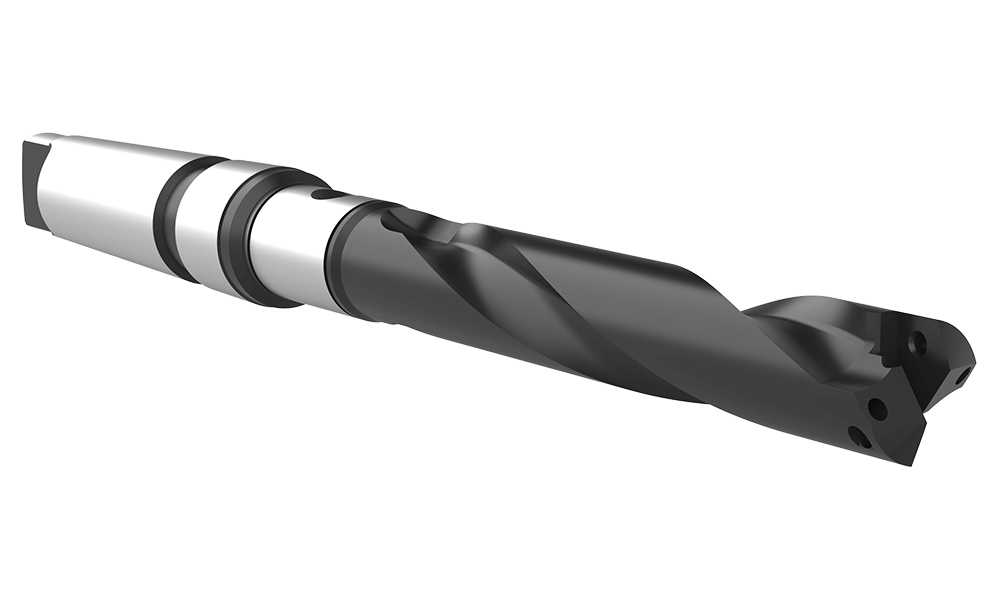

23020H-004M
#2 TA INT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Minimum diameter mm24.41
Maximum diameter mm35.06
Length TypeIntermediate
Flute TypeHelical
Overall length mm324.6
Tool Reference Length mm210.7
Body length mm165.1
Drill depth mm148.6
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.43
CategoryStocked
