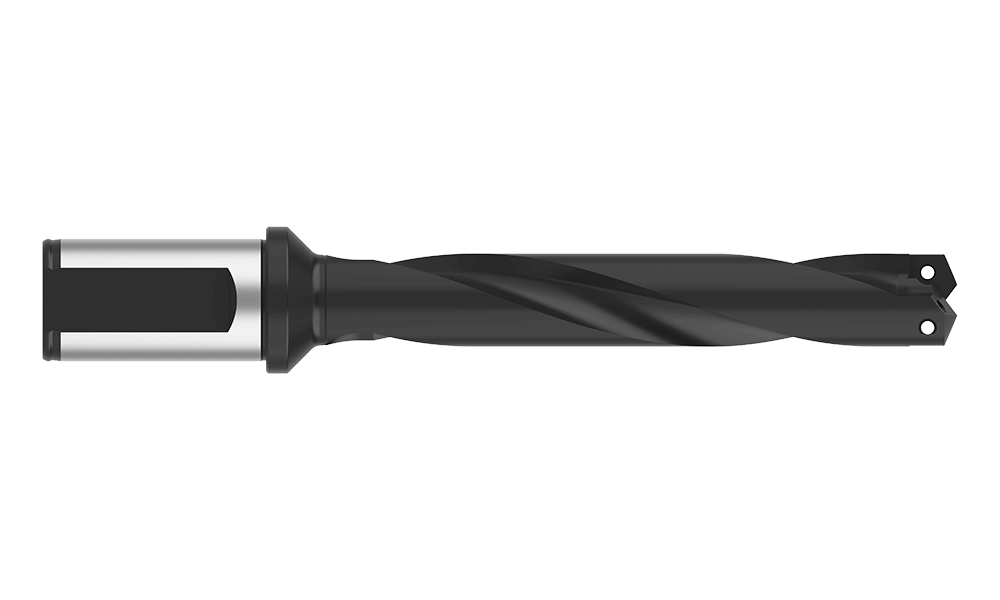

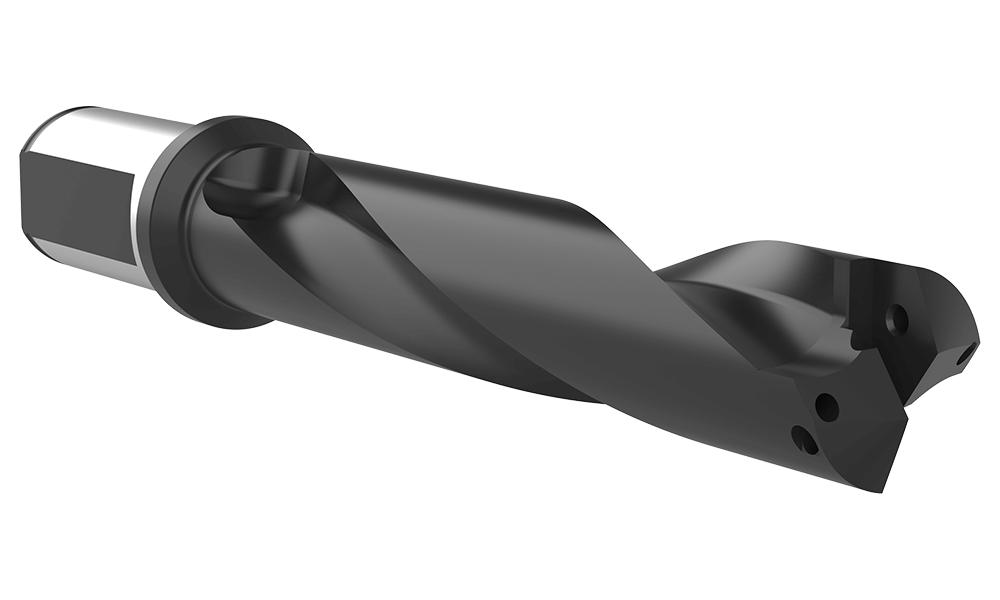

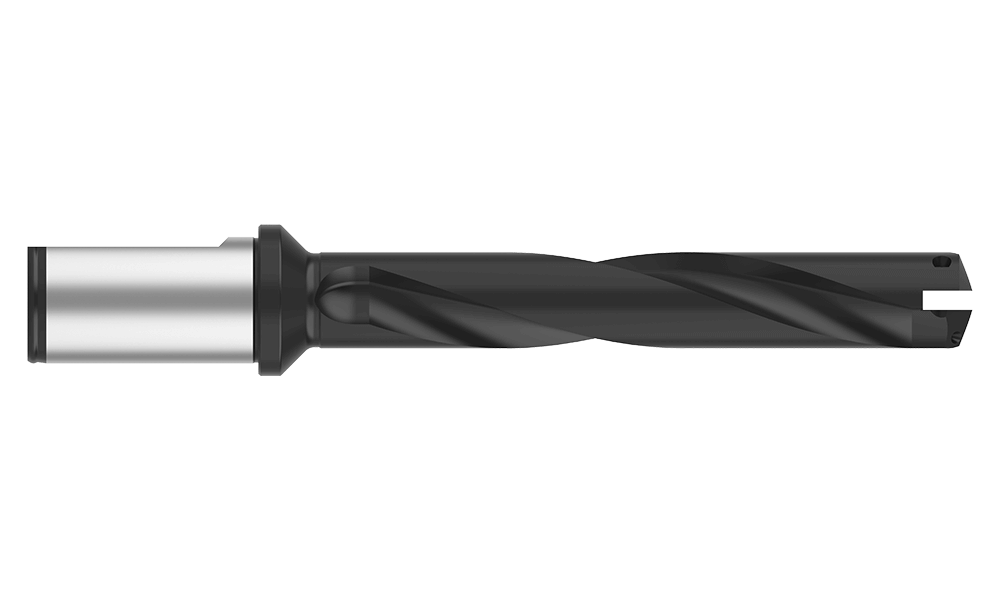

23020H-32FM
#2 TA INT HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Minimum diameter mm24.41
Maximum diameter mm35.06
Length TypeIntermediate
Flute TypeHelical
Overall length mm239.40
Tool Reference Length mm182.96
Body length mm179.40
Drill depth mm154.76
Shank typeFlanged
Shank diameter mm32
Shank length mm60.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.89
CategoryStocked
