| Series | 2 |
| Minimum diameter inch | 0.9610 |
| Maximum diameter inch | 1.3809 |
| Length Type | Intermediate |
| Flute Type | Straight |
| Overall length inch | 10.000 |
| Tool Reference Length inch | 6.640 |
| Body length inch | 6.500 |
| Drill depth inch | 5.119 |
| Shank type | Lathe |
| Shank diameter inch | 1-1/4 |
| Shank length inch | 3.5000 |
| Pipe tap rear inch | 1/8 NPT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

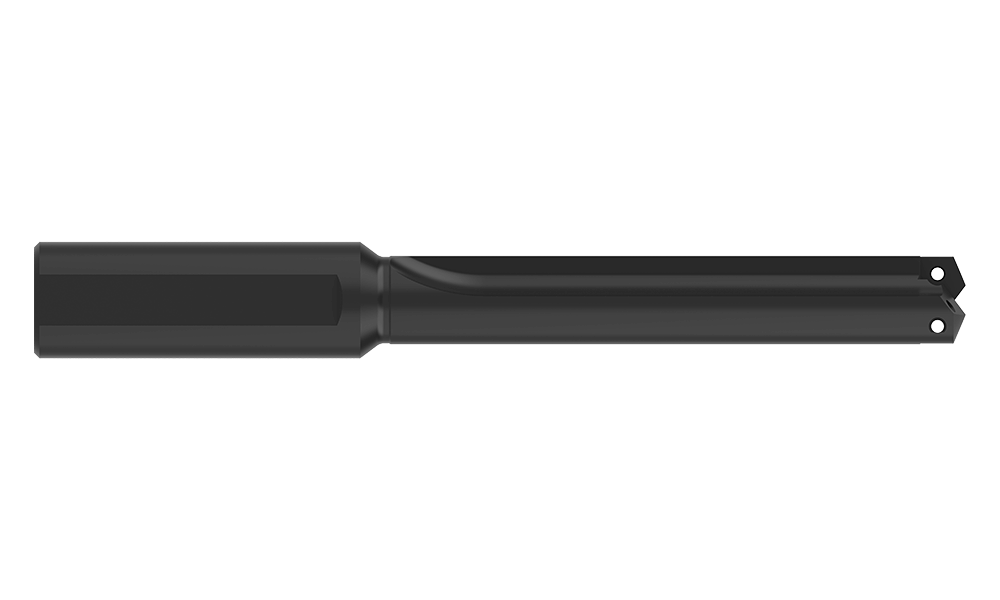

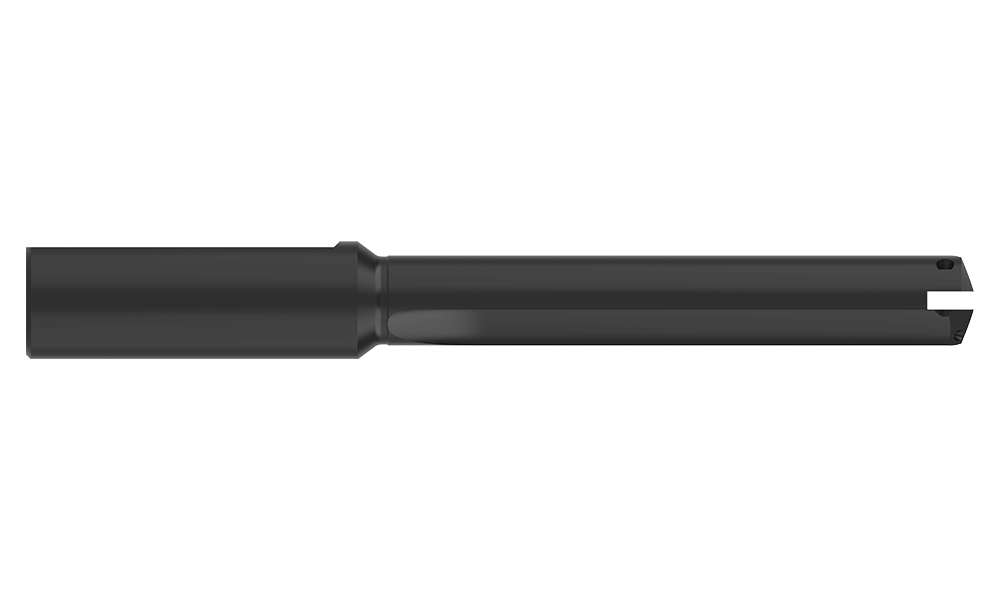

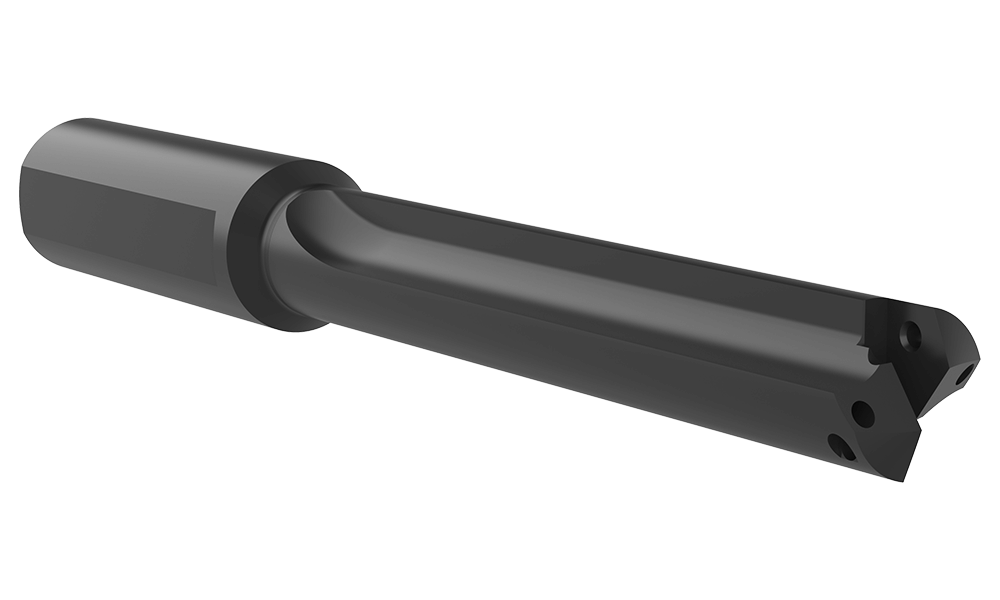

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
