23030H-004M

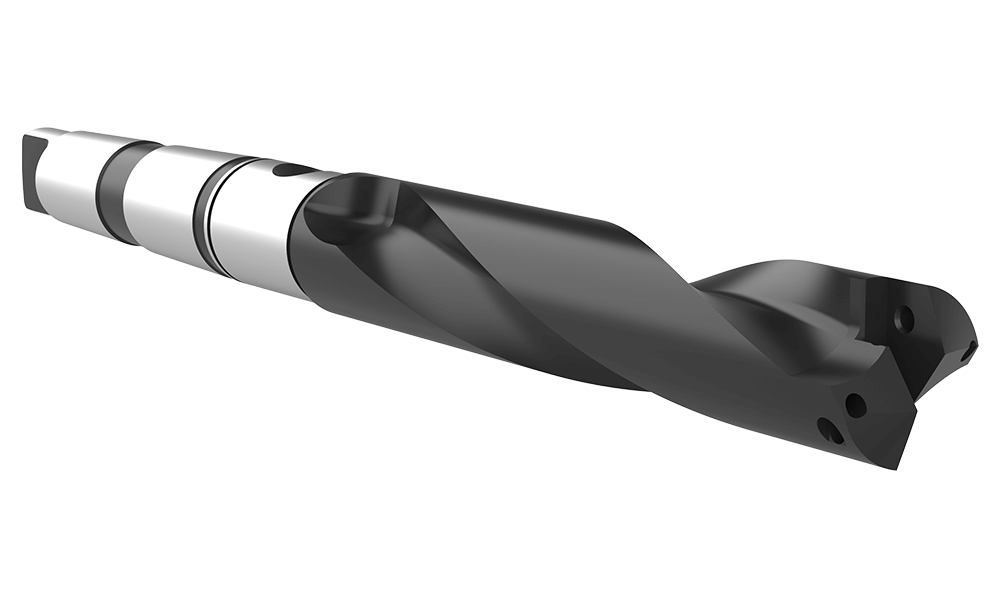

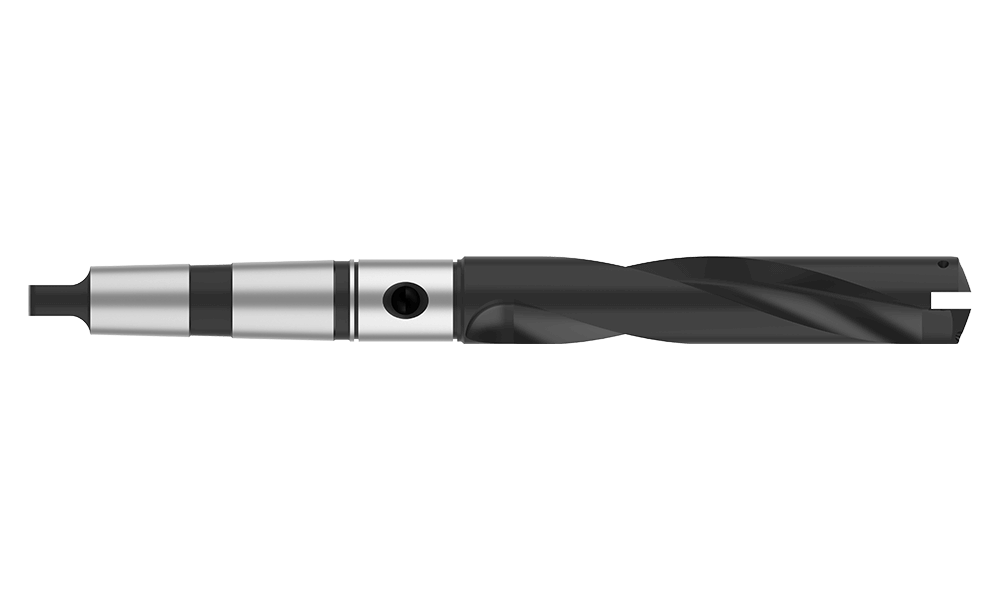

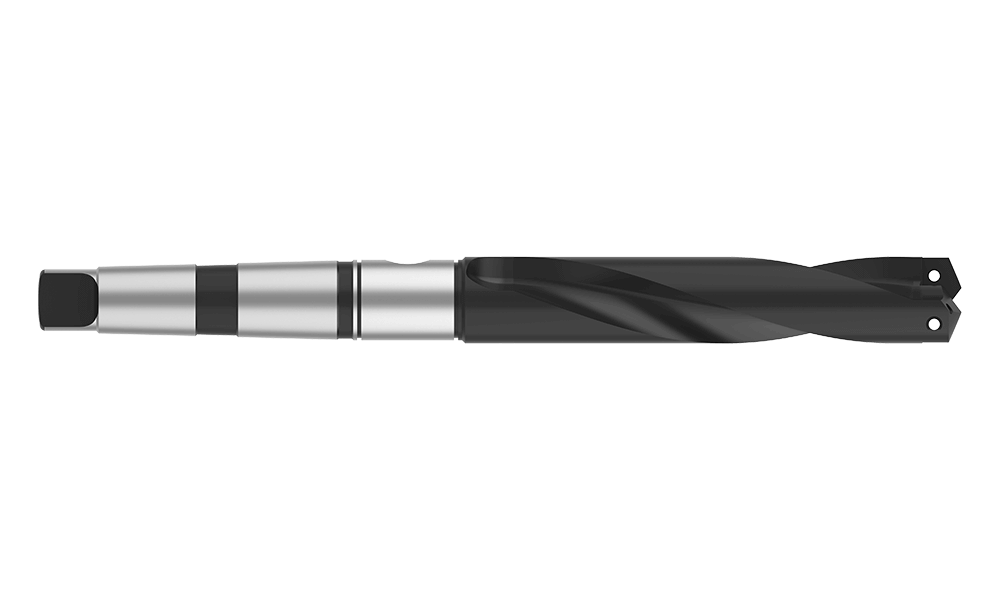

#3 TA INT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeIntermediate
Flute TypeHelical
Overall length mm363.52
Tool Reference Length mm250.80
Body length mm196.85
Drill depth mm179.83
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)3.91
CategoryStocked
