| Series | 3 |
| Minimum diameter inch | 1.3530 |
| Maximum diameter inch | 1.8829 |
| Length Type | Intermediate |
| Flute Type | Straight |
| Overall length inch | 11.750 |
| Tool Reference Length inch | 7.937 |
| Body length inch | 7.750 |
| Drill depth inch | 5.798 |
| Shank type | Lathe |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 4.000 |
| Pipe tap rear inch | 1/4 NPT |
| Pipe tap side inch | 1/4 NPT |
| Deep Hole Guidelines | No |

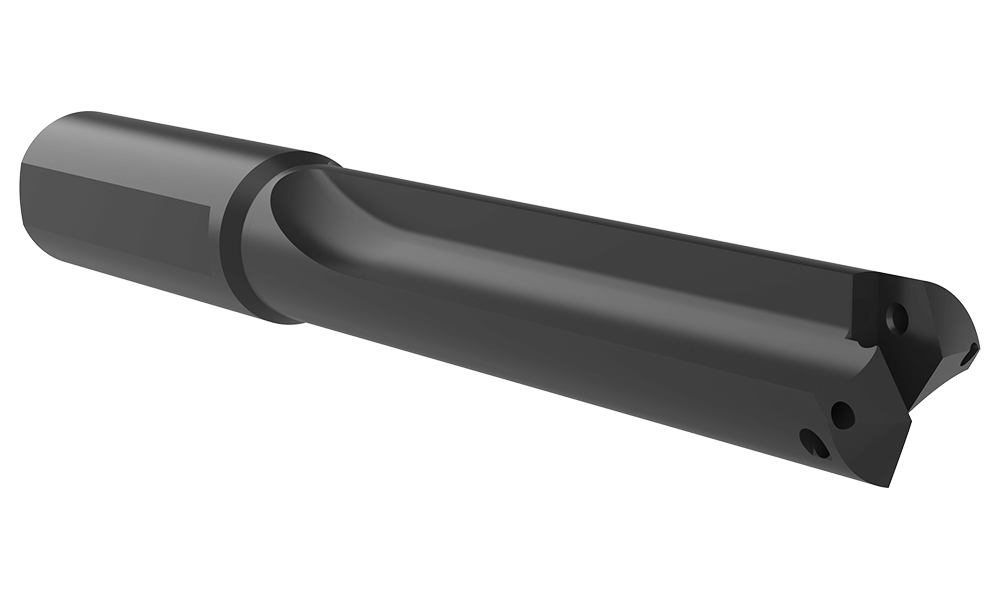

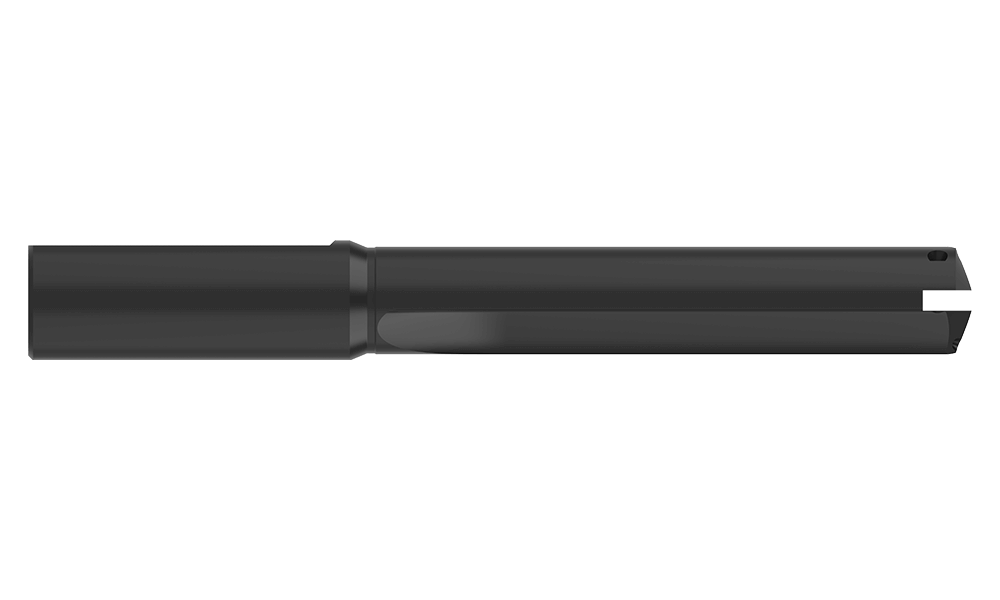

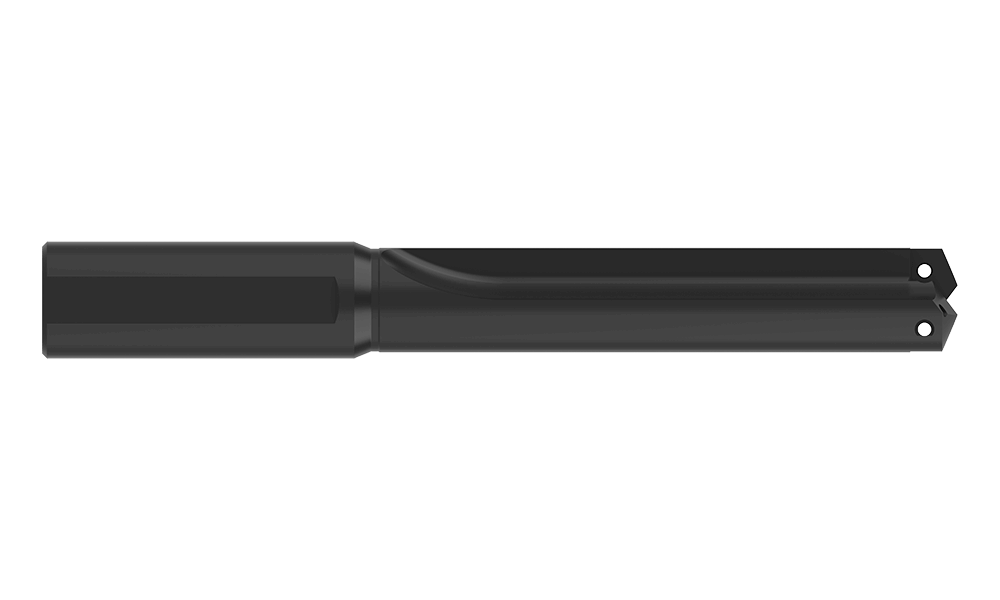

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
