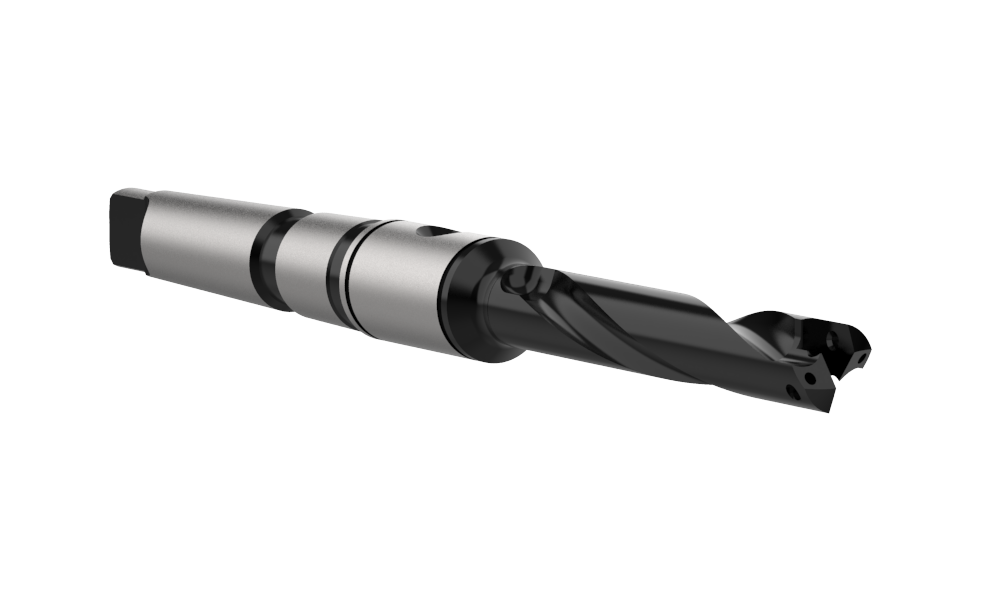

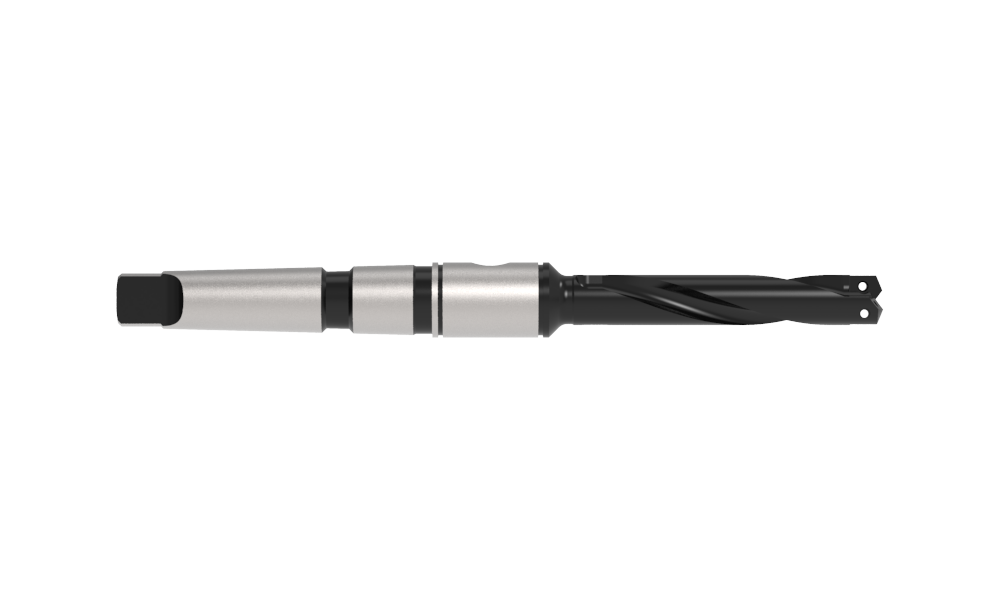

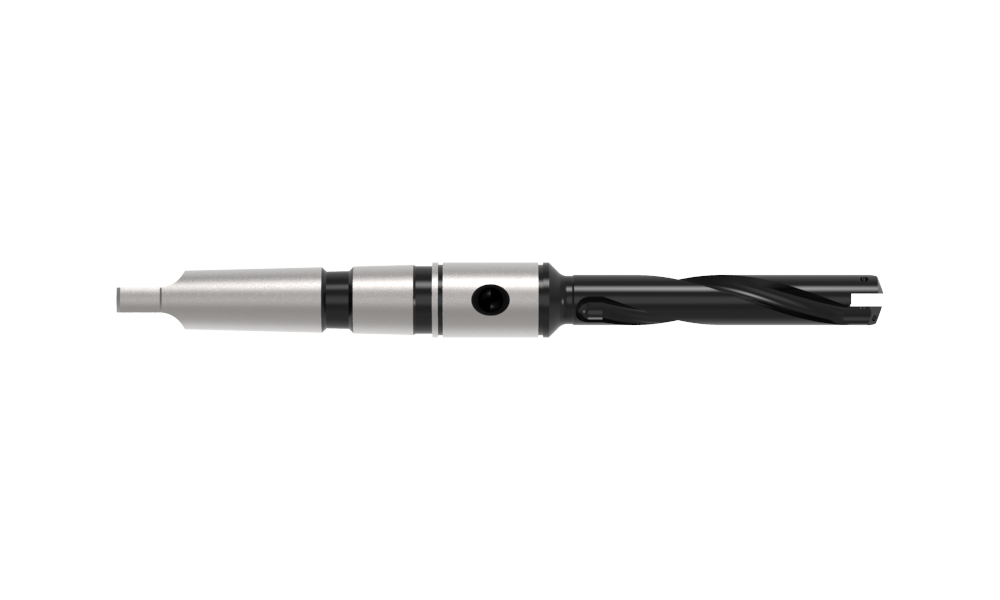

24000H-002M
#0 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series0
Minimum diameter mm12.98
Maximum diameter mm17.67
Length TypeStandard
Flute TypeHelical
Overall length mm192.9
Tool Reference Length mm121.0
Body length mm84.2
Drill depth mm73.9
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
72556-IP8-1     (Qty: 0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
8IP-8     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.52
CategoryStocked
