24010S-004I
T-A® Replaceable Drill Body: 0.6900" - 0.9609", Standard, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

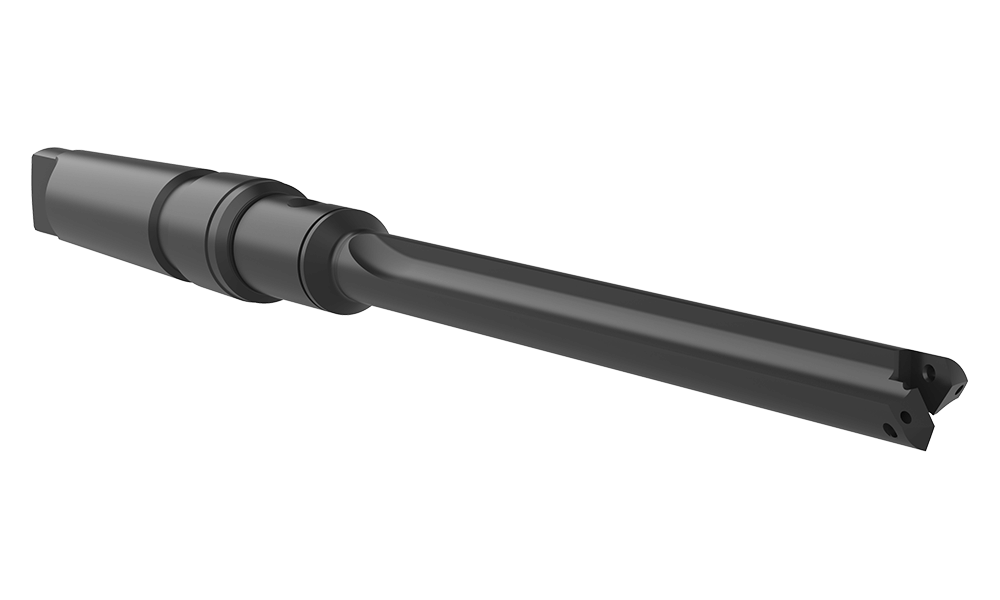

Angle

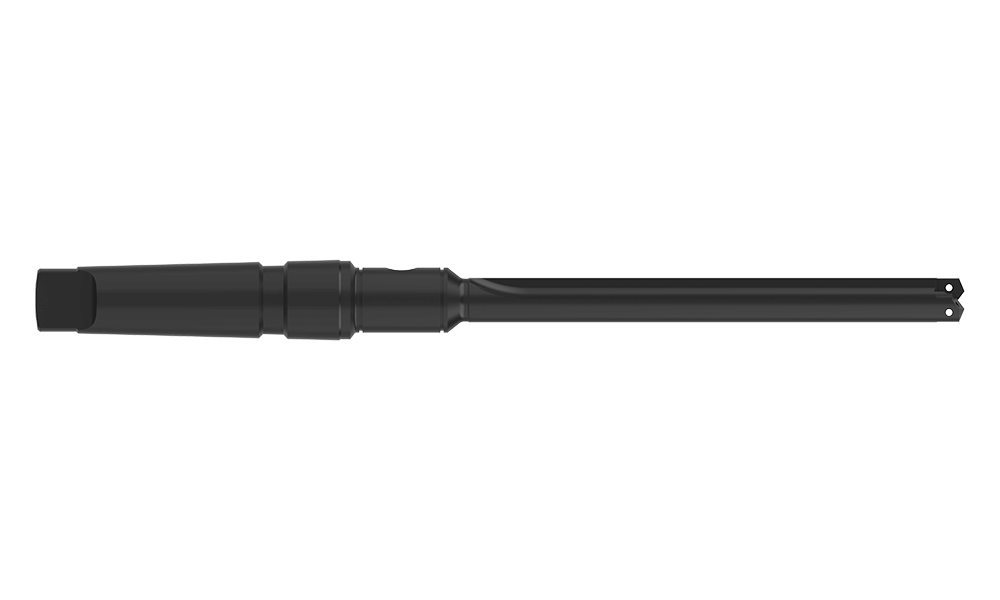

Front

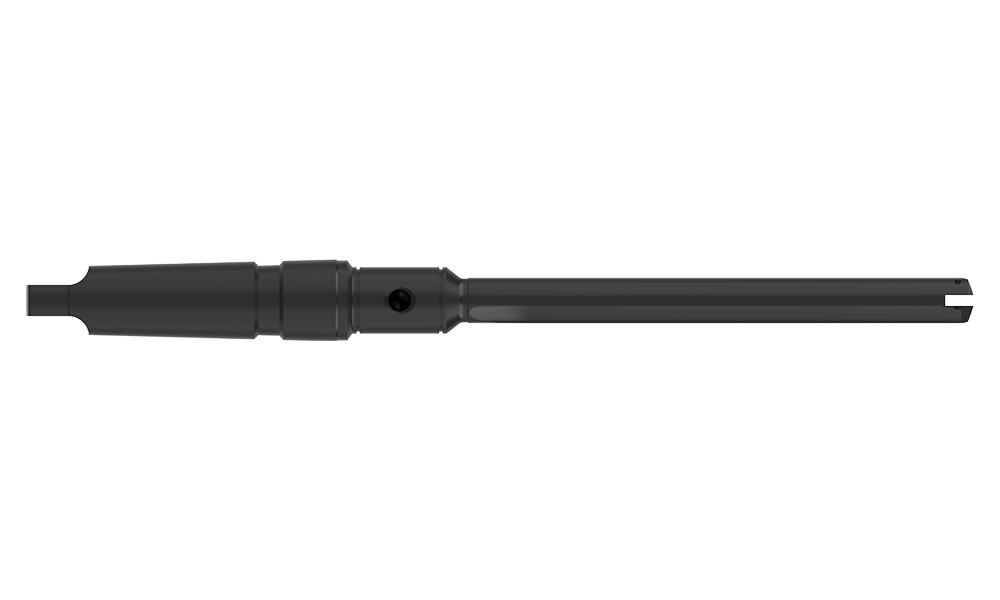

Side
Product Specifications
Series 1
Minimum diameter inch 0.6900
Maximum diameter inch 0.9609
Length Type Standard
Flute Type Straight
Overall length inch 14.156
Tool Reference Length inch 9.671
Body length inch 7.875
Drill depth inch 6.631
Shank type Morse Taper
Shank diameter inch #4 MT
Pipe tap side inch 1/8 NPT
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.12
Weight in kg (each) 0.96
Category Stocked
