24015H-003IS056

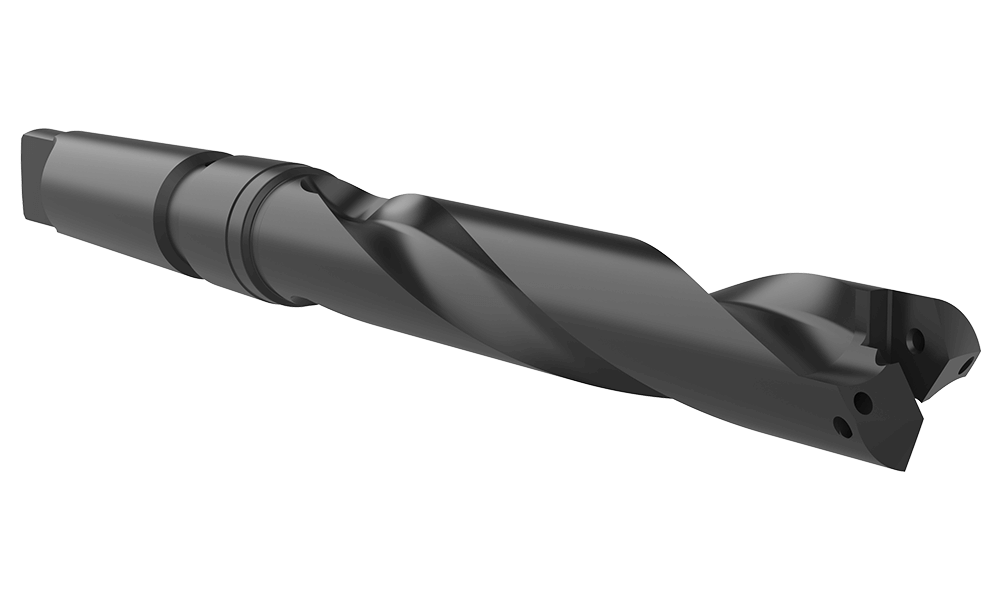

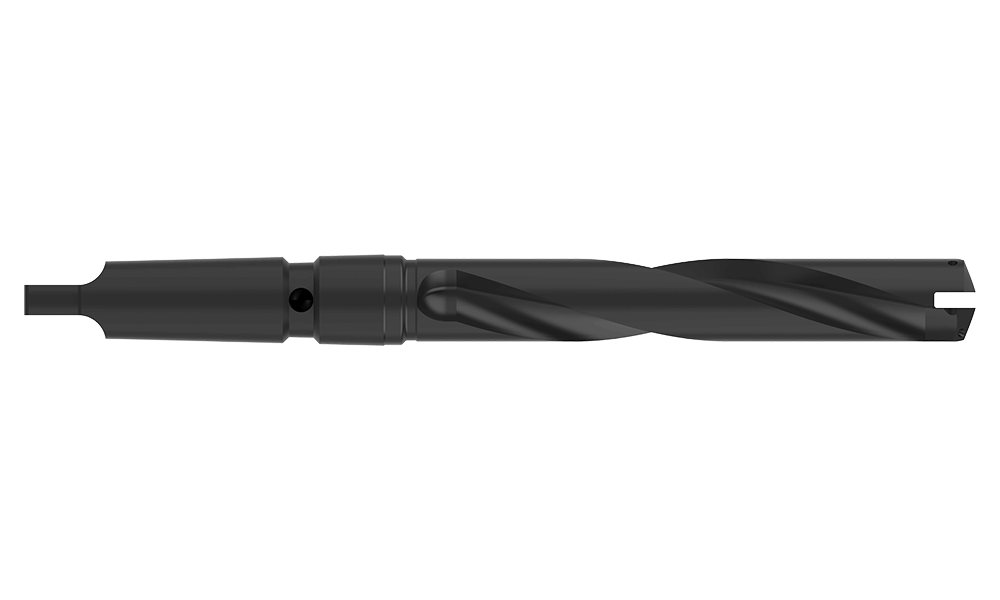

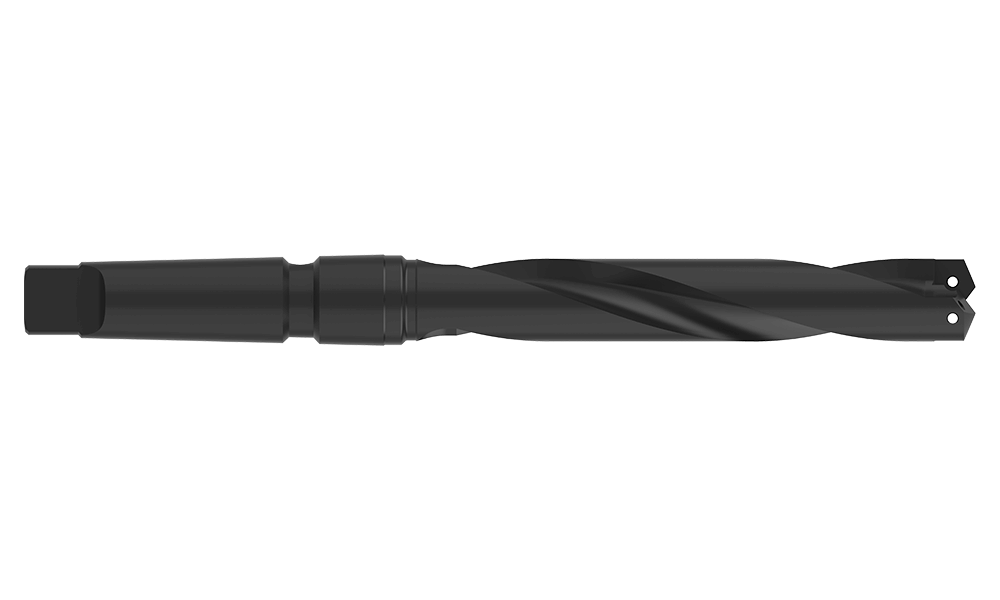

T-A® Structural Steel Replaceable Drill Body: 0.8661" - 0.9609", Standard, Morse Taper (SS) Shank
T-A® SS Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Series 1
Sub-Series .5
Minimum diameter inch 0.8661
Maximum diameter inch 0.9609
Length Type Standard
Flute Type Helical
Overall length inch 9.829
Tool Reference Length inch 6.078
Body length inch 5.954
Drill depth inch 5.519
Shank type Morse Taper (SS)
Shank diameter inch #3 MT
Coolant Inlet Style Rear Through Tang Coolant
Coolant Inlet Style Side Through Shank Coolant
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application Structural Steel
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.18
Weight in kg (each) 0.54
Category Stocked
