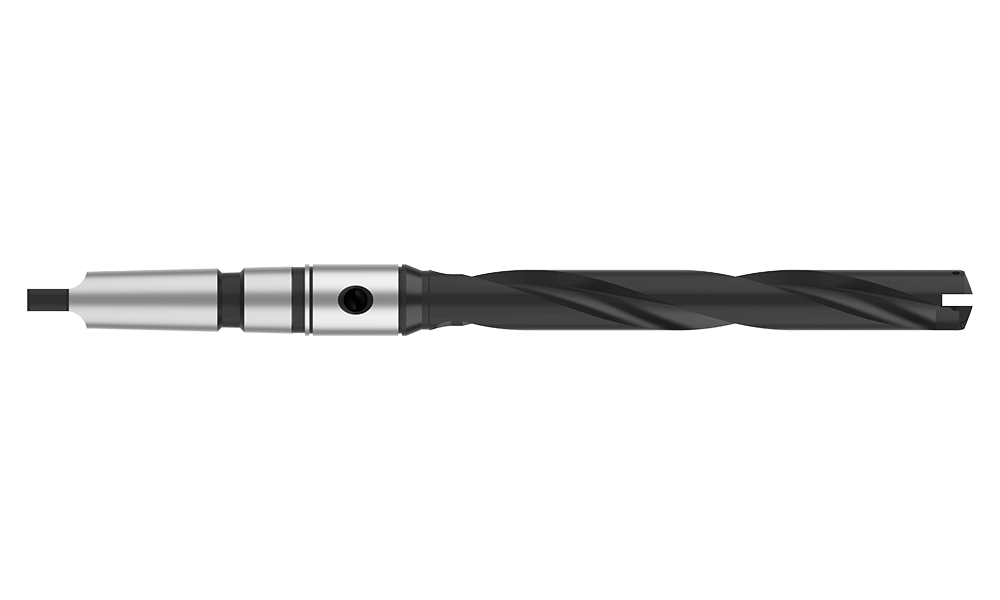

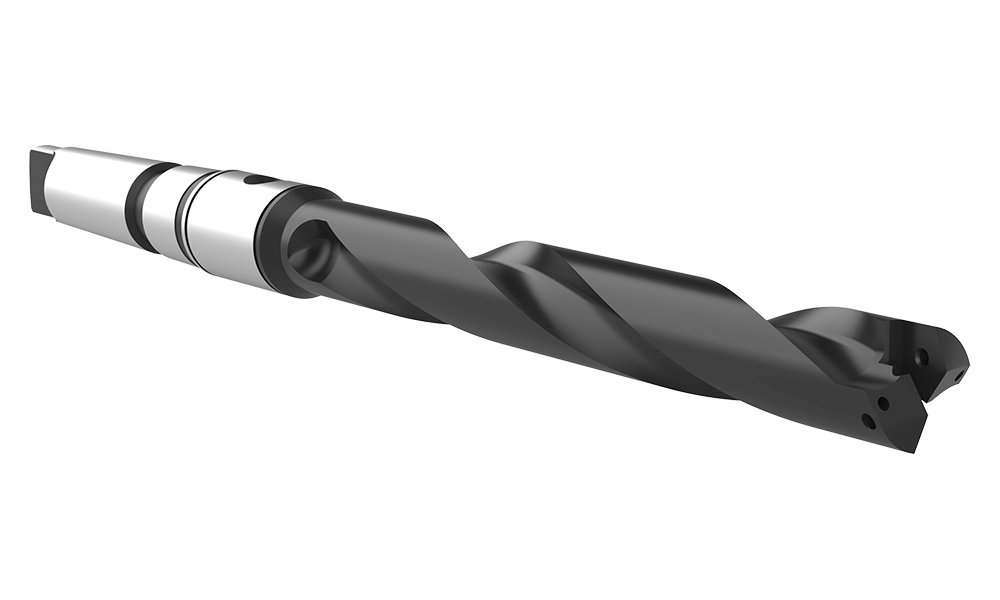

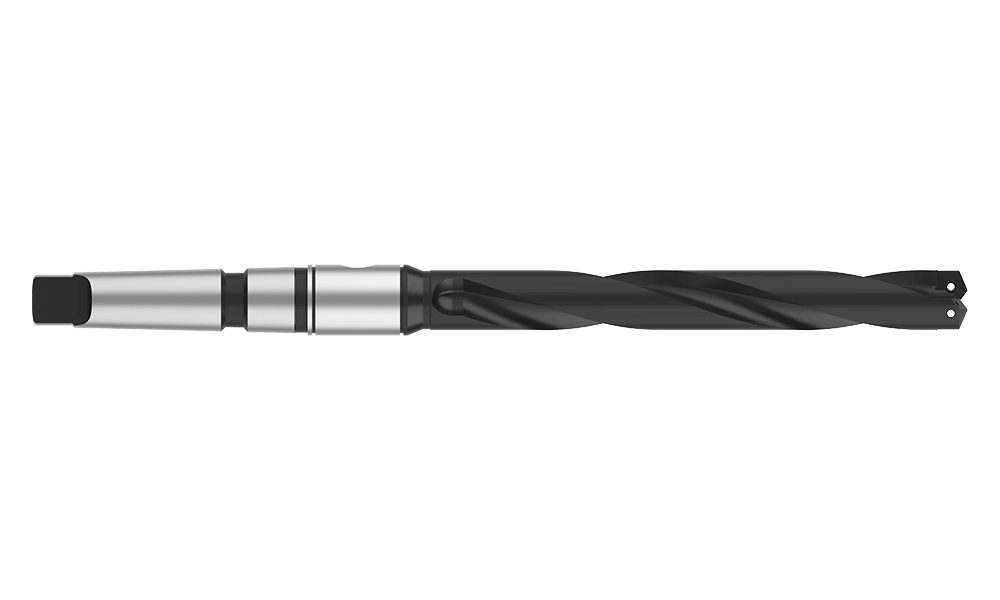

24015H-003M
#1.5 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Sub-Series.5
Minimum diameter mm21.83
Maximum diameter mm24.40
Length TypeStandard
Flute TypeHelical
Overall length mm334.2
Tool Reference Length mm244.0
Body length mm200.0
Drill depth mm183.4
Shank typeMorse Taper
Shank diameter mm#3 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
739-IP9-1     (Qty: 0)
Replacement T-A® Screw
1.5 KIT (1) TORX PLUS, CL 4H
8IP-9     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.71
CategoryStocked
