| Series | 1 |
| Sub-Series | .5 |
| Minimum diameter inch | 0.8594 |
| Maximum diameter inch | 0.9609 |
| Length Type | Standard |
| Flute Type | Helical |
| Overall length inch | 14.156 |
| Tool Reference Length inch | 9.671 |
| Body length inch | 7.875 |
| Drill depth inch | 7.219 |
| Shank type | Morse Taper |
| Shank diameter inch | #4 MT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | No |

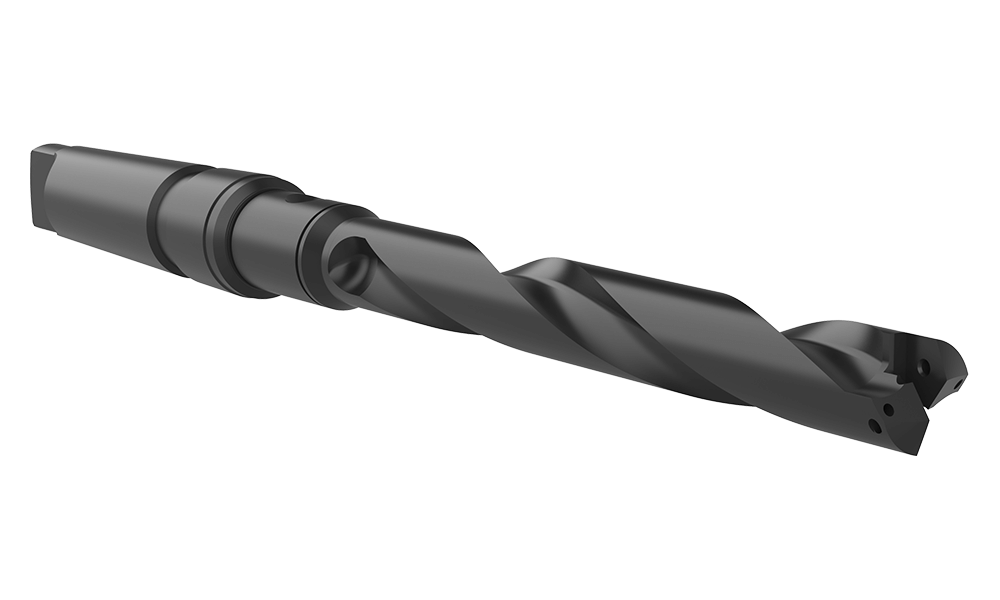

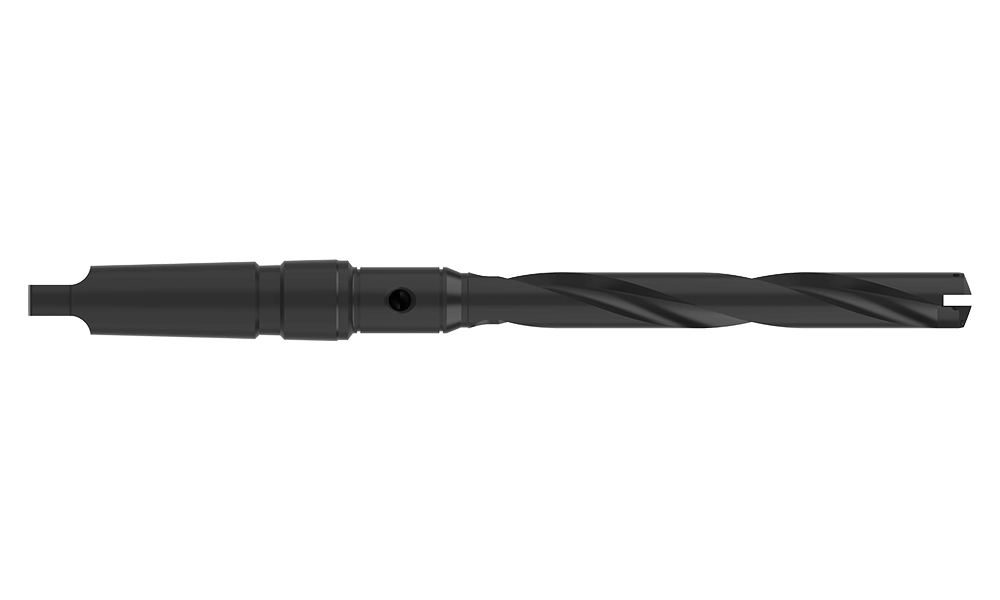

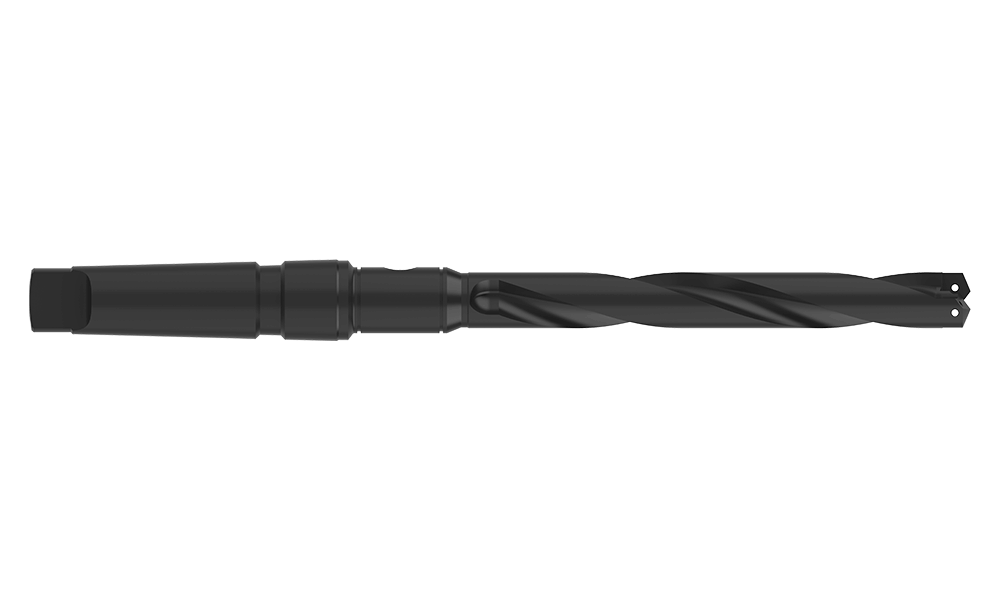

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
